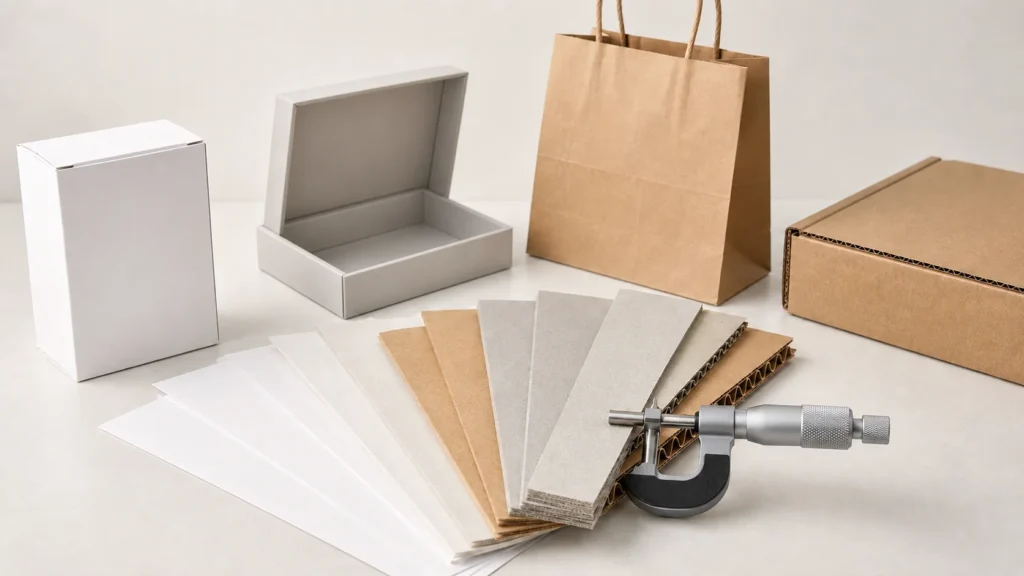

Paper weight and thickness are often written in ways that appear comparable but describe different properties. One packaging specification may state 350 GSM, another may refer to 16 PT, and a rigid box drawing may call for 2.0 mm greyboard. I have found that these figures can create unnecessary confusion when they are treated as direct equivalents. GSM measures material weight across one square meter, while PT, caliper, and millimeters measure physical thickness. The correct interpretation depends on the paper grade, density, fiber structure, coating, and packaging application.

Packaging paper weight is measured in GSM, while PT and caliper measure thickness; PT converts exactly to millimeters, but GSM-to-thickness values vary by paper grade, density, and coating, so use material-specific charts and verify the physical sample before production.

I do not see a paper weight chart as a simple conversion table. A folding carton board, paper bag paper, rigid box greyboard, wrapping paper, product insert, and corrugated board each use material measurements differently. A 350 GSM folding carton board cannot be compared directly with a 2.0 mm greyboard, and two boards with the same GSM may still have different calipers, stiffness, print surfaces, and folding behavior. The most useful chart explains these differences instead of hiding them behind one universal formula.

In this guide, I break down how GSM, PT, caliper, and millimeters apply to common packaging materials. I explain which conversions are exact, which values are only material-specific references, and why physical samples remain important when thickness, fit, folding, printing, finishing, or product protection matters. The goal is to make paper specifications easier to read, compare, and apply to real packaging decisions.

Paper Weight Chart for Packaging

I place this chart at the beginning of this guide because paper weight is usually searched as a practical packaging question rather than a purely technical one. A product box specification may say 350 GSM, a print file may refer to 16 PT, and a rigid box drawing may call for 1.5 mm greyboard. These terms can appear to describe the same thing, but they measure different properties and should not be compared without understanding the material behind them.

When I review paper and board specifications, I do not start by asking which number is higher. I start by asking what the material needs to do. A folding carton needs to print cleanly, crease accurately, hold its shape, and protect the product without becoming difficult to fold. A paper bag needs to carry weight without tearing around the handles or bottom folds. A rigid box needs a stable structural board and a wrapping paper that can fold neatly around the corners. A corrugated shipping box needs to resist compression and absorb handling pressure during transport. The correct material is therefore not determined by GSM, PT, or millimeters alone.

The chart below provides a practical reference for common paper-based packaging materials. I use these figures to identify a realistic starting range, not to create a universal conversion formula. The final choice should always be checked against the actual paper grade, the physical caliper of the selected stock, the packaging structure, and the performance expected from the finished pack.

Quick Paper Weight Chart for Common Packaging Materials

I use this chart to separate different packaging materials before comparing their weight or thickness. This is important because a 350 GSM folding carton board, a 350 GSM kraft paper, and a 350 GSM greyboard may all have different density, surface properties, flexibility, and structural performance. The values below should be read within the correct material category rather than across every row as if they were one direct conversion table.

Packaging Application	Common Material	Primary Measurement	Reference GSM	Reference PT or mm	Important Limitation
Folding cartons	SBS, FBB, CCNB, kraft paperboard	GSM and caliper	Typically 250–450 GSM	Approximately 10–24 PT or 0.25–0.60 mm, depending on grade and bulk	The same GSM can have a different caliper across paper grades
Paper bags	Kraft, coated paper, recycled paper or specialty paper	GSM	Typically 70–250 GSM	Caliper is usually not the primary specification	Strength also depends on bag size, gussets, handles and reinforcement
Rigid box structure	Greyboard or chipboard	Actual thickness in millimeters	Approximately 600–1,800 GSM as a secondary reference	Typically 1.0–3.0 mm	Density varies between greyboards, so GSM alone does not define thickness
Rigid box wrapping	Coated, uncoated or specialty paper	GSM	Typically 80–150 GSM	Optional caliper, depending on paper type	Wrapping performance depends on flexibility, coating and corner-folding behavior
Sleeves and inserts	Paperboard, kraft board or recycled board	GSM and caliper	Typically 250–400 GSM	Approximately 10–20 PT or 0.25–0.50 mm, depending on grade	Structural requirements vary according to the product and insert design
Corrugated packaging	Liner paper, corrugating medium and flute	Board construction	Total GSM is not sufficient on its own	Approximately 1.5–6.5 mm, depending on flute and wall construction	Strength cannot be judged by GSM or thickness alone

How I Use This Chart Before Comparing Materials

I use the chart as a way to ask better questions about a packaging material. If a folding carton is quoted at 350 GSM, I do not assume that it will behave like every other 350 GSM carton board. I look for the paper grade, the actual caliper, the board’s stiffness, the printing surface, and the way the carton will be creased and folded. These details explain whether the material is suitable for a small cosmetic box, a larger retail carton, a sleeve, or a product pack that needs more structural support.

I also avoid comparing materials that perform different jobs. A 1.5 mm greyboard is not simply a heavier version of folding carton board, because it is designed to form the rigid structure of a box rather than fold along a crease line. A 120 GSM wrapping paper is not selected for strength in the same way as a 120 GSM kraft bag paper, because the wrapping paper needs to cover surfaces smoothly and fold cleanly around edges. The numbers matter, but I find that their meaning becomes useful only after the material function is clear.

This approach prevents a common packaging mistake: selecting a material from a single number without considering how the material will be printed, converted, assembled, filled, handled, and transported. A chart can reduce uncertainty, but it cannot replace an understanding of the packaging application.

Folding Carton Paperboard Weight and Thickness

When I evaluate folding carton paperboard, I consider both GSM and caliper because a carton must balance visual presentation with structural performance. Folding cartons are commonly produced from SBS, folding boxboard, coated recycled paperboard, or kraft paperboard. These grades can all be used for retail packaging, but they do not have the same thickness, brightness, surface smoothness, fiber structure, or folding behavior.

A reference range of 250 to 450 GSM is common for many folding carton applications, but this range covers very different packaging needs. Lighter boards may be suitable for small lightweight products, inner cartons, sleeves, and products that do not place much pressure on the carton walls. Heavier boards may be appropriate for premium retail cartons, heavier cosmetic products, electronic accessories, or larger product boxes that need more rigidity. I still would not choose the board only by the product weight, because the box dimensions, structural design, locking method, product movement, and finishing requirements all influence the material decision.

Caliper becomes important when the board must create a particular visual and physical impression. A board with a higher caliper may feel more substantial, but it can also require a more carefully matched crease line and folding process. If the scoring depth is not suitable for the board thickness, the fold can crack, spring open, or lose its shape. I pay particular attention to this issue when a carton includes dark printing, matte lamination, soft-touch lamination, foil stamping, or high-coverage artwork, because surface finishes can make edge cracking more visible.

The same GSM can also produce different results across SBS, FBB, CCNB, and kraft paperboard. A denser board may be thinner but still feel firm, while a bulkier board may have more thickness at the same GSM but respond differently during folding. I therefore treat the GSM-to-PT relationship shown in a chart as a reference range for a particular type of board, not as a fixed equation for every paperboard available in the market.

Paper Bag GSM and Carrying Performance

When I look at paper bag materials, GSM is useful because it gives an initial indication of paper weight and body, but it does not define the finished bag’s carrying performance on its own. Paper bags may use white kraft paper, brown kraft paper, recycled kraft paper, coated paper, or specialty paper, and each material can react differently under load. A bag made from stronger kraft paper may perform well at a lower GSM than a bag made from a less suitable material at a higher GSM.

Paper bag materials often fall within a broad reference range of approximately 70 to 250 GSM. Lighter papers may be used for small retail bags, food bags, garment packaging, or lightweight promotional packaging. Heavier papers may be used where the bag needs more body, stronger presentation, or greater resistance around the base and handles. However, I do not interpret a higher GSM as an automatic guarantee that the bag can safely carry more weight.

The final strength of a paper bag also depends on the bag dimensions, side gussets, bottom gussets, handle style, handle reinforcement, adhesive quality, and the way the product weight is distributed inside the bag. A tall narrow bag can create different stress around the handles than a wide low bag carrying the same product weight. A paper bag with cotton rope handles, folded-paper handles, ribbon handles, or die-cut handles also needs different reinforcement methods. I therefore use GSM as one part of the specification, then consider the complete bag construction before deciding whether the material is appropriate.

Rigid Box Greyboard Thickness and Density

When I assess the structure of a rigid box, I focus first on greyboard thickness in millimeters. Greyboard, sometimes called chipboard, forms the core structure of a rigid box. It gives the box its shape, supports the product inside, and influences how substantial the finished package feels when it is opened and handled.

Rigid box greyboard commonly ranges from approximately 1.0 mm to 3.0 mm, although the correct thickness depends on the dimensions of the box, the product weight, the lid style, the insert design, and the level of rigidity required. A smaller jewellery box may not need the same board thickness as a large gift box, electronic-product box, or presentation set. I also consider the surface area of the box, because larger panels can flex more easily even when the product itself is not particularly heavy.

GSM can sometimes appear in greyboard specifications, but I treat it as secondary information. Two boards with similar GSM can have different density, which means they may have different physical thickness, stiffness, edge quality, and resistance to bending. A dense board may feel firm but have less caliper, while a bulkier board may be thicker at a similar weight. For rigid packaging, the actual board thickness and its physical behavior are more meaningful than a GSM figure alone.

I also separate greyboard selection from wrapping-paper selection. The greyboard determines the structure, while the wrapping paper determines the visible finish. A rigid box can have a strong greyboard core but still look uneven if the wrapping paper is not suitable for the surface, the corners, or the finishing process. This is why I do not treat a rigid box as one material specification.

Rigid Box Wrapping Paper Weight and Surface Performance

When I review rigid box wrapping paper, I focus less on structural strength and more on surface performance. Wrapping paper needs to cover the greyboard cleanly, fold around edges without excessive tension, receive printing accurately, and support finishes such as lamination, foil stamping, embossing, debossing, or spot UV. Common wrapping papers may range from approximately 80 to 150 GSM, but the best choice depends on how the paper behaves during wrapping rather than on GSM alone.

A very thin paper may be more flexible, but it can reveal adhesive marks, greyboard texture, or uneven surfaces beneath it. A much thicker paper may create a richer tactile feel, but it can become more difficult to fold tightly around corners, especially on small boxes or complex structures. I also consider whether the wrapping paper has a coated, uncoated, textured, metallic, or specialty surface, because each surface reacts differently to ink, adhesive, heat, pressure, and finishing tools.

The relationship between wrapping-paper GSM and finished-box quality is therefore not as simple as choosing the heaviest option available. I look at how the paper performs at the corners, around cut edges, beneath foil stamping, and across large flat panels. The paper should support the intended visual result without creating unnecessary difficulty during production.

Sleeves and Inserts Require Different Material Logic

When I compare sleeves and inserts, I first identify whether the component is decorative, functional, or structural. A printed sleeve may mainly provide branding, product information, and a stronger shelf appearance. A paperboard insert may need to position a product inside a box, prevent movement during shipping, or separate multiple components. These functions create different material requirements, even if the sleeve and insert are made from similar-looking paperboard.

Sleeves and inserts often use paperboard in the 250 to 400 GSM range, but the final requirement depends on the product shape, product weight, die-cut design, and amount of support needed. A simple sleeve around a lightweight carton may require only enough stiffness to hold its form and remain visually neat. An insert with multiple cut-outs, narrow support tabs, or heavy product contact points may need a board with more suitable caliper and structural resistance.

I also consider the relationship between the insert and the product. If an insert is too flexible, the product may move, tilt, or become damaged during transport. If the board is unnecessarily thick, it may reduce internal space, increase assembly difficulty, or create excessive pressure on the product. I therefore treat the paper weight chart as the first reference point, then confirm that the insert design works with the real product dimensions and movement requirements.

Corrugated Packaging Uses a Different Strength System

When I evaluate corrugated packaging, I do not rely on GSM or thickness alone because corrugated board is a layered construction. It contains liner paper and corrugating medium arranged around a fluted core. The flute structure creates the thickness and cushioning effect of the board, while the liner papers contribute to surface strength, stacking performance, and resistance to handling pressure.

Overall board thickness may range from approximately 1.5 mm for E-flute material to more than 6 mm for heavier double-wall constructions, but this range does not tell the whole story. An E-flute retail carton may be thin, clean-looking, and suitable for lightweight products or display packaging. A B-flute or C-flute box may provide more cushioning and strength for shipping. Double-wall constructions may be used when a product is heavier, more fragile, or expected to face greater stacking pressure.

I look beyond overall thickness to understand corrugated performance. Flute type, liner quality, medium quality, wall construction, edge crush strength, box compression strength, and product weight can all affect whether the carton performs safely in transit. Two corrugated boxes with similar total GSM may still behave differently if their flute profiles and liner combinations are different. For this reason, I treat corrugated specifications as a board-construction decision rather than a paper-weight conversion exercise.

Why GSM, PT, and Millimeters Cannot Always Be Converted Directly

I use exact conversions only when the units measure the same physical property. PT and millimeters are both thickness measurements, which means the relationship is mathematical and fixed. One point equals 0.001 inch, and one point equals 0.0254 mm. This conversion does not change according to the paper grade, color, coating, or manufacturer.

GSM is different because it measures mass per square meter rather than thickness. A paperboard with the same GSM can be more compact, more bulky, more heavily coated, more compressed, or made from different fibers. These characteristics can change the caliper without changing the GSM figure. This is why a statement such as “300 GSM always equals 12 PT” may be a useful rough reference for a particular compact board, but it should not be presented as an exact rule across every packaging material.

When I need to confirm thickness, I rely on the actual caliper of the selected stock rather than estimating it from GSM alone. When I need to confirm rigidity, I also consider how the board bends, folds, and supports the final packaging structure. The most accurate packaging decision comes from combining the material grade, GSM, measured caliper, structure, and physical sample performance.

Important Accuracy Note

I use the figures in this chart to establish a realistic material range and to make the next specification question clearer. They are not intended to replace a technical data sheet or physical material check. PT and millimeters can be converted mathematically, but GSM-to-PT and GSM-to-millimeter values remain approximate because paper weight and paper thickness describe different material properties.

Before treating a reference value as a final packaging specification, I confirm the paper grade, actual caliper, surface finish, stiffness, grain direction, and intended packaging function. This approach helps prevent the common mistake of selecting a material that appears correct on paper but performs differently once it has been printed, creased, folded, wrapped, assembled, or filled with the real product.

How to Read the Paper Weight Chart

I read a paper weight chart as a way to understand material behavior before making assumptions about packaging quality. The chart is not only about converting units. It is about understanding what the material will feel like, how it may print, how it may fold, how it may fit into a packaging structure, and whether the specification is detailed enough to describe the real paper or board being used.

A packaging specification can look clear while still leaving important questions unanswered. If I see “350 GSM paperboard,” I know the weight of one square meter of that board, but I do not yet know its actual thickness, stiffness, paper grade, grain direction, coating, or folding performance. If I see “16 PT,” I know the board thickness, but I still do not know whether it is a compact SBS board, a bulky folding boxboard, a recycled board, or a kraft board. This is why I read GSM, PT, and caliper together with the material type rather than treating any single figure as a complete packaging specification.

The purpose of this section is not to turn paper selection into a paper-manufacturing lesson. I focus on the information that changes real packaging decisions. I explain what each measurement means, where it is useful, where it can be misunderstood, and why the same GSM can result in different physical thicknesses across different paper and board grades.

What GSM Measures

I use GSM to understand the mass of a paper or paperboard sheet across a fixed area. GSM means grams per square meter, so a material described as 300 GSM weighs 300 grams for every square meter of that material. This metric system is widely used because it gives a consistent way to compare the weight of papers and boards, regardless of the sheet size supplied by a paper mill or printer.

When I see a higher GSM value, I know that the material contains more mass per square meter than a lower-GSM alternative. A 400 GSM board has more material per square meter than a 250 GSM board of the same grade. In many cases, this can contribute to a heavier feel, a more substantial appearance, and a stronger impression when the packaging is held in the hand. For retail cartons, gift packaging, paper bags, inserts, and sleeves, GSM often provides a useful first indication of whether the material is light, medium, or heavy for its intended application.

However, I do not assume that higher GSM automatically means thicker material. Weight and thickness are connected, but they are not identical. A dense, compact paperboard can have a relatively high GSM while remaining thinner than a bulkier board with the same weight. A folding boxboard with a more open fiber structure may feel thicker than a compact coated board at the same GSM. This is one of the most important reasons why a GSM number should not be used as a direct substitute for caliper.

I also do not use GSM alone to determine stiffness. A board can be heavy but still bend more easily than expected if its density, fiber structure, moisture condition, or grain direction is different from another board. Stiffness is related to material thickness and construction, but it is also affected by the way the fibers are arranged and how the board is manufactured. A heavier board may feel more substantial in the hand, yet a slightly lighter but bulkier board can sometimes provide better resistance to bending in a specific carton structure.

Compression strength is another property that GSM cannot confirm on its own. This is especially important for corrugated packaging, paper bags, and large cartons. A corrugated board may have a high total paper weight but still provide unsuitable stacking performance if its flute construction, liner quality, or compression characteristics are not appropriate. A paper bag may use heavier kraft paper but still fail near the handles or bottom if the gussets, adhesive, reinforcement, and folding design are weak.

When I evaluate folding performance, I also look beyond GSM. A carton board needs to be creased, folded, glued, and assembled into a consistent structure. The material must respond properly to the crease line and should not crack excessively along dark printed edges or laminated folds. A heavier GSM may increase body and visual quality, but it can also require a more carefully matched die-cutting and creasing setup. If the board is too thick for the crease rule or channel, the fold may resist closing or crack along the surface.

Packaging durability also depends on more than material weight. A product box can use a high-GSM board and still become damaged if it is oversized, poorly structured, repeatedly opened and closed, exposed to humidity, or packed without enough internal support. I treat GSM as one part of a wider material assessment. It gives me a reliable weight reference, but I still need to understand the board grade, caliper, structure, finish, and product requirements before deciding whether the material is suitable.

GSM as a Starting Point Rather Than a Final Answer

I find GSM most useful at the beginning of a material comparison. It allows me to place a paper or board into a realistic category before examining the more detailed specifications. A lightweight tissue paper, a paper bag material, a folding carton board, a rigid box wrapping paper, and a greyboard structure can all have GSM values, but they are not selected in the same way because they perform different packaging functions.

For example, a 250 GSM paperboard may be suitable for a small folding carton carrying a lightweight cosmetic item, but the same weight may be unsuitable for a large carton with a heavy glass product. The difference is not only the product weight. The box size, panel width, locking structure, insert design, shipping method, and expected retail presentation all affect the material requirement. I use the GSM figure to begin the discussion, then I consider how the board will perform in the actual structure.

If I compare two supplier specifications that both state 350 GSM, I do not conclude that the materials are identical. I want to know whether both specifications refer to the same paper grade, whether the caliper is similar, whether the printing surface is coated or uncoated, and whether the materials have comparable stiffness. This is the difference between comparing paper weight and comparing a complete packaging material specification.

What PT Measures

I use PT, or point, to understand the physical thickness of paperboard. PT is widely used in North America for carton board, cover stock, and packaging-related print materials. One point equals one thousandth of an inch, which means that a 16 PT board is 0.016 inch thick. This makes PT particularly useful when I need to compare how much physical depth a paperboard occupies in a folding carton, sleeve, insert, or layered packaging structure.

PT does not tell me how much a material weighs across one square meter. It tells me how thick the material is from one surface to the other. This is why PT can be more useful than GSM when the physical fit of the packaging matters. If a sleeve must slide over a carton, if an insert must fit precisely around a product, or if several folded panels need to meet cleanly at one edge, the actual thickness of the board can directly affect the final result.

The conversion between PT and inches is exact. One PT equals 0.001 inch, so 10 PT equals 0.010 inch, 14 PT equals 0.014 inch, and 20 PT equals 0.020 inch. The conversion between PT and millimeters is also exact because both are thickness units. One PT equals 0.0254 mm, which means that 14 PT equals 0.3556 mm and 20 PT equals 0.508 mm. I use this conversion when comparing North American packaging specifications with metric-based material data.

Although PT is a thickness measurement, I do not assume that a certain PT value always represents one exact GSM. A 16 PT board may be associated with a common GSM range for a particular compact carton board, but another material grade may reach 16 PT at a different GSM. A bulky FBB can have a different GSM-to-caliper relationship from a compact SBS board. A recycled board, kraft board, or coated board may also have a different relationship because its fiber structure and density are different.

When I see PT in a packaging specification, I consider whether thickness is the main concern. PT is highly relevant when the material needs to pass through a crease line, fit inside a rigid box, form a sleeve, or maintain a particular carton feel. It is less useful if I am trying to understand paper bag carrying strength or corrugated-box compression performance, because those applications depend on additional structural factors that thickness alone cannot describe.

PT and Folding Carton Performance

I pay close attention to PT when a folding carton requires precise scoring and folding. A thicker board may create a stronger visual impression, but it also needs an appropriate crease rule, crease channel, and folding direction. If the board thickness is not considered during die-cutting, the carton may show edge cracking, spring-back, uneven folds, or difficulty closing the tuck-end panels.

This becomes especially important when the carton has dark artwork, full ink coverage, foil stamping, lamination, soft-touch coating, or a high-contrast design near the fold line. The thicker the board and the more finished the surface, the more carefully the creasing and folding process must be controlled. I do not use PT to decide whether a carton is “better,” but I use it to understand what the production process must accommodate.

What Caliper Means

I use caliper to describe the actual measured thickness of a paper or paperboard sample. Caliper is not a separate type of paper weight. It is the physical thickness of the material, measured directly from one surface to the other. It may be expressed in points, inches, millimeters, microns, or thousandths of an inch, depending on the specification system being used.

In packaging work, caliper is often the most meaningful measurement when the physical dimensions of a material affect the structure. A folding carton with multiple folded panels can become noticeably thicker at its glued side seam or tuck-end area. A sleeve must be designed with enough allowance to slide over the box without becoming too loose or too tight. A paperboard insert must fit around the actual product and maintain its shape during assembly. A rigid box needs greyboard with the correct caliper so that the lid, base, shoulder, and wrapped edges align properly.

When I check caliper, I want to know the thickness of the actual material rather than an estimated thickness based on GSM. A thickness gauge or micrometer can measure the selected board directly. Multiple readings across a sheet can show whether the material is consistent, particularly when the board is used for precise structures or when different batches may vary slightly. This is more reliable than assuming that every material at a certain GSM will have the same physical depth.

Caliper can also influence the visual quality of a package. A higher-caliper carton board can create a more substantial feel, but it can also change how the carton folds, how the edges meet, and how much pressure is needed during assembly. A lower-caliper board may be easier to fold and more suitable for a compact structure, but it may not provide the same sense of rigidity. I use caliper to understand these practical trade-offs rather than treating it as a simple indicator of quality.

Caliper Is Not Another Name for GSM

I keep GSM and caliper separate because each measurement describes a different property. GSM tells me the mass of a material across one square meter. Caliper tells me its physical thickness. A paperboard can have a high GSM and a low caliper if it is dense, while another board can have the same GSM and a higher caliper if it is bulkier.

This difference matters when the packaging needs a precise fit or a consistent physical feel. A carton designed for a compact 16 PT board may not behave exactly the same way if the selected board has the same GSM but a higher caliper. The creases may need adjustment, the folds may become tighter, and the finished dimensions may change slightly. I therefore use actual caliper data when thickness affects the structural design.

Which Conversions Are Exact?

I separate exact conversions from approximate material relationships because this helps prevent one of the most common misunderstandings in paper weight charts. PT, inches, and millimeters measure the same physical property, which is thickness. GSM measures a different property, which is mass per unit area. The difference may sound technical, but it has a direct effect on how accurately a packaging material can be specified.

Conversion	Accuracy
PT to inches	Exact
PT to millimeters	Exact
GSM to PT	Approximate and material-dependent
GSM to millimeters	Approximate and material-dependent
GSM to pounds	Depends on paper category and basis size

When I convert PT to inches, I use an exact mathematical relationship. A 12 PT board is always 0.012 inch thick, and an 18 PT board is always 0.018 inch thick. The same principle applies to millimeters. A 12 PT board equals 0.3048 mm, while an 18 PT board equals 0.4572 mm. The result does not change because the conversion is simply changing the unit used to describe the same thickness.

GSM-to-PT and GSM-to-millimeter relationships are different. A chart may show that a typical compact carton board around 300 GSM is often associated with a certain PT or millimeter range, but the result can change with paper grade, density, coating, fiber blend, and board bulk. I use these relationships as useful reference points when reviewing general material options, but I do not use them as final specifications for a production order.

GSM-to-pounds conversions also need context. In some markets, pounds may refer to text weight, cover weight, Bristol weight, or another basis-weight category. The value can depend on the standard sheet size used for that specific paper category. A pound figure is therefore not meaningful by itself unless the grade and basis size are known. I do not compare a pound value with GSM until I understand exactly which paper category is being referenced.

Why Approximate Conversions Still Have Value

I still find approximate GSM-to-PT and GSM-to-millimeter ranges useful when they are presented honestly. They can help identify whether a material is likely to be lightweight, medium-weight, or heavy for a particular packaging application. They can also help readers understand why a supplier may describe a folding carton board in GSM while a North American print specification describes a similar board in points.

The problem is not approximation itself. The problem occurs when an approximate reference range is presented as an exact material identity. I use the chart to narrow the expected range, then I rely on the selected paper grade and actual caliper to confirm the final material. This gives the reader useful guidance without creating a false expectation that every paperboard follows the same conversion rule.

Why the Same GSM Can Have Different Thicknesses

I consider this the most important part of reading a paper weight chart correctly. Two materials can have exactly the same GSM and still have different thicknesses, different stiffness, different folding behavior, and different surface characteristics. This variation is normal because paper and paperboard are made from different fibers, processed in different ways, and designed for different applications.

Fiber composition has a major effect on the final structure of paperboard. Some materials use fibers that create a more compact sheet, while others create a bulkier structure with more internal air. A bulkier board may have a higher caliper at the same GSM, which can make it feel thicker and potentially more substantial. A denser board may have a lower caliper but still feel firm because its fibers are tightly compressed.

Paperboard density is closely connected to this difference. Density describes how much material is packed into a given thickness. A dense board can contain more material in a thinner sheet, while a bulky board may spread the same material weight across a greater thickness. When I compare materials with the same GSM, I pay attention to density because it helps explain why the boards may not fold, print, or feel the same.

Recycled content can also affect thickness and surface behavior. Recycled fibers may produce a board with a different bulk, color, smoothness, and stiffness compared with a board made primarily from virgin fibers. This does not make recycled board unsuitable. It simply means that I do not assume a recycled board at a specific GSM will have the same caliper or printing surface as an SBS or FBB board at the same GSM.

Surface coating changes the relationship between material weight and performance as well. Coated paperboard may have additional layers that improve smoothness, brightness, print reproduction, and surface uniformity. The coating can add weight and influence the surface feel, but it may not change caliper in the same way as a bulkier fiber structure. A coated board can therefore have a different GSM-to-thickness relationship from an uncoated board, even when both are used for similar packaging formats.

Compression during manufacturing can further change caliper. Paperboard is formed, pressed, dried, and finished through processes that can make the material more compact. A more compressed board may be thinner and denser at the same GSM. Calendering can smooth and compress the paper surface even further. This may improve print smoothness and create a refined finish, but it can also reduce bulk and change the way the board responds to folding and creasing.

Moisture condition can create small but meaningful changes in paper-based materials. Paper and board can absorb or release moisture depending on storage conditions and humidity levels. This can affect flatness, stiffness, dimensional stability, and the way a board behaves during converting. I pay attention to this issue when the packaging must remain consistent across different climates, especially when a carton includes tight fits, large panels, highly detailed printing, or demanding finishing work.

For these reasons, I never use the phrase “same GSM means same material.” GSM is an important part of the specification, but it does not describe the complete physical character of a paper or board. When thickness matters, I check caliper. When structural performance matters, I consider stiffness, structure, and actual product use. When print and finish quality matter, I consider the paper grade, coating, surface, and folding requirements. Reading the chart in this way turns it from a simple conversion reference into a more reliable packaging decision tool.

Folding Carton Paperboard Weight and Thickness Chart

I treat folding carton paperboard as a separate packaging material category because the board has to perform several jobs at the same time. It is not only the visible surface that carries the brand artwork. It also has to pass through printing, die-cutting, creasing, folding, gluing, filling, packing, and handling without losing its intended shape or visual quality. A carton can look correct as a flat printed sheet but still fail when it is folded if the board grade, caliper, crease setting, or carton structure has not been considered properly.

When I compare folding carton materials, I do not begin by asking whether 300 GSM, 350 GSM, or 400 GSM is the best option. I begin by identifying the paperboard grade and the purpose of the carton. A small cosmetic carton, a large apparel box, a food carton, a premium gift sleeve, and an electronics accessory box can all use folding paperboard, but they do not need the same surface, stiffness, caliper, or folding behavior. The material must match the packaging structure, product weight, visual direction, printing requirements, and handling conditions.

The chart in this section provides material-specific reference ranges for common folding carton boards. I use these ranges to understand the likely relationship between GSM, caliper, and PT within each board family. I do not use them as fixed production values, because paper mill specifications, coating weights, fiber composition, board bulk, moisture condition, and manufacturing processes can all affect the final caliper and stiffness of the selected stock.

Folding Carton Paperboard Weight and Thickness Reference Chart

I read this chart by following one paperboard grade across the row. The GSM, caliper, and PT values should be interpreted as typical ranges for that grade, not as one universal conversion system for all carton board. When a carton has tight fitting requirements, complex folds, premium finishing, or a structure that depends on stiffness, I would always confirm the exact caliper and physical properties of the selected material before treating a reference value as the final specification.

Paperboard Grade	Typical GSM Range	Typical Caliper Range	Approximate PT Range	Common Packaging Application	Important Performance Note
SBS or C1S paperboard	250–450 GSM	Approximately 0.30–0.50 mm	Approximately 12–20 PT	Cosmetics, skincare, pharmaceuticals, food cartons, premium retail packaging and product boxes	Smooth printable surface and clean visual presentation, but heavier calipers need correctly matched creasing and folding
C2S paperboard	250–400 GSM	Approximately 0.30–0.48 mm	Approximately 12–19 PT	Double-sided printed sleeves, inserts, cards, display pieces and cartons with visible interiors	Both sides can support print, but glue areas, crease behavior and coating compatibility need attention
Folding boxboard or FBB	250–400 GSM	Approximately 0.36–0.60 mm	Approximately 14–24 PT	Cosmetics, confectionery, personal care, gift cartons, premium folding boxes and retail packaging	Often provides useful bulk and carton body at a similar GSM, although folding behavior varies by grade
Coated recycled paperboard or CCNB	250–400 GSM	Approximately 0.38–0.60 mm	Approximately 15–24 PT	General retail cartons, household products, promotional boxes, secondary packaging and cost-sensitive projects	Can provide useful thickness, but surface quality, reverse-side appearance and edge performance should be checked
Natural kraft paperboard	250–400 GSM	Approximately 0.34–0.55 mm	Approximately 13–22 PT	Apparel boxes, natural-product cartons, paper sleeves, food packaging and kraft-style retail packaging	The natural fiber surface affects color reproduction, folding appearance and finish selection

Understanding Paperboard Grade Before Comparing GSM

I consider the paperboard grade the first piece of information that gives a GSM value context. GSM tells me how much the board weighs over one square meter, but it does not tell me how the board was constructed. The board may be made from virgin bleached fibers, recycled fibers, unbleached kraft fibers, or multiple layers designed to create a particular balance of thickness, stiffness, printability, and cost.

This distinction matters because different paperboard grades are designed for different packaging priorities. Some boards are chosen for a bright white print surface and strong color reproduction. Some are selected for higher bulk and rigidity at a given GSM. Some are chosen for a natural kraft appearance. Others are used because recycled fibers can support a particular packaging requirement or visual direction. The same GSM can therefore mean very different things once the board grade changes.

I also separate fiber-grade descriptions from coating descriptions. SBS describes a type of virgin-fiber paperboard, while C1S means coated one side and C2S means coated two sides. An SBS board may be C1S or C2S, but the terms do not mean exactly the same thing. One describes the board’s fiber construction and the other describes the coating arrangement. When I read a specification, I look for both details because a board’s fiber structure and its surface coating can influence printing, folding, gluing, stiffness, and caliper.

SBS and C1S Paperboard Weight and Thickness

I use SBS, or solid bleached sulfate, as a common reference for premium folding cartons because it is widely associated with a clean white surface, reliable printing performance, and a refined retail appearance. SBS is commonly made from virgin bleached fibers, which can provide a bright base for color reproduction, fine text, detailed graphics, foil stamping, embossing, and other finish-sensitive packaging designs.

C1S means that one side of the board is coated. In many folding carton applications, the coated side becomes the main exterior print surface, while the reverse side remains uncoated or less coated. This arrangement can be practical for cartons where the outside must carry the primary brand presentation and the interior does not require the same level of print detail. I still check the reverse side carefully if it will be visible when the carton is opened or if internal copy, product instructions, or a secondary design element will be printed there.

SBS and C1S paperboards commonly appear in the 250 to 450 GSM range for folding carton applications. A lighter grade may suit compact cartons, small beauty products, lightweight accessories, sleeves, or products that do not place much pressure on the carton walls. A heavier grade may be more appropriate for larger cosmetic cartons, premium skincare packaging, electronics accessories, product kits, or retail boxes that need more body and a stronger hand feel.

I do not interpret a higher GSM SBS board as automatically better. A higher-GSM board can increase body and physical presence, but it can also make creasing and folding more demanding. When a carton includes dark solid colors, black printing, full-coverage artwork, matte lamination, soft-touch lamination, foil stamping, or embossing near the fold line, the crease design becomes particularly important. The board may have an excellent print surface, but the finished carton can still show cracking if the material caliper, grain direction, crease rule, and folding process are not matched properly.

I also consider carton size when selecting SBS or C1S board. A small carton can often look premium with a moderate GSM because its short panels naturally resist bending. A larger carton with wide front panels, a tall structure, or a heavier product may need greater caliper or stiffness to avoid bowing, opening, or losing its shape. I therefore look at the board together with the box dimensions rather than selecting the material only from a standard GSM range.

C2S Paperboard Weight and Thickness

I use C2S paperboard when both sides of the material need a clean and consistent print surface. C2S means coated two sides, which can be useful for packaging sleeves, inserts, cards, display components, folded promotional pieces, and cartons where the interior remains visible after opening. A C2S board can create a more refined presentation when both the outside and inside of the packaging need to support artwork, color, product information, or a coordinated visual design.

The coating on both sides can improve print smoothness and color reproduction, but it also creates production considerations. When I work with a double-coated board, I think about where glue will be applied, how the material will fold, whether the carton includes heavy ink coverage, and whether the inside surface needs special finishing. Adhesive behavior can differ on coated surfaces, so glue areas may require careful preparation or suitable adhesive selection to maintain reliable carton assembly.

C2S paperboard is often used within a similar GSM and caliper range to other premium carton boards, but I do not assume that C2S automatically has the same thickness or stiffness as SBS or FBB at the same GSM. The board construction beneath the coating still matters. A double-coated board may have a smooth and polished visual appearance, but the physical performance of the finished carton depends on the grade, bulk, fiber structure, and crease design.

I pay particular attention to C2S board when the carton has visible interior panels, reverse-side printing, or design elements that continue from the exterior to the inside. A material that looks strong on the outside but appears inconsistent or poorly printed inside can reduce the overall packaging experience. I therefore treat C2S as a useful choice for projects that need visual consistency on both sides of the paperboard, while still checking its folding, gluing, and finishing behavior on the actual selected stock.

Folding Boxboard Weight, Bulk, and Carton Body

I use folding boxboard, commonly called FBB, when the packaging needs a balance between print quality, stiffness, bulk, and efficient material weight. FBB is often constructed as a multi-layer board, which can create a relatively high caliper compared with a more compact board of the same GSM. This means that an FBB carton may feel thicker or more substantial even when the material weight is not dramatically higher.

The bulk of FBB can be particularly useful for premium folding cartons, cosmetics, confectionery, gift packaging, personal care products, and retail boxes where the carton needs to look refined while still maintaining shape. A board with higher bulk can create stronger visual presence on a shelf, give the carton more body in the hand, and support a more substantial opening experience without simply increasing the material weight to the highest possible level.

However, I do not treat bulk as the same thing as strength. A bulkier board may have a higher caliper, but the carton still needs suitable stiffness in the correct direction, reliable score lines, and a structure that matches the product. A wide carton panel may need additional support even when the board is thick. A small carton with narrow locking tabs may require a board that folds accurately rather than one that is simply bulkier. I look at the board’s physical behavior in the actual carton shape instead of assuming that more thickness solves every structural issue.

When I compare FBB with SBS at the same GSM, I expect that the caliper and tactile feel may differ. The FBB may provide more bulk, while the SBS may provide a denser feel and a different print surface. Neither grade is automatically superior. The right choice depends on the visual requirement, the carton structure, the product weight, the finish, and the desired balance between material body and folding precision.

Coated Recycled Paperboard and CCNB Characteristics

I treat coated recycled paperboard, often referred to as CCNB or clay-coated news back, as a distinct material because its fiber composition and surface structure differ from virgin-fiber boards. It is commonly used for general retail cartons, household products, promotional packaging, secondary packaging, and projects where material efficiency and board bulk are part of the material decision.

A coated recycled board may provide a useful caliper at a given GSM, but I do not assume that it will match the print surface, reverse-side appearance, stiffness, or edge quality of SBS or FBB. The coated print side can support graphics, but the reverse side may have a different color, texture, or fiber appearance. This may be suitable for many packaging applications, particularly when the inside of the carton is not highly visible, but it should be considered carefully when the packaging is designed to reveal internal panels or when the brand requires a uniform white interior.

I also consider how the material behaves at cut edges and crease lines. Recycled board can have different fiber behavior from virgin board, and this may affect the way the carton looks after die-cutting or folding. If the artwork uses deep colors near the folds, if the carton has fine locking tabs, or if the structure includes multiple reverse folds, I would pay close attention to how the selected board behaves on a physical sample.

The value of recycled board is not defined only by its GSM or caliper. It should be evaluated according to the complete packaging requirement. A carton may need a material that provides sufficient thickness, an acceptable print surface, suitable stiffness, and a finished appearance that fits the intended product category. I find that the correct way to compare recycled board is to compare its actual properties and finished-carton performance rather than assume it is equivalent to a virgin board with the same GSM.

Natural Kraft Paperboard Weight and Surface Performance

I use natural kraft paperboard when the packaging design needs an unbleached brown surface, visible fiber character, or a more material-led appearance. Kraft paperboard is commonly used for apparel packaging, natural-product cartons, food packaging, stationery, lifestyle products, sleeves, and retail boxes where the paper itself forms part of the visual identity.

The natural brown base of kraft board changes the way printing behaves. Colors do not appear in the same way on kraft as they do on bright white SBS or FBB. Pale colors, soft pastels, and fine tonal variations can appear more muted because the brown surface influences the printed result. When a design requires bright white elements, strong color contrast, or precise brand colors, I consider whether white ink, an underprint, or a different material approach is needed to achieve the intended appearance.

Kraft paperboard can also have a different relationship between GSM, caliper, and stiffness. At the same GSM, a natural kraft board may not have the same thickness or surface smoothness as a coated carton board. Its natural texture can create a tactile and authentic appearance, but it may also influence fine-detail printing, foil stamping, lamination, and fold-line visibility. I treat these characteristics as part of the design language rather than as secondary details.

When I select kraft board for a folding carton, I also look carefully at the carton structure. A simple tuck-end carton, sleeve, tray, or apparel box may work very well with kraft board. A highly complex carton with many tight folds, very small tabs, or heavy premium finishes may require more careful material testing. The best result comes when the natural material character, carton structure, print design, and intended product category all support the same direction.

A 300 GSM Comparison Across Common Folding Carton Grades

I find that comparing the same GSM across different grades is one of the clearest ways to understand why paperboard cannot be selected by weight alone. The figures below are broad material references rather than fixed conversion values. They show how the same nominal GSM can produce different thickness ranges depending on the board’s density, construction, fiber composition, and coating.

Paperboard Grade at Approximately 300 GSM	Typical Reference Caliper	Approximate PT	What I Would Expect to Differ
SBS or C1S paperboard	Approximately 0.34–0.40 mm	Approximately 13–16 PT	Smoothness, brightness, print precision and compact board feel
C2S paperboard	Approximately 0.34–0.41 mm	Approximately 13–16 PT	Double-sided print surface, coating behavior and glue-area considerations
FBB	Approximately 0.40–0.48 mm	Approximately 16–19 PT	Higher bulk, more carton body and a different stiffness-to-weight relationship
Coated recycled paperboard or CCNB	Approximately 0.42–0.52 mm	Approximately 17–20 PT	Bulk, reverse-side appearance, edge behavior and surface consistency
Natural kraft paperboard	Approximately 0.36–0.45 mm	Approximately 14–18 PT	Natural color, fiber texture, print appearance and fold-line character

When I compare these materials, I do not read the table as proof that one board is stronger because it has a higher caliper. A thicker board may create more carton body, but its stiffness, fold response, surface quality, and structural suitability can still differ. The comparison simply shows why a 300 GSM value cannot identify one universal thickness or one universal carton performance level.

This is particularly important when a packaging drawing, quotation, or sample describes only the GSM. If the carton requires a precise sleeve fit, a specific premium feel, reliable reverse folds, or a controlled result across multiple SKUs, the paperboard grade and actual caliper should be confirmed. The chart can narrow the reference range, but the selected material provides the final answer.

How Board Bulk Changes Carton Thickness

I use the term board bulk to describe how much thickness a material provides relative to its weight. A bulkier board can have a higher caliper at the same GSM because its fiber structure occupies more space. A denser or more compact board can have a lower caliper at the same GSM because the fibers are packed more tightly together.

Board bulk affects the physical feel of a carton. A bulkier board may create a thicker, softer, or more substantial hand feel, which can be useful for premium retail cartons, gift packaging, and presentation-focused products. It may also give larger carton panels more visual body. However, extra bulk can affect crease behavior, folding resistance, glued seam thickness, sleeve fit, and the way multiple folded panels meet inside the finished box.

A compact board can be thinner at the same GSM, but this does not mean it is less suitable. It may provide a clean print surface, crisp die-cut edges, controlled folds, and a dense premium feel. I do not judge a board by bulk alone. I consider whether the combination of GSM, caliper, stiffness, folding behavior, and surface finish matches the carton’s structural and visual role.

Why Caliper and Stiffness Must Be Considered Together

I consider caliper and stiffness together because thickness by itself cannot fully explain how a folding carton will perform. Caliper tells me the physical thickness of the board. Stiffness tells me how strongly the board resists bending. These properties are related, but they are not identical. A thicker board can create a more substantial carton, yet another board with a similar caliper may resist bending differently because its density, fiber orientation, and construction are different.

This distinction becomes important when a carton has large panels, tall side walls, a heavy product, or an opening structure that must remain stable through repeated use. A carton with broad front and back panels may need sufficient stiffness to avoid bowing. A sleeve may need enough resistance to maintain a clean shape around an inner box. A product insert may need to hold an item securely without collapsing around cut-out areas. In each of these situations, I look beyond the GSM and ask how the selected board behaves in the actual structure.

I also consider grain direction because paper fibers generally align more strongly in one direction during manufacturing. This can influence how the board bends, how easily it folds, and how it responds at a crease line. A board may feel stiffer in one direction than the other, which matters when the carton has long panels, deep scores, or folds that must close smoothly. I treat grain direction as part of the material decision whenever carton precision and folding quality are important.

Why One Universal GSM-to-PT Formula Cannot Cover Every Grade

I avoid universal GSM-to-PT formulas because they suggest a level of accuracy that paperboard does not always provide. A formula may be reasonably close for one compact board family, but it cannot represent every SBS, C1S, C2S, FBB, recycled board, or kraft board. Each grade can have a different density, fiber structure, coating weight, bulk level, and manufacturing process.

For example, a formula that treats 300 GSM as one fixed PT value may work as a rough reference for a compact SBS board, but it may underestimate the caliper of a bulkier FBB or coated recycled board. It may also fail to describe the folding response, stiffness, surface smoothness, and visual quality of the final carton. The result can be a carton that looks different from the expected sample, fits differently into a sleeve, or requires a different crease setting than originally assumed.

I use GSM-to-PT relationships as a way to estimate a likely range, not as a final material identity. The most reliable folding carton specification includes the paperboard grade, GSM, actual caliper, coating arrangement, grain direction, and intended use. When the carton includes complex structures, close-fitting sleeves, heavy product loads, detailed finishing, or high visual expectations, I consider a physical material sample essential.

Reading the Chart as a Folding Carton Decision Tool

I use the folding carton chart to move from a broad material question to a more precise structural decision. The chart helps me understand whether a board is likely to be light, medium, or heavy for the carton type. It also helps me see whether two material specifications that look similar on paper may actually create different thickness, stiffness, or surface results.

I do not use the chart to replace the physical realities of packaging production. A folding carton is not only a flat board measured in GSM or PT. It is a finished structure that must print, crease, fold, glue, hold the product, and maintain its intended appearance. The correct material choice comes from reading the chart alongside the paperboard grade, carton design, product dimensions, product weight, finish requirements, and actual material sample.

When I use the chart in this way, it becomes more than a conversion reference. It becomes a practical guide for understanding why one paperboard may produce a clean, stable, premium carton while another board with the same GSM may create a different result entirely.

Paper Bag GSM Chart

I treat paper bags as a separate material category because bag performance is not judged in the same way as folding carton performance. A carton usually relies on its panels, crease lines, locking structure, and paperboard stiffness to hold its form. A paper bag must carry weight through a different system. Its performance depends on the paper itself, but also on the bag dimensions, side gussets, bottom gussets, handle type, handle attachment, adhesive areas, reinforcement pieces, product distribution, and the conditions in which the bag will be used.

When I review a paper bag specification, GSM gives me an initial understanding of the paper weight, body, and likely material direction. It helps me distinguish between a lighter paper intended for small retail items and a heavier paper intended for larger shopping bags or more demanding product loads. However, I never treat GSM as a direct carrying-capacity rating. A 150 GSM paper bag can perform very differently from another 150 GSM bag if the dimensions, handles, bottom construction, and paper grade are different.

The chart below provides common GSM reference ranges for white kraft paper, brown kraft paper, recycled kraft paper, coated paper, and specialty or textured paper. These ranges are useful for comparing material directions, but the final bag specification should always reflect the actual product weight, bag size, intended carrying method, product category, retail environment, and exposure to moisture or repeated use.

Paper Bag GSM Reference Chart

I use this chart as a starting point for understanding the relationship between paper type, typical GSM range, printing behavior, and bag construction. The values are material references rather than guaranteed performance ratings. A paper bag should never be selected from GSM alone because the bag’s strength comes from the complete structure, not only from the weight of the paper.

Paper Type	Typical GSM Range	Common Bag Application	Printing Characteristics	Construction Considerations
White kraft paper	Approximately 100–250 GSM	Retail shopping bags, beauty packaging, apparel bags, gift bags and branded takeaway bags	Supports clear printing and can provide a cleaner base for brand colors than brown kraft	Handle reinforcement, bottom strength and gusset dimensions remain essential for carrying performance
Brown kraft paper	Approximately 80–250 GSM	Grocery bags, food bags, apparel bags, natural-product packaging, retail carriers and shipping-style paper bags	Natural brown base affects color appearance and may require white ink for stronger contrast	Paper strength, handle type, bottom folds and moisture exposure should be considered together
Recycled kraft paper	Approximately 90–220 GSM	Retail bags, promotional bags, lightweight shopping bags and packaging with a recycled-paper appearance	Surface tone, texture and print consistency can vary according to recycled fiber content	Actual strength, tear resistance and handle reinforcement should be checked on the selected stock
Coated paper	Approximately 120–250 GSM	Premium shopping bags, cosmetics bags, fragrance bags, gift bags and high-visibility retail packaging	Smooth surface supports detailed graphics, color reproduction and finishing effects	Coating, lamination, handle attachment and edge folding need careful production control
Specialty or textured paper	Approximately 120–250 GSM	Luxury gift bags, boutique packaging, fashion bags, jewellery bags and presentation-focused retail bags	Texture, metallic effects or specialty surfaces can create a distinctive visual result	Paper flexibility, creasing, handle attachment and surface durability should be tested on the chosen material

How I Read a Paper Bag GSM Chart

I read a paper bag GSM chart differently from a folding carton chart because the bag is a load-bearing structure with open edges, folded bottom panels, and a handle system. A carton can sometimes gain support from its closed structure and internal product fit, while a paper bag often transfers product weight directly through the handles, side panels, and bottom folds. This means that the same GSM can lead to very different results depending on how the bag is built.

When I see a paper bag described as 120 GSM, 150 GSM, or 200 GSM, I do not immediately decide whether it is strong enough. I first consider the bag dimensions. A small flat bag carrying a lightweight accessory may work well with a lower GSM material. A large shopping bag carrying several boxed products may need heavier paper, wider gussets, stronger handles, reinforced handle patches, and a more stable bottom. The paper weight is important, but the structure determines how the weight is transferred through the bag.

I also consider how the bag will be used. A bag that is carried briefly from a retail counter to a vehicle faces different demands from a bag used repeatedly for daily shopping, gift presentation, event distribution, or product delivery. A bag intended to carry a single lightweight garment may not need the same reinforcement as a bag intended to carry several glass bottles, a large cosmetic gift set, or multiple boxed products. I use GSM to establish the material starting point, then I assess the full carrying situation.

White Kraft Paper GSM and Bag Performance

I use white kraft paper when the bag needs a cleaner and brighter base than natural brown kraft while still retaining the practical characteristics associated with kraft-style paper. White kraft paper can be suitable for retail shopping bags, beauty-product packaging, apparel bags, gift bags, boutique packaging, and branded takeaway bags. It can support a more refined printed appearance than brown kraft, especially when the design includes light colors, pastel shades, detailed illustrations, or brand colors that need a cleaner base.

White kraft paper commonly falls within a broad range of approximately 100 to 250 GSM for paper bag applications. Lower weights may be used for smaller bags, lightweight products, food packaging, or retail bags with limited carrying demands. Medium-weight ranges may be suitable for standard shopping bags, apparel bags, small gift bags, and many cosmetic retail bags. Higher weights may be considered when the bag is larger, carries heavier products, requires a more premium feel, or needs to support stronger handle construction.

I do not assume that white kraft paper at a higher GSM automatically creates a stronger bag. The paper may have more body, but the bag can still fail if the handles are poorly attached, if the bottom gusset is too shallow, or if the product weight is concentrated in a small area. A tall narrow bag can pull strongly at the handles, while a wide bag may place more pressure on the bottom panel. I look at the entire bag geometry before deciding whether the paper weight is appropriate.

White kraft also needs to be considered in relation to print coverage and finishing. A light printed design may work well directly on the paper surface, while a design with heavy dark coverage, large solid-color areas, or premium finishing may need additional attention to avoid surface scuffing or inconsistent appearance. I consider the paper weight, surface texture, print coverage, and intended handling conditions together rather than treating the material as a blank white equivalent of coated paper.

Brown Kraft Paper GSM and Natural Surface Behavior

I use brown kraft paper when the natural color and fiber character of the paper are part of the packaging design. Brown kraft is commonly used for grocery bags, food packaging, apparel bags, lifestyle products, natural-product packaging, retail carriers, and packaging that needs a more material-led appearance. The visible brown base can create a warm, practical, and tactile result, but it also changes the way printed colors appear.

Brown kraft paper commonly ranges from approximately 80 to 250 GSM depending on the bag type and carrying requirement. Lower GSM brown kraft may be suitable for lightweight food bags, small flat bags, bakery packaging, or simple retail uses. Medium GSM ranges may work well for standard shopping bags, apparel bags, and lighter gift packaging. Higher GSM brown kraft may be used for larger bags, heavier retail products, or bags that need a stronger hand feel and more resistance around the gussets and bottom folds.

When I use brown kraft paper, I do not expect printed colors to appear exactly as they would on a bright white coated board. The brown base influences the appearance of inks, especially pale colors, pastel tones, and subtle gradients. Dark inks may appear more natural or muted, while white ink can be used when stronger contrast is required. I consider this part of the material character rather than a printing defect. The design should be created with the kraft background in mind.

Kraft paper can provide useful strength, but the bag’s real performance still depends on construction. A paper bag carrying a heavy product may need a stronger bottom fold, reinforced bottom board, reinforced handle patches, or a handle system designed to spread the load across a wider area. I would not rely on a higher GSM alone to compensate for a weak bottom or unsuitable handle attachment.

Recycled Kraft Paper GSM and Material Consistency

I use recycled kraft paper when the packaging design calls for a recycled-paper appearance or when the selected material direction includes recycled fiber content. Recycled kraft paper can be used for retail bags, promotional bags, event packaging, lightweight shopping bags, apparel bags, and packaging where a natural recycled surface is appropriate. However, I treat recycled kraft as its own material rather than assuming it performs exactly like virgin brown kraft at the same GSM.

Recycled kraft paper commonly appears in a broad range of approximately 90 to 220 GSM for bag applications. The suitable weight depends on the bag dimensions, the product load, the intended number of uses, and the handle construction. A recycled kraft bag can provide an attractive natural appearance, but its surface tone, texture, stiffness, and fiber consistency may vary according to the recycled content and the paper mill’s production process.

When I compare recycled kraft with virgin kraft, I pay attention to more than the GSM figure. Recycled fibers can create differences in surface smoothness, color consistency, tear resistance, fold appearance, and print reproduction. This does not mean that recycled kraft is unsuitable for premium or retail packaging. It means that I would confirm the actual paper sample, especially if the design requires detailed printing, fine text, large solid-color areas, or close color control across multiple SKUs.

I also consider how recycled paper will perform at high-stress areas of the bag. Handle patches, folded top edges, bottom gussets, and side seams can all place local stress on the material. A bag may appear strong when empty but show weakness once the product load is transferred through the handles. For this reason, I look at the paper quality, GSM, bag dimensions, reinforcement design, and finished sample together before treating the material as suitable for a specific carrying requirement.

Coated Paper GSM and Premium Retail Bag Presentation

I use coated paper when the paper bag needs a smooth surface, more precise color reproduction, detailed graphics, or premium finishing effects. Coated paper is commonly used for cosmetic bags, fragrance bags, luxury gift bags, jewellery bags, boutique shopping bags, and retail packaging where the bag itself forms an important part of the brand presentation.

Coated paper commonly falls within a reference range of approximately 120 to 250 GSM for paper bag applications. A medium-weight coated paper may be suitable for smaller premium bags or products with limited carrying weight. A heavier coated paper may provide more body for larger gift bags, luxury retail carriers, or bags that require more substantial side panels and a stronger finished feel.

I do not select coated paper only because it prints beautifully. The coating can affect how the paper folds, how it accepts adhesive, and how it performs around the handle attachment area. A coated surface may need carefully planned glue areas or suitable adhesive methods so that the bag remains stable after assembly. The bag edges, top folds, side gussets, and bottom panels also need to be formed cleanly to avoid visible cracking, scuffing, or uneven surface tension.

Lamination can add another layer of consideration. Matte lamination, gloss lamination, soft-touch lamination, and other surface treatments can change the feel and scuff resistance of the bag, but they can also affect folding, edge appearance, handle attachment, and recyclability considerations. I look at the full material stack rather than only the base paper GSM. The coated paper, printed ink layers, finishing treatment, handle method, and reinforcement pieces all influence the final bag.

Specialty and Textured Paper GSM for Presentation Bags

I use specialty or textured paper when the bag needs a more distinctive tactile or visual identity. This category can include embossed paper, linen-textured paper, metallic paper, pearlescent paper, laid paper, colored paper, and other decorative materials. These papers are commonly used for luxury gift bags, boutique retail bags, jewellery packaging, fashion packaging, invitation-style bags, and presentation-focused product packaging.

Specialty papers may commonly fall within a range of approximately 120 to 250 GSM, but the final choice depends heavily on the paper’s flexibility and surface treatment. A textured paper may look elegant when flat, but it can behave differently when folded around a side gusset or bottom panel. A metallic or pearlescent surface may show stress marks near creases. A deep embossed texture may affect print detail, foil-stamping results, or adhesive contact areas.

When I work with specialty paper, I pay close attention to the areas where the bag must bend, fold, glue, and carry weight. A paper that looks premium on the front panel may still need reinforcement at the top fold, handles, or bottom area. I also consider how the surface reacts to handling. Some specialty papers can show fingerprints, scratches, pressure marks, or scuffing more easily than standard coated or kraft paper. The chosen material should support the expected user experience after the bag has been carried, opened, photographed, and reused.

Why Bag Dimensions Change the GSM Requirement

I always review bag dimensions before treating a GSM range as suitable. The same paper weight can perform well in a small bag and poorly in a larger bag because the distance between the handles, the width of the panels, the depth of the gussets, and the base area all change how weight is distributed. A small bag with short panels may remain stable with a lighter paper, while a large bag with tall side walls may need more body and reinforcement to avoid sagging or tearing.

A tall narrow paper bag can create strong pulling force around the handle area because the product weight is suspended from a smaller top section. A wide bag with a large base may distribute the product weight more evenly, but it can place more pressure on the bottom gusset and corner folds. A bag with deep side gussets may create more internal space, but the gusset folds must be strong enough to open and close without weakening under load.

I also consider whether the bag will carry one large product, multiple smaller products, or boxed items with sharp corners. A single heavy product may place concentrated pressure on one part of the base. Several smaller items may shift inside the bag and place uneven stress on the side panels. Boxed products can create pressure points at corners, especially if the bag has limited internal support. These details can influence the suitable GSM, but they also influence whether a reinforced bottom or stronger bag construction is necessary.

How Side Gussets and Bottom Gussets Affect Strength

I consider side gussets and bottom gussets essential structural features rather than simple dimensional details. Side gussets allow the bag to expand and carry wider products, while bottom gussets create the base area that supports the product load. The dimensions of these gussets influence how the bag opens, how the product sits inside, and how the weight is transferred through the paper.

A bag with shallow gussets may work well for flat products, garments, documents, or smaller retail items. A bag carrying boxed products, gift sets, bottles, or wider items may need deeper gussets to create enough internal volume and a stable base. However, deeper gussets also create more fold lines and more areas where the paper must bend and support pressure. I therefore consider the quality of the folds, the bottom construction, and the material behavior at the corners along with the GSM.

The bottom gusset is especially important because it carries the direct load of the product. A bag with a weak or poorly reinforced base can fail even when the side panels and handles appear strong. I look at how the bottom panels overlap, how the adhesive is applied, whether a bottom board is used, and how the product weight sits on the base. The GSM can contribute to the bag’s body, but the bottom structure determines whether that body can safely support the intended load.

Product Weight and Load Distribution Inside the Bag

I use product weight as a practical starting point, but I do not treat the total weight as the only carrying factor. The way the weight is distributed inside the bag can be equally important. A compact product with a flat base may sit evenly and place predictable pressure on the bottom. A narrow bottle, a heavy jar, a sharp-edged carton, or several loose products can create concentrated pressure points that stress the base, side panels, or handles differently.

When a paper bag carries boxes, glass products, bottles, candles, or other rigid items, I consider whether the product corners may rub against the paper during carrying. A higher GSM may improve resistance, but it may not fully protect the bag if the product moves inside and repeatedly presses against one panel or corner. In these situations, the bag dimensions, internal product arrangement, bottom reinforcement, and handle construction all become part of the material decision.

I also think about how the bag will be lifted. If the product weight is high, the load moves upward through the bag walls toward the handle attachment points. This means that a bag can fail at the handles even if the body paper is thick. I do not judge a bag’s carrying performance from the paper GSM alone because the paper is only one part of the full load path.

Handle Material and Handle Attachment

I consider the handle system one of the most important parts of paper bag performance. The handle is where the user interacts with the bag, and it is often where the product load is transferred into the paper structure. Different handle styles create different pressure patterns. Twisted paper handles, flat paper handles, cotton rope handles, ribbon handles, die-cut handles, and fabric handles all require different attachment methods and different levels of reinforcement.

A handle may look secure when the bag is empty but behave differently once the bag is loaded. The attachment point can tear if the handle patch is too small, if the adhesive bond is weak, if the top fold is not reinforced, or if the paper around the handle opening is not strong enough. I therefore consider the handle material, handle spacing, attachment area, reinforcement board, and expected product load together.

The GSM of the bag body remains relevant, but it does not replace handle engineering. A heavy-GSM bag can still fail if the handle attachment is weak. A medium-GSM bag can sometimes perform well when the handle patches, top fold, adhesive, and bag proportions are correctly designed. I treat the handles as part of the structural system rather than as a decorative accessory added after the paper has been selected.

Bottom Reinforcement and Bag Stability

I use bottom reinforcement when the bag needs to carry products that are heavy, rigid, or likely to place pressure on a small area of the base. A reinforced bottom can help the bag remain flat, improve the way the product sits inside, and reduce stress on the folded bottom panels. It can also improve the perceived quality of a retail bag by helping it retain its intended shape during use.

The bottom board or reinforcement piece should be considered together with the bag dimensions and the product footprint. A large heavy product may require a base that spreads its weight across a wider area. A narrow product may need extra support to prevent it from pressing through one point of the bag. I do not assume that a heavier paper GSM can solve a bottom-structure problem. The reinforcement design, fold geometry, adhesive bond, and product placement all matter.

A stable base also affects the user experience. A bag that stands upright can make products easier to carry, present, and pack at checkout. A bag that collapses, sags, or opens unevenly can make even a high-quality product feel less carefully packaged. I therefore consider bottom stability part of the material and structural decision, not a minor finishing detail.

Moisture Exposure and Real-World Paper Bag Use

I consider moisture exposure whenever a paper bag may be used outdoors, carried in humid conditions, used near food or beverages, or stored in environments where the paper can absorb moisture. Paper-based materials can lose stiffness, soften, warp, or become more vulnerable to tearing when exposed to humidity or water. This can affect the carrying performance of the bag even when the original GSM and construction were suitable in dry conditions.

A kraft bag used for dry retail products may perform very differently from the same bag used for chilled products, takeaway food, beverages, or outdoor events. Coated papers, laminated papers, or specially treated materials may offer different surface resistance, but I still consider whether the complete bag structure can handle the expected conditions. The bottom folds, handle patches, and adhesive areas may react differently to moisture than the main paper body.

I do not treat moisture resistance as a feature that can be assumed from GSM. A heavier paper may absorb moisture more slowly in some situations, but it is still a paper-based material with limits. When moisture exposure is likely, I consider the product type, duration of use, bag finish, storage environment, and handling conditions before deciding whether a standard paper bag construction is appropriate.

Why GSM Alone Can Be Misleading for Paper Bags

I use GSM as a helpful reference, but I never use it as the sole measure of paper bag strength. A bag is not a flat sheet of paper. It is a three-dimensional structure that must support weight through its side panels, gussets, bottom folds, adhesive areas, handles, and reinforcement pieces. Two bags made from the same 150 GSM paper can perform very differently if one is small and reinforced while the other is tall, wide, poorly supported, or fitted with weak handles.

The paper type also matters. A 150 GSM white kraft paper, brown kraft paper, recycled kraft paper, coated paper, and specialty paper may each have different fiber structures, surface conditions, flexibility, and tear behavior. The same GSM does not make these materials interchangeable. I use the material grade to understand the paper itself, then I use the bag dimensions and construction details to understand whether the finished bag can perform as intended.

The most reliable way to read a paper bag GSM chart is to treat it as one part of a complete packaging decision. I begin with the paper type and GSM range, then consider the bag dimensions, product weight, product shape, side gussets, bottom gusset, handle material, handle attachment, bottom reinforcement, print finish, and moisture exposure. This approach helps me avoid the common mistake of choosing a paper bag that looks suitable in a material chart but does not perform properly once it carries the real product.

Rigid Box Greyboard Thickness Chart

I specify rigid box greyboard primarily by actual thickness in millimeters because greyboard is the structural core of the box. Unlike folding carton board, greyboard is not usually selected for repeated creasing and folding. Its main job is to create stable walls, a firm lid or base, straight edges, and a more substantial physical form around the product. For this reason, a rigid box specification should begin with greyboard thickness, then consider density, stiffness, board quality, box dimensions, wrapping paper, and the final assembly structure.

When I see a rigid box described only by GSM, I do not yet have enough information to understand its final structure. GSM can indicate the approximate weight or density direction of the board, but it does not define its physical thickness with enough certainty. A 1.5 mm greyboard and a 2.0 mm greyboard should not be compared only by their GSM because the difference in thickness affects panel rigidity, edge depth, lid fit, wrapping behavior, internal dimensions, and the overall feel of the finished box.

I also separate the greyboard from the wrapping paper. Greyboard provides the structure. Wrapping paper provides the visible surface. A rigid box may use a 2.0 mm greyboard for strength and an 120 GSM coated paper for its exterior finish, but these materials perform completely different roles. Combining them into one simple paper-weight conversion can make the structure appear easier to understand than it really is.

Rigid Box Greyboard Thickness Reference Chart

I use the chart below as a practical reference for common rigid box structures. The GSM values are approximate density references only and should not be used as exact greyboard conversions. Different board mills can produce boards with different density, fiber composition, compression level, flatness, and stiffness at the same nominal thickness. The actual greyboard thickness and physical sample remain the more reliable references when a rigid box needs to meet a specific structural requirement.

Greyboard Thickness	Typical Reference GSM Range	Common Structural Use	Typical Box Scale	Important Limitation
1.0 mm	Approximately 600–750 GSM	Small jewellery boxes, lightweight accessory boxes, compact presentation boxes and small gift packaging	Small boxes with limited panel width and lightweight products	May be too flexible for larger boxes, deep lids or heavier inserts
1.2 mm	Approximately 700–900 GSM	Small cosmetics boxes, small drawer boxes, compact gift boxes and premium accessory packaging	Small to medium boxes with moderate product weight	Board density can change the stiffness and hand feel at the same thickness
1.5 mm	Approximately 900–1,100 GSM	Standard cosmetic rigid boxes, candle boxes, small electronic-product boxes, gift boxes and drawer boxes	Medium boxes with moderate product weight and presentation requirements	The correct result depends on panel size, box structure and insert weight, not thickness alone
2.0 mm	Approximately 1,200–1,500 GSM	Premium gift boxes, fragrance boxes, electronics boxes, large cosmetics boxes and presentation packaging	Medium to larger boxes requiring stronger walls and a more substantial feel	Larger boxes may still require structural support beyond simply increasing greyboard thickness
2.5 mm	Approximately 1,500–1,800 GSM	Large gift boxes, premium set boxes, heavy-product boxes, large drawer boxes and high-end presentation packaging	Large boxes or boxes with heavier products and wide panels	Adds weight and cost, and may make wrapping, lid fit and internal dimensions more demanding
3.0 mm	Approximately 1,800–2,200 GSM	Large luxury gift boxes, display-style boxes, heavy electronics packaging and large presentation cases	Large-format rigid boxes with demanding rigidity requirements	Not automatically the best choice for every large box because construction, support and shipping conditions still matter

Why Greyboard Thickness Comes Before GSM

I use thickness as the main greyboard specification because the physical depth of the board directly affects the structure of a rigid box. A 1.0 mm board, a 1.5 mm board, and a 2.0 mm board create different wall depths, different edge profiles, different lid relationships, and different levels of resistance to bending. These differences remain visible and measurable in the finished box even before the product is placed inside.

Greyboard GSM can still be useful as secondary information because it gives a general indication of the board’s material weight and density. However, I do not use GSM to replace millimeter thickness. Two greyboards may have a similar GSM but different calipers because one board is denser and more compressed while another is bulkier. In a rigid box, this difference can affect the panel stiffness, the weight of the finished box, the way the edges feel, and the amount of internal space available after the box has been wrapped and assembled.

When I compare rigid box specifications, I first ask for the board thickness in millimeters. I then consider the board density, stiffness, flatness, edge quality, and intended box dimensions. This gives a more realistic understanding of the structure than trying to apply a folding-carton GSM-to-PT relationship to a greyboard core.

Why 1.5 mm and 2.0 mm Greyboard Are Not Interchangeable

I do not treat 1.5 mm and 2.0 mm greyboard as small variations of the same structure. The difference may appear to be only 0.5 mm, but in a rigid box that additional thickness affects the overall rigidity, the depth of the wrapped edges, the internal dimensions, the lid fit, the box weight, and the way the structure responds when it is opened, carried, or stacked.

A 1.5 mm greyboard may be suitable for many medium-sized cosmetic boxes, candle boxes, small drawer boxes, and gift boxes where the product weight is moderate and the panels are not excessively wide. It can create a refined rigid-box feel without making the box unnecessarily heavy. A 2.0 mm greyboard may be more appropriate when the box has wider panels, a larger footprint, a heavier product, a thick insert, or a stronger premium presentation requirement.

The correct choice depends on more than the product weight. A lightweight product in a large box can still require stronger greyboard because the wide panels may flex or bow. A heavier product in a compact box may not need the thickest board if the structure distributes the load effectively and the internal insert supports the product properly. I therefore consider the box dimensions, panel width, box style, product footprint, insert structure, opening direction, and expected handling together before deciding whether 1.5 mm or 2.0 mm is more suitable.

How Greyboard Density Affects Weight and Rigidity

I use board density to understand why two greyboards with the same thickness may not feel or perform in exactly the same way. Density describes how much material is packed into the thickness of the board. A denser greyboard may feel heavier and more compact, while a bulkier board may have a more open internal structure. Both may be described as 2.0 mm greyboard, but their weight, edge appearance, stiffness, and response to cutting can differ.

Thickness remains a major factor in rigid-box stiffness because a thicker board creates a deeper structural section. However, thickness is not the only factor. The fiber composition, compression level, board density, moisture condition, and board quality can also influence how the panel resists bending. I therefore do not assume that every 2.0 mm greyboard will have identical rigidity or produce the same finished-box result.

A denser board can create a substantial feel, but it may also add more weight to the finished box. This can matter when the packaging is large, when several components are packed together, or when the finished goods are transported in volume. A bulkier board may create more thickness for a similar weight, but it must still provide the stability needed for the box structure. I look for the balance between physical rigidity, finished-box weight, internal dimensions, and packaging purpose rather than simply selecting the densest or thickest board available.

How Box Size Changes Greyboard Requirements

I always consider box size because panel size can change the structural demand even when the product weight stays the same. A small rigid box with short panels may remain stable with 1.0 mm or 1.2 mm greyboard because the board does not need to span a large distance. A wider or taller box creates larger unsupported panels, which can bend, bow, or lose their straight edge if the greyboard is too thin for the structure.

A larger gift box, electronics box, apparel presentation box, or set box may need 2.0 mm, 2.5 mm, or 3.0 mm greyboard depending on its dimensions and the way it will be used. However, I do not assume that increasing board thickness is always the complete answer. Large boxes can also benefit from structural design choices that distribute load more effectively, such as stronger inserts, reinforced base panels, a suitable shoulder structure, internal dividers, or a box style that provides support through overlapping components.

The box opening style also changes the requirement. A two-piece lid-and-base box, a drawer box, a magnetic closure box, a shoulder box, and a hinged-lid box each place stress on the greyboard differently. A drawer box may need stable side walls that remain square as the tray slides in and out. A magnetic closure box may need clean folding and wrapping around the hinged area. A shoulder box may require accurate board dimensions so that the lid and base meet correctly. I consider greyboard thickness together with the box construction rather than selecting it from the external dimensions alone.

Product Weight Is Important, but Product Footprint Matters Too

I use product weight as an important starting point, but I also consider how the product sits inside the rigid box. A compact heavy product can create concentrated pressure on one section of the base. A large lightweight product can create wide-panel stress because the box needs a larger footprint. A product with sharp corners, a glass container, a metal component, or multiple separate items may need additional internal support even when the outer greyboard thickness appears suitable.

An insert can help position the product and reduce movement, but I do not assume that an insert can compensate for an unsuitable outer box structure. The insert and the greyboard serve different roles. The insert controls the product position and internal presentation. The greyboard forms the external shell and must maintain the shape of the box. Both elements should be designed to work together.

I also consider whether the product will be removed and replaced repeatedly. A rigid box used once for a gift may face a different level of wear from a box used as a reusable storage container, premium product case, or long-term presentation box. Repeated opening, closing, sliding, lifting, and handling can reveal weaknesses in the board structure, lid fit, or edge quality. The expected life of the packaging should therefore influence the greyboard decision.

Board Flatness and Why It Matters

I consider board flatness essential because rigid boxes rely on straight panels and clean edges to create a premium finished appearance. A greyboard that is warped, bowed, or uneven can create visible problems after wrapping. The box may not sit flat on a surface, the lid may not align correctly with the base, the corners may appear uneven, or the wrapped paper may show tension, rippling, or irregular edges.

Board flatness can be influenced by moisture condition, storage environment, board density, cutting, and the material’s response to adhesive during wrapping. A greyboard panel that appears acceptable before assembly may react differently when it receives wrapping paper, glue, pressure, and drying time. I therefore consider flatness as part of the real production behavior of the board rather than only as a visual inspection point before assembly.

Large rigid-box panels are particularly sensitive to flatness. A small amount of bowing can become more visible across a wide lid or base panel. When the box uses dark wrapping paper, high-gloss lamination, metallic paper, or a minimal design with large unprinted areas, surface irregularities can become easier to notice. I use flat, stable greyboard because the quality of the underlying structure affects the appearance of the final wrapped surface.

Edge Quality and the Finished Appearance of a Rigid Box

I pay close attention to greyboard edge quality because the edges form the visible geometry of the finished box. Even though the greyboard is covered with wrapping paper, the quality of the cut edges affects how sharp the corners look, how evenly the paper wraps, and how the lid and base align. Rough, crushed, frayed, or uneven board edges can create irregular wrapped corners and reduce the precision of the finished structure.

Edge quality becomes especially important on premium boxes with clean minimal designs, light-colored wrapping paper, metallic paper, textured paper, or high-contrast finishes. The more refined the exterior surface is, the more visible any structural imperfection can become. A well-cut greyboard edge supports a neat wrapped corner, while an uneven edge can create a soft, irregular, or visibly distorted line beneath the paper.

I also consider the relationship between edge quality and board thickness. Thicker boards create deeper edges and stronger visual profiles, but they also require clean cutting and accurate assembly. A 2.5 mm or 3.0 mm board can create a substantial premium feel, yet poor edge quality becomes more noticeable because the wrapped edge is more prominent. I treat board cutting accuracy as part of the greyboard specification, not as a separate minor detail.

Moisture, Storage, and Greyboard Stability

I consider moisture condition because greyboard is paper-based and can react to humidity changes. Excess moisture or uneven storage conditions can influence flatness, stiffness, cutting behavior, and the way the board responds to adhesive during wrapping. A board that has absorbed moisture may become more flexible, more likely to warp, or less stable during assembly.

This matters particularly for rigid boxes because the box is built from multiple greyboard panels that must remain square and aligned. If one panel changes shape, the lid or base may not fit as intended. The wrapping paper may show tension, the corners may no longer meet cleanly, and the box may sit unevenly. These effects can become more obvious in large boxes, dark-color packaging, glossy surfaces, or structures with tight lid-and-base tolerances.

I therefore treat greyboard storage and condition as part of the material decision. The selected thickness may be correct on paper, but the board still needs to remain stable through cutting, wrapping, assembly, packing, and transport. A rigid box should be evaluated as a finished structure rather than only as a thickness value.

Why Greyboard Thickness and Wrapping-Paper Weight Must Be Separate

I keep greyboard thickness and wrapping-paper GSM separate because they describe two different layers with two different functions. Greyboard is the structural material. It creates the rigid walls, lid, base, and edges of the box. Wrapping paper is the decorative or printed surface. It covers the greyboard, carries the artwork, supports finishing, and determines much of the visible texture and color of the final package.

A rigid box may use 1.5 mm, 2.0 mm, or 2.5 mm greyboard while using wrapping paper in a much lighter GSM range. The wrapping paper may be chosen for print quality, flexibility, texture, color, foil-stamping suitability, or lamination compatibility. It does not replace the structural function of greyboard. A heavier wrapping paper may create a richer surface feel, but it will not provide the same rigidity as increasing the greyboard thickness.

I also consider how the wrapping paper behaves around the board. A paper that is too thick, too rigid, or too heavily textured may be difficult to fold neatly around sharp corners. A paper that is too thin may reveal surface irregularities or adhesive marks beneath it. The correct wrapping-paper weight should therefore be selected according to the surface finish and wrapping process, while the greyboard thickness should be selected according to the structural requirement of the box.

How Greyboard Thickness Affects Internal Dimensions

I consider greyboard thickness when calculating the usable internal space of a rigid box. The board creates walls around the product, and thicker board reduces the internal area if the external dimensions remain unchanged. This can affect product fit, insert dimensions, lid clearance, and the way the product is removed from the box.

For example, changing a structure from 1.5 mm greyboard to 2.0 mm greyboard may affect the internal dimensions of the base and the relationship between the lid and base. The difference may seem small in one panel, but it can become meaningful when several board walls, wrapped layers, inserts, and tolerances are combined. I do not increase greyboard thickness without checking how it affects the internal product fit.

This is particularly important when the box includes a close-fitting insert, a tray, a shoulder, a drawer, or a product that has very limited clearance. A thicker board can improve the outer structure but may create assembly or fit problems if the internal dimensions are not adjusted. I treat board thickness as part of the complete structural calculation rather than as an isolated upgrade.

What an Original Greyboard Cross-Section Photograph Should Show

I would place an original cross-section photograph beside this chart because a real material image can explain greyboard construction more clearly than another generic conversion graphic. The image should show the greyboard core, the wrapping paper layer, the adhesive layer, the finished edge, and the difference between the structural board and the decorative surface. A close-up image of a 1.5 mm board and a 2.0 mm board beside one another can help readers see why thickness changes the physical profile of the box.

The photograph should be labelled with the actual greyboard thickness, wrapping-paper type, and measured total edge depth of the finished box. This gives the image educational value because the reader can see that a rigid box is a layered structure. The board thickness creates the main body of the edge, while the wrapping paper adds surface finish rather than structural strength.

I would avoid using a stock image that simply shows a luxury box from the outside. The most useful image is one that reveals the material relationship hidden inside the finished packaging. A real cross-section can show how the board, paper, adhesive, and wrapped corner work together, which makes the chart more practical and helps readers understand why greyboard cannot be selected by GSM alone.

How I Read the Greyboard Chart in Practice

I use the greyboard thickness chart to identify a realistic starting point for the rigid-box structure. I begin with the box dimensions, product weight, product footprint, box style, insert design, and desired level of rigidity. I then compare those requirements with an appropriate board-thickness range. The GSM reference can help describe the board density direction, but I rely on actual millimeter thickness and physical board behavior when structural accuracy matters.

I do not treat thicker greyboard as automatically better. A board that is unnecessarily thick can add weight, reduce internal space, increase material use, make wrapping more demanding, and create an oversized finished box. A board that is too thin can allow wide panels to flex, make edges feel weak, reduce lid stability, or affect the perceived quality of the package. The best greyboard thickness is the one that gives the box the required stability without creating unnecessary weight or structural complications.

When I read the chart in this way, it becomes more than a thickness reference. It becomes a guide for understanding how greyboard affects the physical structure, visual precision, product fit, and long-term performance of a rigid box.

Rigid Box Wrapping Paper Weight Chart

I treat wrapping paper as the visible surface of a rigid box rather than the material that creates its main strength. The greyboard underneath forms the structure, provides the rigidity, and creates the depth of the edges. The wrapping paper covers that structure and determines much of what the customer sees and feels first. Its color, texture, print quality, fold behavior, surface finish, and corner appearance all influence whether the finished box feels refined, natural, modern, luxurious, understated, or visually inconsistent.

When I select wrapping paper, I do not ask only whether the paper is thick or thin. I consider whether it can wrap cleanly around the selected greyboard thickness, whether it is opaque enough to hide the board and adhesive beneath it, whether it accepts the intended printing and finishing, and whether it can remain visually clean after handling. A paper that looks excellent as a flat printed sheet may create difficulties once it is wrapped around corners, pressed over greyboard edges, glued across a large panel, or combined with foil stamping, embossing, and lamination.

The paper GSM is important because it influences body, flexibility, opacity, surface feel, and wrapping behavior. However, the same GSM can perform differently across coated art paper, uncoated paper, kraft paper, textured paper, and specialty paper. I therefore read wrapping-paper GSM together with the paper surface, fiber structure, coating, printing method, finish requirements, greyboard thickness, and box geometry.

Rigid Box Wrapping Paper Weight Reference Chart

I use the chart below as a practical reference for the wrapping papers commonly used on rigid boxes. The GSM ranges are typical starting points rather than strict rules. The correct paper weight depends on the board thickness, edge depth, corner construction, print coverage, finish requirements, and the visual effect expected from the finished package.

Wrapping Paper Type	Typical GSM	Surface Characteristics	Suitable Finishes	Wrapping Considerations
Coated art paper	Approximately 105–157 GSM	Smooth, even, bright surface with strong print detail and color reproduction	Matte or gloss lamination, soft-touch lamination, foil stamping, embossing, debossing and spot UV	Usually wraps cleanly at moderate GSM, but heavy coating, lamination or dark folds can make corner stress more visible
Uncoated paper	Approximately 100–180 GSM	Natural, soft, absorbent and often more tactile than coated paper	Foil stamping, embossing, debossing, blind embossing and selected print finishes	Surface can absorb ink and adhesive differently, so color consistency and glue behavior should be checked
Kraft paper	Approximately 80–150 GSM	Natural brown or white kraft texture with visible fiber character	Simple printing, white ink, foil stamping, embossing and selected varnish effects	Natural texture affects color appearance and may reveal fold stress differently from coated paper
Textured paper	Approximately 120–220 GSM	Linen, laid, embossed, woven, ribbed or patterned surface	Foil stamping, embossing, debossing and limited print coverage	Deep texture can affect print sharpness, adhesive contact and corner folding
Specialty paper	Approximately 100–250 GSM	Metallic, pearlescent, colored, soft-touch, suede-like, glitter, holographic or other decorative surface	Selected foil effects, embossing, debossing and material-specific finishes	Surface durability, fold memory, scuffing, pressure marks and adhesive compatibility should be tested on the actual paper

Why Wrapping Paper Must Be Considered Separately From Greyboard

I keep the wrapping paper separate from the greyboard because the two layers solve different packaging problems. Greyboard determines whether the box walls remain straight, whether the lid and base fit correctly, whether the panels resist bending, and whether the finished package feels structurally substantial. Wrapping paper determines the visible color, texture, print quality, tactile feel, and surface finish of the box.

A rigid box can use a 2.0 mm greyboard structure and a 120 GSM wrapping paper. The greyboard is selected because the box needs a certain level of rigidity. The wrapping paper is selected because it needs to print well, wrap around the board cleanly, support a certain finish, and create the intended visual effect. The two values should not be combined into one material measurement because a heavier wrapping paper does not replace the structural role of greyboard.

I also consider the fact that wrapping paper sits directly over the greyboard. If the board beneath it has uneven edges, surface marks, poor flatness, or visible joints, the wrapping paper may reveal those imperfections. This is especially true with thin, light-colored, glossy, metallic, or highly reflective papers. The surface paper is not only decorative. It is also the layer through which the quality of the underlying structure becomes visible.

Coated Art Paper for Rigid Box Wrapping

I use coated art paper when the rigid box needs accurate printing, clean color reproduction, detailed graphics, smooth gradients, fine text, or a polished retail appearance. Coated art paper is commonly used for cosmetics boxes, fragrance boxes, electronics packaging, gift boxes, jewellery packaging, premium retail boxes, and branded presentation sets. Its smooth coated surface can create a controlled base for CMYK printing, Pantone-style color matching, detailed artwork, and premium finishing.

Coated art paper often falls within a reference range of approximately 105 to 157 GSM for rigid box wrapping. A lighter coated paper may be flexible enough to wrap around corners and edges cleanly, but it may be more likely to reveal the greyboard surface or adhesive marks beneath it if the structure is not perfectly even. A heavier coated paper may provide stronger opacity and a more substantial surface feel, but it can become less flexible around sharp corners, deep board edges, and complex box structures.

I do not select coated art paper from GSM alone because the coating and finish can change how the paper behaves. A matte laminated paper, gloss laminated paper, soft-touch paper, or unlaminated coated sheet can have different fold characteristics and different resistance to scuffing. Dark solid-color artwork can also make edge cracking or fold stress more visible, especially around sharp corners. I consider the print coverage, surface finish, board thickness, and corner structure together.

Coated art paper can be highly suitable for boxes that need detailed brand graphics, photographic images, fine color control, or premium surface effects. However, I still check how the selected paper wraps around the actual box structure. A flat print proof cannot show how the paper will behave when it is glued, folded, pressed, and formed around the greyboard.

Uncoated Paper for a Natural and Tactile Surface

I use uncoated paper when the rigid box needs a more natural, tactile, soft, or understated surface. Uncoated paper can be suitable for premium stationery boxes, lifestyle packaging, skincare boxes, artisan products, gift packaging, fashion packaging, and boxes where the material itself should feel noticeable rather than highly polished. The surface can create a warmer and more paper-focused impression than a smooth coated sheet.

Uncoated wrapping paper commonly falls within a broad range of approximately 100 to 180 GSM. A lighter uncoated paper can wrap cleanly and may work well for small or medium rigid boxes, but it can be more sensitive to show-through if the greyboard surface is uneven or if adhesive is applied inconsistently. A heavier uncoated paper may create more body and opacity, but it may require more attention around tight corners and deep edge folds.

I consider ink absorption carefully when I use uncoated paper. The surface can absorb ink differently from coated art paper, which may cause colors to appear softer, less saturated, or more muted. This can be desirable when the design calls for a natural, refined, or editorial style, but it should be expected rather than treated as a printing inconsistency. I do not assume that an uncoated paper will reproduce the same artwork in the same way as a coated paper.

Uncoated paper can also respond differently to adhesive and handling. The surface may be more porous, and this can affect how glue spreads, dries, or leaves visible marks. It may also show rubbing, moisture marks, or fingerprints differently from laminated coated paper. I select uncoated paper when its tactile quality supports the package design and when the expected handling conditions are suitable for that surface.

Kraft Paper for Rigid Box Wrapping

I use kraft paper when the rigid box needs a natural fiber appearance, brown-paper character, or a more material-led visual direction. Kraft wrapping paper can work well for apparel packaging, lifestyle products, natural-product boxes, food gift boxes, eco-style presentation packaging, craft-inspired products, and brands that want the visible paper surface to feel honest and tactile.

Kraft wrapping paper commonly falls within a range of approximately 80 to 150 GSM for rigid box applications. A lighter kraft paper can wrap around corners and edges relatively easily, which can be useful for boxes with moderate board thickness and simple geometry. However, a lighter kraft may have less opacity and can reveal the greyboard beneath it if the board surface, adhesive application, or joint construction is uneven. A heavier kraft paper can create more coverage and a stronger tactile feel, but it can become more difficult to wrap around deep corners or thick greyboard edges.

The natural brown base changes how colors appear. I do not expect pale colors, soft gradients, or bright tones to reproduce in the same way as they would on white coated paper. White ink can be used to create stronger contrast, and dark ink can create a simple, strong graphic result. I treat the brown surface as part of the design rather than trying to make it behave like a white printing base.

Kraft paper can also show fold lines, fiber texture, and pressure marks in a distinctive way. This can add character to the finished box when the material choice is intentional, but it may not suit every design. I consider the greyboard edge quality, wrapping direction, print coverage, and expected handling before choosing kraft as the outer surface.

Textured Paper and the Importance of Surface Depth

I use textured paper when the rigid box needs a more tactile, decorative, or material-rich surface. Textured papers can include linen paper, laid paper, ribbed paper, woven paper, embossed paper, leather-like paper, fabric-like paper, and other surfaces that create visible depth. These papers are often used for jewellery boxes, fragrance packaging, premium gift boxes, wine packaging, fashion presentation boxes, and products where the packaging needs a more distinctive physical identity.

Textured wrapping paper commonly ranges from approximately 120 to 220 GSM, although the right choice depends on the depth of the texture and the flexibility of the paper. A paper may have a moderate GSM but feel relatively stiff because its surface pattern, embossing, or fiber structure reduces flexibility. A heavier textured paper may create a refined surface, but it can be difficult to fold tightly around sharp corners, narrow edges, or small box details.

I consider print detail carefully when using textured paper. Fine text, delicate illustrations, and small graphic elements may not reproduce as sharply as they would on a smooth coated surface. Foil stamping, embossing, debossing, and blind embossing can work well on many textured papers, but the final result depends on the relationship between the existing paper texture and the applied finish. A deep texture can compete with a fine foil line or subtle embossed detail if the design is not adjusted for the material.

Textured paper also changes the way adhesive contacts the surface. The paper may have raised and recessed areas, which can affect how evenly the wrapping paper bonds to the greyboard. I would assess the actual paper on the actual box structure rather than assuming that a textured sheet will wrap and adhere in the same way as smooth coated paper.

Specialty Paper and Material-Specific Behavior

I use specialty paper when the rigid box needs a surface that cannot be created through ordinary printing alone. Specialty papers can include metallic paper, pearlescent paper, colored paper, glitter paper, holographic paper, suede-like paper, soft-touch paper, fabric-laminated paper, synthetic-feel paper, or other decorative materials. These surfaces can create a strong first impression, but they also need more careful material evaluation because the surface behavior can vary significantly.

Specialty paper can range from approximately 100 to 250 GSM, but the GSM number does not explain how the material will perform during wrapping. A metallic paper may be relatively thin but still show corner stress or pressure marks easily. A soft-touch paper may feel premium but be more sensitive to fingerprints or scuffing. A thick pearlescent or textured paper may create a refined finish but resist wrapping around deep greyboard edges.

I do not assume that every specialty paper can accept the same finishes. Some surfaces may work beautifully with foil stamping, while others may already have metallic or reflective qualities that make additional foil unnecessary or difficult to control. Some papers may accept embossing clearly, while others may show pressure marks around the embossed area. The paper should be selected for how its inherent surface works with the intended design rather than only for its appearance in a swatch book.

I also think about the real handling experience. A specialty surface may look exceptional when first assembled, but it may show fingerprints, scratches, rubbing marks, or edge wear after the box is handled, packed, opened, photographed, or reused. I consider the product category, retail environment, shipping method, and expected user interaction before treating a visually striking paper as the most suitable option.

Why Very Thin Wrapping Paper Can Reveal the Structure Beneath It

I pay close attention to opacity when the wrapping paper is thin. A very thin wrapping paper may wrap easily around corners, but it can reveal the greyboard surface, adhesive marks, board joints, edge irregularities, or variations in the underlying structure. This is particularly noticeable with white paper, pale colors, smooth coated paper, glossy finishes, metallic surfaces, and designs with large areas of light color.

The underlying greyboard quality becomes more important when thin paper is used. If the board surface is flat, the edges are clean, the joints are accurate, and the adhesive is applied evenly, a lighter paper can create a neat result. If the greyboard has rough edges, visible seams, uneven panels, or glue variation, thin paper may make these details easier to see.

I do not treat thin wrapping paper as automatically unsuitable. It can be useful when the box has simple geometry, clean board construction, moderate edge depth, and a design that benefits from a lighter, more flexible surface. However, I would not use thin paper as a way to solve wrapping difficulty if the material does not provide enough coverage for the finished appearance required.

Why Very Thick Wrapping Paper Can Create Corner Problems

I consider very thick wrapping paper carefully because thickness can reduce flexibility. A heavier wrapping paper may create more opacity, body, and surface presence, but it can become difficult to fold tightly around sharp corners, deep board edges, narrow side panels, and small box structures. The thicker the greyboard and the tighter the corner geometry, the more important the flexibility of the wrapping paper becomes.

When thick paper is wrapped around a rigid box, excess material can build up at the corners. This can create bulky folds, uneven edges, visible tension, or a less precise wrapped appearance. The problem can become more obvious on small boxes, deep lids, drawer structures, shoulder boxes, or boxes with narrow side walls. A paper that works well on a large flat panel may not work equally well around a small corner.

I do not assume that a heavier wrapping paper produces a more premium box. A well-chosen moderate-weight paper can create a cleaner, more precise result if it wraps smoothly and hides the board beneath it. The best wrapping paper is the one that supports the visual goal while remaining flexible enough for the box geometry.

Paper Flexibility, Fold Memory, and Corner Precision

I consider paper flexibility one of the most important wrapping properties. Flexibility determines how easily the paper can follow the greyboard surface, bend around edges, and form clean corners without pulling away from the board. A flexible paper can adapt to the structure more easily, while a rigid paper may resist the fold and create tension at the corners.

Fold memory also matters. Some papers tend to retain the stress of a fold, which can make the corners appear less clean or cause the paper to lift slightly after wrapping. This can be influenced by paper thickness, coating, texture, grain direction, lamination, humidity, and the type of finish applied to the surface. I consider these factors when the box requires sharp, highly controlled corners.

The board thickness and edge shape also influence paper flexibility requirements. A 1.0 mm greyboard edge is different from a 2.5 mm greyboard edge. The deeper the board edge, the more material the wrapping paper must travel around the corner. A wrapping paper that works well on a thin-board box may become difficult to use on a thicker structure. I evaluate the paper and greyboard together rather than selecting each layer independently.

How Lamination Changes Wrapping-Paper Selection

I consider lamination as part of the wrapping-paper system rather than a separate visual finish added at the end. Matte lamination, gloss lamination, soft-touch lamination, anti-scuff films, and other films can change the paper’s flexibility, thickness, surface feel, fold response, and resistance to handling. A paper that wraps well before lamination may become stiffer after lamination.

Gloss lamination can create a vivid, polished appearance and may offer useful surface protection, but it can make reflections reveal small surface irregularities or uneven corners more easily. Matte lamination can create a softer visual result, but dark matte surfaces may show scuffing or fold stress if the paper and board construction are not suitable. Soft-touch lamination can create a premium tactile effect, but it may require careful attention to fingerprints, pressure marks, corner stress, and surface durability.

I do not choose lamination only from the desired appearance. I consider whether the laminated paper can still wrap cleanly around the selected greyboard thickness, whether the fold lines will remain neat, and whether the surface will hold up during packing and handling. The finish should improve the finished box without creating wrapping problems that reduce the overall quality.

How Foil Stamping Affects Wrapping-Paper Choice

I use foil stamping when the design needs reflective metallic detail, stronger logo emphasis, fine decorative lines, or a premium contrast against the paper surface. The result of foil stamping depends not only on the foil but also on the smoothness, texture, coating, and compressibility of the wrapping paper beneath it.

A smooth coated paper can support crisp foil lines and detailed logo work, especially when the surface is even and the artwork is designed for the material. A textured paper can create a more tactile foil effect, but fine details may become less sharp if the texture is deep. A kraft paper can create a distinctive contrast with metallic foil, but the natural fiber surface may influence the edge definition of the foil result.

I also consider where the foil is placed. Foil applied close to a fold, corner, or wrapped edge may face more stress during assembly. If the paper bends sharply after foil stamping, the foil area may need careful positioning to reduce visible cracking, distortion, or pressure marks. The material, foil design, board thickness, and box structure should be considered together before the finish is treated as final.

How Embossing and Debossing Affect Wrapping-Paper Choice

I use embossing and debossing when the packaging needs physical depth, tactile identity, or a logo treatment that can be felt as well as seen. These finishes rely on pressure, so the wrapping paper needs to respond clearly without becoming damaged, overly flattened, or visually inconsistent.

A paper with moderate thickness and suitable compressibility may show embossing or debossing more effectively than a very thin sheet that lacks body or a very rigid paper that resists the applied pressure. Textured papers can create a rich result, but the existing surface pattern may compete with subtle embossed details. Smooth coated papers can show precise embossing, but the chosen design should account for the surface finish and any lamination.

I also consider whether the embossed or debossed area will later need to wrap around a panel, edge, or corner. A finish positioned too close to a fold can become distorted during assembly. The final design should respect the physical behavior of the wrapping paper and the geometry of the box rather than treating the front panel as a completely flat graphic surface.

Adhesive, Surface Bonding, and Wrapped Edges

I consider adhesive behavior because wrapping paper must bond evenly to the greyboard without visible marks, bubbles, lifting edges, or inconsistent tension. The paper surface, coating, texture, absorbency, and finish can all influence how adhesive behaves. A porous uncoated paper may absorb adhesive differently from a smooth coated paper. A textured or metallic paper may require careful bonding so that the surface remains even across the board.

The wrapped edges and corners are where adhesive and paper behavior become most visible. If the adhesive spreads unevenly, if the paper is too thin, or if the board edge is not clean, the finished corner may show marks or irregular tension. If the paper is too stiff, it may resist the adhesive at the fold and create lifting or bulky corners. I evaluate the paper and adhesive relationship as part of the wrapping process, not as a hidden technical detail.

The same wrapping paper can also behave differently on different box structures. A paper that wraps smoothly around a simple two-piece box may be more challenging on a drawer box, shoulder box, hinged box, or structure with narrow panels and deep corners. I consider the full geometry of the rigid box before deciding whether the selected paper is suitable.

Why Wrapping Paper Weight Should Not Be Treated as a Quality Ranking

I do not assume that a heavier wrapping paper is automatically more premium or that a lighter wrapping paper is automatically lower quality. Paper weight must be matched to the purpose of the box. A moderate-weight coated paper may produce a clean, precise luxury box because it prints well, wraps smoothly, and supports the selected finish. A much heavier textured paper may create a more tactile result, but it may not be suitable for every corner, edge, or box style.

The quality of a rigid box comes from how well the materials work together. The greyboard must provide the correct structure. The wrapping paper must cover it evenly and support the intended appearance. The adhesive must bond the layers cleanly. The finishing must work with the paper surface. The corners and edges must remain precise after assembly. I consider wrapping-paper GSM as one part of this complete system.

How I Read the Wrapping Paper Chart in Practice

I use the wrapping paper chart to narrow the material direction, then I compare the paper with the greyboard thickness, box structure, print design, finishing plan, and expected handling conditions. I begin by deciding whether the design needs a smooth coated surface, a natural uncoated feel, a kraft appearance, a tactile texture, or a specialty visual effect. I then consider the GSM range that can provide enough opacity and body while remaining flexible enough for the box geometry.

I do not treat the paper selection as complete until I understand how it will behave at the corners and edges. The front panel may look excellent in a digital mockup, but the real test is whether the paper can wrap cleanly around the structure, conceal the board beneath it, carry the print and finish accurately, and remain attractive after handling.

When I read the chart in this way, wrapping-paper GSM becomes more than a weight reference. It becomes a practical guide to surface quality, corner precision, print performance, finish compatibility, and the final tactile experience of a rigid box.

Paper Weight Chart for Sleeves and Inserts

I separate sleeves and inserts from outer cartons because these components perform very different jobs inside a packaging system. Some paper components are mainly decorative. They carry branding, product information, color, texture, or a premium presentation layer. Other components are structural. They hold the product in position, divide several items, reduce movement, support fragile products, or create a controlled opening experience.

This distinction matters because a decorative paper sleeve does not need the same material performance as an insert supporting a glass bottle, electronic accessory, fragrance product, or multi-piece gift set. A sleeve may only need enough body to hold its shape around an inner carton. A backing card may need enough rigidity to display a lightweight product and resist bending on a retail hook. A product-supporting insert may need to withstand repeated pressure, hold a specific shape, control product movement, and remain stable during shipping.

When I compare GSM and caliper for sleeves and inserts, I begin with the component’s primary function. I ask whether the paper component is intended to present, separate, position, support, protect, or carry the product. I then consider the product dimensions, product weight, product shape, cut-out design, folding structure, carton dimensions, expected shipping conditions, and assembly method. GSM is important, but the component design determines how that material will perform.

Paper Weight Chart for Sleeves and Inserts

I use the chart below as a practical reference for common paper-based sleeves and inserts. The GSM and caliper ranges are starting points rather than fixed specifications. The correct material depends on whether the component is decorative or structural, how the product sits inside the packaging, how much movement must be controlled, and how the component will behave after die-cutting, folding, assembly, and handling.

Component	Material	Typical GSM or Caliper	Primary Function	What Affects the Specification
Packaging sleeve	SBS, FBB, kraft paperboard, coated paperboard or specialty paper	Approximately 250–400 GSM or 10–20 PT	Adds branding, creates a second presentation layer, groups products or holds an inner pack	Inner-box dimensions, sleeve fit, print finish, opening direction, friction and repeated handling
Backing card	SBS, C1S, C2S, kraft board or recycled paperboard	Approximately 250–500 GSM or 12–24 PT	Supports lightweight retail products, product information, hang display or presentation	Product weight, hang-hole design, product attachment method, card size, bending resistance and retail handling
Folding paperboard insert	SBS, FBB, kraft board or recycled paperboard	Approximately 250–400 GSM or 10–20 PT	Positions products, creates compartments, supports light to moderate items and improves presentation	Product geometry, fold lines, locking tabs, cut-outs, internal carton clearance and assembly method
Paper divider	Paperboard, kraft board, recycled board or corrugated paper	Approximately 200–350 GSM or 8–16 PT	Separates multiple products, reduces surface contact and organizes components	Number of products, divider height, product movement, panel span, internal box size and shipping pressure
Product-supporting insert	Stiff paperboard, layered paperboard, corrugated paper, folded board structures or reinforced board	Approximately 350–600 GSM or 16–30 PT, depending on structure	Holds, supports or restrains products during storage, display and transport	Product weight, fragility, product shape, cut-out depth, contact points, shipping conditions and amount of movement allowed

Why Decorative Components and Structural Components Need Different Materials

I first decide whether the component is decorative or structural because this changes the meaning of GSM and caliper. A decorative sleeve may only need enough stiffness to remain neat around an inner carton. It may carry a logo, product story, seasonal artwork, or premium finishing. Its main purpose is visual presentation. It does not necessarily need to support the product weight or prevent movement during transport.

A structural insert has a more demanding role. It may need to hold a bottle upright, position a jar, separate several products, prevent a product from moving inside the box, or create a secure opening experience. The material must not only look clean. It must resist bending, tearing, compression, and deformation at the points where the product touches it. A structural insert may require stronger board, more suitable caliper, a different folding design, or multiple layers of paper-based support.

I do not use a heavier GSM as a shortcut for every structural requirement. A thick board can still fail if the cut-out is too large, if the support tabs are too narrow, if the product weight is concentrated in one point, or if the insert is not locked properly into the outer box. In the same way, a moderate-GSM insert can perform well when its folds, tabs, dividers, and contact points are designed to distribute the load effectively. The material and structure must work together.

Packaging Sleeves and the Relationship Between GSM, Fit, and Friction

I use packaging sleeves when an outer paperboard band or cover needs to wrap around an existing carton, tray, product pack, or gift-box component. A sleeve can create additional branding space, group several items together, add a premium reveal, provide seasonal artwork, or transform a simple inner pack into a more presentation-focused package. Because the sleeve is usually visible before the product is opened, its paper weight and surface finish can strongly influence the perceived quality of the packaging.

Packaging sleeves commonly use material in the range of approximately 250 to 400 GSM, although the right GSM depends on the size of the sleeve, the dimensions of the inner pack, the opening style, and the desired hand feel. A smaller sleeve around a compact carton may work well with moderate paperboard because the short panels naturally hold their shape. A wide sleeve around a larger box may need more caliper or stiffness to avoid bowing, curling, or becoming loose during handling.

I pay close attention to sleeve fit. A sleeve that is too tight can become difficult to slide over the inner carton and may scuff the printed surface during assembly. A sleeve that is too loose can move, rotate, wrinkle, or lose its intended visual alignment. GSM and caliper affect the internal dimensions of the sleeve, especially when the material folds around several panels. A thicker paperboard may create a more substantial sleeve, but it also changes the crease behavior and the allowance needed for the sleeve to slide smoothly around the inner pack.

I also consider friction between the sleeve and the inner packaging. A matte laminated sleeve over a matte laminated carton may move differently from an uncoated sleeve over a coated box. A textured sleeve may grip the inner pack more strongly than a smooth coated sleeve. These details affect how the packaging opens, how easily it can be assembled, and whether the sleeve remains in position during retail handling. I treat sleeve material as part of the complete opening experience, not only as a printed outer band.

Backing Cards and Retail Display Performance

I use backing cards when the product needs a flat paperboard support for display, hanging, branding, or product information. Backing cards are common for jewellery, accessories, apparel details, small electronics, beauty tools, promotional products, stationery, gift items, and retail components that need to be displayed on a peg hook or placed in a clear pouch.

Backing cards commonly use approximately 250 to 500 GSM paperboard, depending on the size of the card, the weight of the product, the attachment method, and whether the card must hang from a die-cut hole. A small card holding lightweight earrings or a hair accessory may need only moderate board weight. A larger backing card carrying a heavier product, several components, or a product attached by ties, clips, or adhesive may need more caliper and resistance to bending.

When I evaluate a backing card, I look at the area around the hang hole or product attachment point. These are often the highest-stress areas. A card may look firm when flat but tear or bend once it is suspended on a retail hook or pulled by the attached product. The size and shape of the hang hole, the distance between the hole and the top edge, the product weight, and the board grain direction can all influence how the card performs.

I also consider how the backing card will look after retail handling. A card with a large amount of printing, foil stamping, or lamination may need a board and finish that resist scuffing and edge damage. If the product is attached through the card, the attachment method may create pressure marks, bending, or visible distortion. The board should support both the product and the visual presentation without making the card unnecessarily thick or difficult to process.

Folding Paperboard Inserts and Product Positioning

I use folding paperboard inserts when the packaging needs an internal structure that can be die-cut, folded, and assembled into a product-supporting shape. These inserts can create trays, bridges, platforms, collars, product nests, folded supports, and compartments inside folding cartons or rigid boxes. They are often used for cosmetics, skincare products, gift sets, small electronics, accessories, fragrance packaging, and multi-item retail packs.

Folding paperboard inserts commonly use material in the range of approximately 250 to 400 GSM or around 10 to 20 PT, depending on the product weight and insert complexity. A simple folded insert holding a lightweight tube or accessory may work well with moderate board weight. An insert with several product openings, narrow support tabs, tall folded walls, or heavier products may need greater caliper, stronger material, or a more reinforced structure.

I do not evaluate a folding insert by GSM alone because the die-cut pattern changes the strength of the board. A flat sheet can appear strong, but once large holes, narrow bridges, crease lines, and locking tabs are cut into it, the remaining material may have much less resistance to bending. The position of the product cut-out is especially important. A large opening can weaken the insert if the product rests on only a few narrow paperboard areas.

I also consider the relationship between the insert and the outer box. The insert must fit inside the available internal space without creating pressure on the box walls or reducing the clearance needed for the lid, sleeve, or product. A thicker insert can provide better support, but it also occupies more space. I design the material choice around the real internal dimensions and product geometry rather than treating insert thickness as an isolated upgrade.

Paper Dividers and Multi-Product Separation

I use paper dividers when multiple products need to be kept separate inside one outer package. Dividers can reduce surface contact, organize product sets, create compartments, improve presentation, and limit product movement. They may be used for bottles, jars, candles, small boxes, accessories, gift-set components, food products, and other items that could touch or damage one another if packed loosely together.

Paper dividers commonly use material in the range of approximately 200 to 350 GSM, although the right choice depends on the divider height, the number of compartments, product weight, product shape, and shipping conditions. A low divider separating lightweight products may work with a moderate paperboard. A taller divider holding several heavy or fragile products may need stronger board, more caliper, additional locking features, or a different structural approach.

The strength of a divider depends heavily on its geometry. A long divider panel can bend if it spans too wide a distance without support. A cross-divider can become unstable if its slots are too loose or if the product pushes against one side more strongly than the other. A divider that looks stable when empty may move once the box is carried, tilted, or stacked. I consider the internal movement of the products, not only how the divider looks during assembly.

I also pay attention to the contact between the divider and the product. A paperboard divider can prevent products from touching, but it may not provide cushioning for fragile surfaces. A glass jar, coated bottle, polished metal item, or delicate product may need more than separation if it is likely to move during shipping. The divider material must be selected according to whether it is organizing the product, restraining the product, or protecting the product from impact.

Product-Supporting Inserts and Load-Bearing Requirements

I use product-supporting inserts when the internal packaging component must do more than create a neat presentation. A supporting insert may need to hold a heavy glass bottle, a fragrance product, a candle jar, an electronics device, a multi-piece gift set, or another product that could shift, tilt, scratch, or damage the outer box if it is not controlled properly.

These inserts often need more material strength than decorative sleeves, backing cards, or simple dividers. They may use stiff paperboard in the range of approximately 350 to 600 GSM, layered paperboard, reinforced folded structures, corrugated paper, or other paper-based constructions. The suitable material depends on the product weight, product shape, cut-out design, contact area, product center of gravity, and the distance the product can move inside the box.

I do not assume that a high-GSM insert will automatically support a heavy product. A thick board may still collapse if the product rests on a narrow tab, if the cut-out is too large, if the support panels are too tall, or if the load is concentrated near one edge. A well-designed folded paperboard insert can sometimes perform better than a heavier flat board because the folds create structural depth and distribute the product weight more effectively.

I also consider the product’s center of gravity. A tall bottle, heavy cap, glass jar, metal component, or electronic device may place more pressure on one section of the insert than another. If the product is top-heavy, the insert must prevent it from tipping or shifting. If the product has a narrow base, the insert must support the contact area without allowing the product to move sideways. The material choice must respond to the way the product behaves inside the package, not only to the total product weight.

Why Heavy or Fragile Products Need More Than Presentation Material

I distinguish between a presentation insert and a protection insert because they solve different problems. A presentation insert may hold a product visually in the center of the box and create a neat unboxing experience. It may only need enough stiffness to keep the product from looking loose. A protection insert must reduce movement, manage pressure, keep products separate, and help protect the item during packing, shipping, and handling.

A fragile or heavy product can damage the outer box if the insert does not control movement. A glass bottle may strike the box walls. A metal product may dent or scratch adjacent components. A candle jar may create pressure at the base. A product with sharp corners may cut into the paperboard during movement. In these situations, I do not rely on a decorative paper insert alone. The structure must support the real product load and the conditions the package will face.

The amount of protection required also depends on the shipping method. A gift box carried directly from a retail counter may need a different insert from a box packed inside a shipping carton and transported through multiple handling stages. I consider whether the product needs only presentation stability or whether it needs genuine movement control and structural support.

Die-Cut Openings, Tabs, and Paperboard Strength

I consider die-cut geometry because a paperboard component becomes weaker when material is removed. A large circular opening, narrow support bridge, small locking tab, long slit, or complex cut-out can reduce the amount of board available to carry the product. The GSM may remain the same, but the finished insert can behave very differently once it has been die-cut and folded.

A product opening should match the product shape closely enough to control movement without creating excessive pressure. If the opening is too large, the product may shift, tilt, or strike the box walls. If the opening is too tight, the product may be difficult to insert or remove, and the paperboard may deform or tear during repeated use. I consider both the product tolerance and the paperboard caliper when determining how the opening should work.

Tabs and locking features also need enough material width and strength to perform their function. A very narrow tab may bend or tear even when the board has a high GSM. A well-positioned fold, a wider support bridge, or a layered structure may improve performance more effectively than simply increasing the paper weight. I treat the die-cut pattern as part of the material specification because it directly changes how the board carries force.

Caliper, Folding Precision, and Internal Fit

I use caliper alongside GSM when the component has to fit inside a box with limited clearance. A folding paperboard insert may have several folded panels, multiple layers, and locking tabs. Every fold adds material thickness. If the board caliper is higher than expected, the insert may become too tight inside the box, interfere with the product, affect lid closure, or reduce the space available for an inner tray or lining paper.

A lower-caliper board may be easier to fold and assemble, but it may not create enough stiffness for the intended product. A higher-caliper board may provide more support, but it can create bulky folds, difficult assembly, or reduced internal space. I consider the component in its fully folded form rather than evaluating the material only as a flat sheet.

This is particularly important for drawer boxes, sleeves, close-fitting rigid boxes, product trays, and multi-layer inserts. A small change in paperboard thickness can affect the interaction between several components. I use the actual material caliper to understand the real internal dimensions rather than assuming that the nominal GSM gives enough information.

Paper Grain Direction and Insert Performance

I consider grain direction whenever the insert includes long folds, narrow tabs, deep creases, or panels that need to resist bending in a specific direction. Paper fibers tend to align more strongly in one direction during manufacturing, and this can influence the way paperboard folds, bends, and resists tearing. The same paperboard can behave differently depending on how the die-cut layout is placed on the sheet.

A fold that runs with the grain can have a different response from a fold that runs across the grain. This can affect whether the insert folds cleanly, whether it springs back after assembly, and whether the product openings remain aligned. When the insert uses dark printing, lamination, foil stamping, or a visible finished surface, grain direction can also affect the appearance of the fold line.

I do not treat grain direction as a minor technical detail when the insert has a structural role. A product-supporting insert must fold predictably and maintain its shape. If the board bends or cracks in the wrong direction, the product may not sit correctly even if the GSM and caliper appear suitable. I consider the material orientation as part of the finished insert design.

Print, Finish, and Surface Contact on Sleeves and Inserts

I consider print and finish differently depending on whether the component will be visible after the package is opened. A sleeve is usually highly visible and may carry the main branding, color, logo, product story, or decorative finish. A backing card can remain visible in retail display. An insert may be partly hidden, but it can still create a strong opening impression if the customer sees it when the box is opened.

A visible sleeve may use coated paperboard, matte lamination, gloss lamination, foil stamping, embossing, or other finishing because its role is primarily presentational. A structural insert may need a cleaner, more functional surface if its main role is to hold the product securely. I do not add finishes to a structural component without considering whether they affect folding, friction, product contact, or assembly.

Surface friction can also matter. A smooth laminated insert may allow a product to slide more easily than an uncoated or textured insert. A rough paper surface may hold the product more firmly but could create abrasion on delicate packaging or product surfaces. I consider the material surface where it touches the product, especially when the product has a glossy finish, metallic surface, coated label, glass body, or scratch-sensitive decoration.

Why the Outer Box and Insert Must Be Designed Together

I do not treat the insert as a separate item added after the outer box has been selected. The insert changes how the product fits, how the lid closes, how the internal space is used, how the product is presented, and how the outer box responds to pressure. A strong outer rigid box can still feel poorly designed if the insert allows the product to move. A well-designed insert can still fail if the outer box does not provide enough internal clearance or panel stability.

The outer box dimensions, greyboard thickness, lining paper, product dimensions, insert caliper, and product movement allowance must be considered together. An insert that fits perfectly in a flat layout may become too tight after the outer box is wrapped and assembled. A product opening that looks correct in a drawing may become too loose if the product has a curved body or changes position during transport. I use the physical product and actual material caliper to confirm the complete system.

I also consider the opening sequence. A sleeve may need to slide off smoothly before the product is revealed. A drawer may need to pull out without catching the insert. A lid may need to open without lifting the product. A presentation insert may need to guide the customer’s attention without making the product difficult to remove. The material choice should support the intended user experience as well as the structural requirement.

How I Read the Sleeves and Inserts Chart in Practice

I use the sleeves and inserts chart to begin with function rather than paper weight. I first decide whether the component is decorative, organizational, supportive, or protective. I then consider the product weight, product shape, product movement, box dimensions, internal clearance, die-cut design, fold lines, and visible surface requirements. GSM and caliper become useful only when they are read in relation to these practical conditions.

A decorative sleeve may need moderate board weight, accurate fit, clean print, and an appropriate surface finish. A backing card may need enough stiffness to remain flat and support a retail attachment point. A divider may need enough structure to keep products apart. A product-supporting insert may need stronger board, reinforced folds, carefully designed cut-outs, and a physical test with the real product.

When I read the chart in this way, I avoid treating all paper components as interchangeable. A sleeve, backing card, divider, and product-supporting insert can all be made from paperboard, but they perform different jobs. The correct material choice comes from understanding the component’s function first, then matching GSM, caliper, structure, and surface characteristics to the real packaging requirement.

Corrugated Packaging Specification Notes

I do not read corrugated packaging as a simple paper-weight conversion problem. A corrugated box is a layered engineered structure rather than a single sheet of paperboard. Its performance depends on the liner papers, the corrugating medium, the flute profile, the number of walls, the way the board is converted into a box, and the conditions the finished package will face during storage and transport.

For this reason, total GSM alone cannot tell me whether a corrugated box is strong enough. Two boards may have similar total paper weight but perform very differently. One may use stronger liner paper, a more suitable flute, better bonding, or a double-wall structure. Another may be heavier on paper weight but less effective for stacking, puncture resistance, edge compression, or product protection. I use GSM as background information, but I rely on the full corrugated specification to understand what the board can realistically do.

How I Read a Corrugated Board Specification

I read corrugated board as a system of layers and structural properties. The outer and inner liner papers create the flat surfaces of the board. The corrugating medium forms the fluted layer between them. The flute creates the board thickness, cushioning space, and part of its compression behavior. The final board may be single-wall or double-wall, depending on how much protection, stacking strength, and rigidity the package requires.

Corrugated Specification	What It Describes	Why It Matters
Liner paper	The flat outer and inner paper layers of corrugated board	Influences surface strength, print surface, puncture resistance and edge performance
Corrugating medium	The fluted paper layer between the liners	Creates cushioning, board thickness and part of the compression structure
Flute type	The shape, height and frequency of the fluted medium	Affects board thickness, crush resistance, printability and protection
Single-wall board	One fluted medium between two liner papers	Suitable for many retail, mailer and standard shipping applications
Double-wall board	Two fluted mediums with three liner layers	Provides greater thickness and strength for heavier products or more demanding transport
Overall board thickness	The finished depth of the corrugated board	Influences cushioning, panel stiffness, internal dimensions and box profile
Edge Crush Test	Resistance of corrugated board to compression on its edge	Helps indicate stacking and box-compression potential
Box Compression Test	The amount of top-to-bottom force a finished box can withstand	Helps assess whether a packed box can resist stacking pressure
Mullen test	Resistance of corrugated board to bursting pressure	Can be relevant when puncture or burst resistance is part of the packaging requirement

Liner Paper and Surface Strength

I consider liner paper important because it forms the outside and inside surfaces of corrugated board. The outer liner is often the visible layer that carries printing, labels, tape, or shipping information. The inner liner faces the product or internal packaging. Both layers contribute to the strength and behavior of the finished board.

A stronger or more suitable liner can improve the board’s resistance to puncture, edge damage, handling pressure, and surface wear. The liner quality also affects the print result when a corrugated box needs branding or retail presentation. A smooth white liner can support a different visual result from a brown kraft liner, but the appearance of the surface should not be confused with the overall structural strength of the box.

When I compare corrugated materials, I do not look only at the total paper weight. I consider what type of liner is used, how the liner works with the flute structure, and whether the finished box needs to prioritize printing, stacking, puncture resistance, retail presentation, or shipping protection.

Corrugating Medium and the Purpose of the Flute

I use the corrugating medium to understand how the board creates structural depth. The medium is formed into a fluted shape and bonded between the liner papers. This fluted layer creates space between the flat liners, which helps the board resist compression and provides some cushioning around the packed product.

The flute profile changes the behavior of the board. A finer flute can create a thinner board with a cleaner print surface and more compact profile. A larger flute can create greater thickness and more cushioning space. The most suitable flute depends on whether the box is intended for retail display, e-commerce mailing, inner packaging, shipping, stacking, or protection of a fragile product.

I do not assume that a thicker flute always provides the best packaging solution. A larger flute may create more protection and board depth, but it can also make the box bulkier and may not provide the same print surface or compact appearance as a finer flute. I choose the flute according to the product, box style, shipping requirement, and visual purpose of the packaging.

Flute Type and Overall Board Thickness

I consider flute type because it influences the thickness and character of corrugated board. E-flute is often used where a thinner, more refined board profile is needed, such as retail cartons, display packaging, product mailers, and branded e-commerce boxes. B-flute and C-flute are commonly used when greater cushioning and shipping strength are needed. Double-wall combinations such as BC-flute can be used when the product is heavier, more fragile, or expected to face more demanding distribution conditions.

Overall board thickness is useful because it affects internal dimensions, product clearance, cushioning space, and the physical feel of the box. However, thickness alone does not describe board strength. Two boards with similar thickness can perform differently if the flute construction, liner quality, medium quality, bonding, and board density are different.

I therefore use board thickness as part of the specification rather than treating it as a complete strength rating. A thicker corrugated board may provide more depth and cushioning, but the final performance still depends on the complete board construction and the way the finished box is designed.

Single-Wall and Double-Wall Corrugated Board

I use single-wall corrugated board when one fluted medium between two liner papers provides the required balance of protection, weight, printability, and cost. Single-wall board is commonly used for mailer boxes, retail shipping boxes, subscription packaging, product cartons, inner shipping cartons, and many standard e-commerce applications.

Double-wall corrugated board uses two fluted medium layers and three liner layers. This structure can create greater overall thickness, stronger panel behavior, and more resistance to compression for heavier products or more demanding shipping conditions. It may be appropriate for larger products, fragile products, bulk orders, industrial items, or boxes expected to carry higher stacking pressure.

I do not choose double-wall board simply because it is stronger. It also adds weight, bulk, material use, and internal space requirements. A smaller lightweight product may not need a double-wall construction if a suitable single-wall board and well-designed internal support provide the required protection. The board structure should match the real product risk rather than exceed the requirement without purpose.

What Edge Crush Test Measures

I use Edge Crush Test, commonly called ECT, to understand how corrugated board resists force applied to its edge. This is important because corrugated boxes often carry stacking pressure through their vertical edges and corners. A board with stronger edge-crush performance can generally support better box-compression behavior when the box is properly designed and assembled.

ECT is useful when I need to think about stacked cartons, warehouse storage, pallet loading, e-commerce shipping, or boxes carrying products that may be placed beneath other packages. However, I do not treat an ECT value as a complete guarantee of finished-box performance. The box dimensions, style, printing, humidity, product weight, pallet pattern, tape or glue closure, and handling conditions can all affect the real compression result.

I use ECT as one part of a broader corrugated specification. It helps describe board performance at the edge, but the final box must still be evaluated in relation to its size, shape, contents, and distribution environment.

What Box Compression Test Measures

I use Box Compression Test, commonly called BCT, to understand how much top-to-bottom compression a finished corrugated box can withstand before it collapses or deforms beyond an acceptable point. BCT is especially relevant when boxes may be stacked during storage, transportation, warehousing, or pallet distribution.

A finished box can have a good board specification and still show weaker compression performance if its dimensions are unsuitable, its height is excessive, its panels are too wide, its closures are weak, or its contents do not provide internal support. Humidity can also affect corrugated strength because paper-based materials may lose stiffness in damp conditions. I therefore read BCT as a box-level performance measure rather than only a paper-material value.

When I consider compression, I look at the full package. The corrugated board, box size, product weight, internal support, closure method, stacking height, and shipping conditions all influence whether the box can maintain its shape under load. BCT is useful because it brings the focus back to the finished box rather than the flat corrugated sheet alone.

What the Mullen Test Measures

I use the Mullen test when burst resistance or puncture-related performance is relevant. The test measures how much pressure corrugated board can resist before the surface ruptures. This can be useful in packaging situations where the box may face rough handling, internal pressure, or a higher risk of puncture.

Mullen performance should not be confused with ECT or BCT. ECT focuses on edge compression, while BCT focuses on the compression strength of the finished box. Mullen relates to the board’s resistance to bursting pressure. A packaging specification should use the test most relevant to the actual product and distribution risk rather than treating one test as a replacement for all other performance measures.

I consider Mullen information when the product or shipping environment creates a meaningful risk of surface rupture, puncture, or rough handling. However, I still evaluate the whole corrugated structure because no single test can fully describe every packaging risk.

Why GSM Is Not Enough for Corrugated Packaging

I do not use total GSM as a final indicator of corrugated-box strength because corrugated board is more than the combined weight of its paper layers. Two corrugated boards may have similar total GSM but use different liner qualities, different medium strength, different flute profiles, different wall constructions, or different manufacturing conditions. These differences can change how the board performs under compression, puncture, impact, stacking, and handling.

A board with a finer flute may have a different profile from a board with a larger flute even when their total paper weight is similar. A double-wall board may distribute force differently from a single-wall board. A stronger liner can improve edge performance and surface durability. Better bonding between the liner and medium can improve board stability. Moisture exposure and storage conditions can also affect the real strength of the finished material.

I therefore read total GSM as background information rather than as the primary corrugated specification. The useful questions are what liner papers are used, what flute type is used, whether the board is single-wall or double-wall, what the overall thickness is, what performance testing is relevant, and how the finished box will be used.

How I Use Corrugated Specifications in Practice

I use corrugated specifications by starting with the product and the distribution environment. I consider the product weight, fragility, shape, internal movement, shipping method, stacking requirement, and expected handling conditions. I then look at the liner paper, corrugating medium, flute type, wall construction, board thickness, and relevant performance measurements.

A lightweight retail mailer may need a different corrugated specification from a box carrying fragile glass products. A branded e-commerce box may need a clean printable surface and moderate protection. A heavier shipping carton may need stronger edge performance and more resistance to compression. The correct board is the one that supports the real product and transport requirement rather than the one with the highest total GSM.

This section is intended to clarify why corrugated packaging cannot be judged by paper weight alone. Corrugated board should be specified as a complete construction, with material layers, flute structure, board thickness, and performance requirements considered together.

How Paper Weight and Thickness Affect Packaging Performance

I use paper weight and thickness to predict how packaging may behave after it has been printed, creased, folded, assembled, filled, handled, and transported. GSM, PT, caliper, and board thickness are useful measurements, but their real value appears when they are connected to packaging performance. A higher number does not automatically mean a better package. The material has to match the carton structure, product weight, finish requirements, handling conditions, and the visual experience the packaging is expected to create.

When I assess a paper or board, I do not look only at how substantial it feels as a flat sheet. I consider how it will perform as a finished component. A folding carton must hold its shape without becoming difficult to crease. A paper bag must carry its intended load without tearing at the handles or base. A rigid box must remain square without using more greyboard than necessary. A sleeve must slide smoothly without becoming loose or damaged. An insert must control the product without taking up too much internal space.

This section connects the material measurements to these real packaging outcomes. I focus on rigidity, folding accuracy, edge cracking, color appearance, finishing behavior, and the practical reasons why thicker paper is not always the best solution.

Rigidity and Shape Retention

I consider rigidity and shape retention when the packaging needs to remain straight, stable, and visually controlled after it is assembled. A carton may need to stand upright on a shelf. A sleeve may need to remain tight around an inner box. A backing card may need to stay flat on a retail hook. An insert may need to hold a product in the correct position. A rigid box may need to keep its lid and base aligned through repeated handling.

GSM, caliper, and stiffness are related, but I do not treat them as interchangeable. GSM tells me how much material is present across one square meter. Caliper tells me the physical thickness of the material. Stiffness describes how strongly the board resists bending. A higher GSM board may contain more material, but it may not always be thicker. A higher-caliper board may create more physical body, but it may not always have the same bending resistance as another board of similar thickness.

Thickness often has a strong influence on how well a board resists bending because a thicker sheet creates greater separation between its outer surfaces. This can help a folding carton hold its shape, support wider panels, and feel more substantial in the hand. However, the fiber structure, density, board grade, grain direction, moisture condition, and carton dimensions also influence real rigidity. A compact dense board and a bulkier board may have different stiffness even when their GSM values are similar.

When I evaluate shape retention, I also consider the size of the packaging panels. A small carton with short walls may remain stable with a moderate board weight because the panels do not need to span a wide distance. A larger carton with broad front panels, tall side walls, or a heavy product may need more caliper, a stiffer board grade, a better locking structure, or internal support. I do not solve every shape-retention issue by choosing heavier paper. Sometimes a more suitable structure, a stronger insert, a different box proportion, or an improved locking design can create a better result.

I also consider how the product supports the package from within. A carton holding a close-fitting product may receive some internal support. A box with empty space around the product may rely more heavily on the board and insert structure. A rigid box with a correctly fitted insert can remain stable even when the product is heavy, while a box with too much internal movement can feel weak regardless of the board thickness. The outer board, the product fit, and the internal support should work together.

Scoring and Folding

I pay close attention to scoring and folding because paperboard must be weakened in a controlled way before it can become a clean carton shape. A score line creates a planned folding path. It allows the board to bend where it should bend rather than cracking, tearing, or folding unevenly across the printed surface. The correct score depth and crease channel depend on the board caliper, density, grain direction, coating, and finish.

A thicker or denser board generally needs a crease that is matched to its physical properties. If the crease is too shallow, the board may resist folding, spring back after assembly, or create an uneven carton shape. If the crease is too aggressive, the board surface may crack, weaken, or show a rough fold line. I do not judge the board only by whether it can be folded. I look at whether it can be folded accurately, consistently, and cleanly across the entire carton structure.

Folding resistance becomes more important as board caliper increases. A high-caliper carton can feel more substantial, but it can also require more force to fold. This affects tuck-end boxes, reverse tuck cartons, auto-bottom structures, sleeves, trays, and cartons with narrow tabs or multiple fold-back panels. If the material is too thick for the structure, the carton may become difficult to assemble, the tabs may not lock cleanly, or the finished dimensions may shift because the folded panels occupy more space than expected.

I also consider the relationship between board density and crease performance. A compact dense board may fold differently from a bulkier board at the same GSM. The denser board may require a different crease setting because its fibers are compressed more tightly. The bulkier board may create greater caliper and require more allowance around folds. This is why I do not use one crease approach for every paperboard simply because the GSM number is similar.

Grain direction also influences folding behavior. Paper fibers tend to align more strongly in one direction, and the board can fold differently depending on whether the crease runs with or across the grain. A fold in one direction may appear cleaner and more stable, while a fold in another direction may show more resistance, cracking, or spring-back. I consider grain direction when a carton has important visible folds, large panels, tight creases, or a structure that needs to assemble with high accuracy.

Edge Cracking

I consider edge cracking one of the most visible signs that paperboard, printing, creasing, and folding have not been matched correctly. Edge cracking occurs when the surface of the paper or finish breaks, splits, or becomes visibly stressed along a fold line. It can appear as white fibers showing through dark artwork, broken ink coverage, cracked lamination, damaged foil, or a rough irregular fold edge.

The paperboard grade influences cracking risk because different boards have different fiber structures, coatings, densities, and surface properties. A board with a smooth coated surface may produce sharp printing, but the coating can show stress more clearly at a fold. A natural kraft board may have a different fold appearance because its fibers and surface texture remain visible. A recycled board may have different edge behavior from a virgin-fiber board at the same GSM. I consider the board grade before I assume that the issue is caused only by paper thickness.

Grain direction can strongly affect edge cracking. When the board folds in a less favorable direction, the fibers may resist the crease more strongly and the surface may become more likely to crack. This can be especially visible on cartons with dark solid colors, black ink, deep blue surfaces, full-coverage artwork, or matte finishes. A small amount of cracking that would be unnoticed on a light natural design can become highly visible on a dark luxury carton.

Printing coverage also affects how the fold line appears. Large solid-color areas can make the smallest surface break easier to see. Heavy ink coverage can create a less flexible surface layer, especially when combined with coating, lamination, or multiple print passes. I consider whether the artwork can avoid placing critical color areas, fine graphics, or important logos directly across high-stress folds. The material and artwork should support each other rather than compete at the crease line.

Lamination can reduce or change the appearance of cracking, but it can also create its own fold behavior. Gloss, matte, and soft-touch films can react differently when bent. A laminate may help the surface remain visually continuous in some situations, but it can also show white stress marks, lifting, or visible tension if the board, crease, and fold are not suitable. I do not treat lamination as a guaranteed solution to cracking. I consider the entire material stack, including paperboard, ink, laminate, crease, and folding direction.

Crease quality is equally important. A good board can still crack if the score line is poorly matched to the caliper or if the crease is not applied consistently. I look at the fold as a combined production result. The board must have a suitable fiber structure, the print and finish must tolerate bending, the score must create enough controlled weakness, and the fold must follow the intended direction. Edge cracking is rarely caused by one factor alone.

Printing and Color Appearance

I consider paper weight and thickness together with the paper surface because the surface determines how ink, color, texture, and light behave on the finished packaging. Two boards may have similar GSM and caliper, but their printed appearance can differ significantly if one is coated, one is uncoated, one is white kraft, one is brown kraft, one is recycled, or one has a textured finish.

Coated paperboard usually provides a smoother and more even print surface. This can support detailed graphics, fine typography, gradients, small text, and stronger color reproduction. The coating helps the ink sit closer to the surface rather than absorbing deeply into the fibers. This can make colors appear cleaner, sharper, and more saturated. I consider coated board when the packaging design depends on precise visual detail, photographic images, detailed illustrations, or close color control.

Uncoated board behaves differently because it can absorb more ink into the paper fibers. This can create a softer, more natural, and less reflective printed result. Colors may appear warmer or less saturated than they do on coated board. I do not see this as a disadvantage when the intended design direction is tactile, natural, editorial, or understated. However, I do not expect uncoated material to reproduce the same visual result as a glossy coated board.

Whiteness affects color appearance as well. A bright white paperboard can provide a neutral base for printed colors. A warm white board can make colors appear slightly softer or warmer. Brown kraft changes the appearance of almost every ink placed on it because the natural base influences the visible color. White ink may be needed when the design requires stronger contrast or clearer light-colored graphics. I choose the paper base according to the desired color result rather than assuming that the same artwork will look identical across every material.

Texture can create another visual change. A linen, laid, ribbed, kraft, or embossed surface can add tactile depth, but it can also affect fine-print clarity and color uniformity. A textured surface may work beautifully with a bold logo, foil stamp, or simple graphic composition, while very fine text or subtle gradients may be less clear. I consider whether the material texture supports the artwork before treating it as only a decorative choice.

Paper absorbency also affects ink behavior. More absorbent papers can allow ink to spread slightly into the fibers, which may reduce sharpness in very fine details. Less absorbent coated surfaces can support more precise edges, but they may show fingerprints, scuffs, or surface scratches more easily depending on the finish. I choose the paper surface according to how the design should look after printing, finishing, handling, and retail display.

Lamination, Foil Stamping, and Embossing

I treat finishing as part of the material decision because lamination, foil stamping, embossing, and debossing all depend on the surface beneath them. A finish can improve the visual and tactile quality of packaging, but it can also change the way the paperboard folds, reflects light, resists scuffing, reacts to pressure, and appears at edges and corners.

Lamination adds a film over the printed paperboard or wrapping paper. Gloss lamination can create a brighter, more reflective appearance and may help protect the printed surface. Matte lamination can create a softer and more understated look. Soft-touch lamination can add a velvety tactile quality that is often associated with premium packaging. However, each lamination type changes the material behavior. It can increase surface thickness, reduce flexibility, affect crease response, and make certain marks more visible.

I consider the relationship between lamination and the underlying board. A laminated material may look smooth on a broad panel but show tension or cracking at a sharp fold if the board caliper and crease are not suitable. Dark matte surfaces can be particularly sensitive to scuffing and pressure marks. Soft-touch surfaces can feel premium but may show fingerprints or rub marks during packing and handling. I select the finish according to how the packaging will be used, not only according to how it looks in a flat visual mockup.

Foil stamping depends on the smoothness, texture, and compressibility of the paper surface. A smooth coated board can support sharp foil edges and detailed logo work. A textured paper can create a more tactile foil effect, but fine foil details may become less precise because the foil follows the paper texture. A kraft surface can create a striking contrast with metallic foil, but the natural fibers may make the result feel more organic than highly polished.

I also consider foil placement. Foil positioned too close to a crease, fold, wrapped corner, or high-contact edge can face more stress during assembly and handling. The foil may remain visually strong on a broad flat panel but become more vulnerable at a fold. I place critical foil details where the surface remains relatively stable and where the paper can support the finish without excessive distortion.

Embossing and debossing depend on paper compressibility. A paperboard or wrapping paper needs enough body to show the raised or recessed effect clearly, but it must not be so rigid that the pressure creates an uneven or damaged surface. A smooth paper can show precise embossing. An uncoated paper can create a softer tactile result. A textured paper can produce a layered effect, but the existing texture may compete with subtle embossed details.

I treat embossing, debossing, foil stamping, and lamination as physical processes rather than graphic effects added after the material has been selected. The paper surface, GSM, caliper, coating, texture, fold lines, board thickness, and intended handling all influence whether the finish will remain clean and consistent on the completed packaging.

Why Thicker Paper Is Not Always Better

I do not assume that thicker paper automatically creates better packaging. Thicker paper can improve body, rigidity, and perceived quality in the right application, but it can also create unnecessary cost, additional package weight, tighter internal dimensions, more difficult folding, more visible crease stress, and more demanding production conditions.

A thicker folding carton board may make a small box feel more substantial, but it may also make tuck tabs harder to close, sleeves tighter to assemble, and folded seams bulkier. A thicker insert may create better support, but it can reduce the space available for the product and make the box difficult to close. A thicker wrapping paper may provide more opacity, but it may create bulky corners on a rigid box. A thicker greyboard may create stronger walls, but it may add weight and reduce internal clearance without improving the actual product protection.

I also consider shipping and logistics. Additional material thickness can increase the weight and external dimensions of packaging. For high-volume orders, even small increases in material weight can affect total packing weight, storage volume, and transport efficiency. The material should be strong enough for the real packaging requirement, but it should not create unnecessary bulk or cost that does not improve performance.

Production difficulty is another reason I avoid choosing the thickest option by default. Higher-caliper board may require different creasing, deeper channels, stronger folding control, larger sleeve allowances, or adjusted die-cutting settings. A thicker material can also change how lamination, foil stamping, embossing, and gluing behave. If the carton structure was designed for a thinner board, simply increasing thickness can create fit problems rather than improving quality.

I select paper weight and thickness according to function. A lightweight cosmetic carton may need excellent print quality and clean folding rather than maximum board thickness. A large product box may need a better structural design or insert rather than only heavier paperboard. A premium rigid box may need the correct balance of greyboard thickness and wrapping-paper flexibility rather than the heaviest possible materials. The best packaging material is the one that performs properly in the finished structure, protects the product, supports the design, and remains practical to produce, assemble, ship, and use.

Why “350 GSM Paper” Is Not a Complete Material Specification

I treat “350 GSM paper” as the beginning of a material description, not the final specification. The phrase tells me one useful fact: the material weighs 350 grams per square meter. It does not tell me which paperboard grade is being used, how thick the board is, how stiff it is, whether it is coated, how it will print, how it will fold, whether the surface is white or natural kraft, or whether the material will remain consistent across later production runs.

This matters because two paperboards can both be 350 GSM and still create very different packaging results. One may be a compact white coated board with a smooth print surface. Another may be a bulkier folding boxboard with greater caliper. Another may be coated recycled board with a different reverse-side appearance and edge behavior. Another may be natural kraft board with a brown surface, visible fibers, and a different color result after printing. The GSM is identical, but the finished cartons may not look, feel, fold, or perform in the same way.

When I read a packaging material specification, I want enough information to understand the actual board rather than only its weight. A complete specification should explain what the material is, how thick it is, how it behaves, how it should look, and how consistent it needs to remain. This is particularly important when the packaging includes premium printing, close-fitting sleeves, complex folds, product-supporting inserts, repeated orders, or several SKUs that need a consistent material appearance.

What a Complete Paperboard Specification Contains

I use the table below to show the difference between a simple paper-weight description and a complete material specification. Each field answers a different question. Together, they create a more reliable basis for comparing material options, reviewing samples, and understanding whether two specifications actually describe the same paperboard.

Specification	What It Describes	Why It Matters
Paper grade	Material composition, board construction and surface type	Affects thickness, print quality, folding behavior, stiffness and visible appearance
GSM	Weight per square meter	Identifies the material weight, but does not define thickness or strength by itself
Actual caliper	Physical thickness of the selected board	Confirms the real board depth and affects folding, fit, sleeve clearance and carton dimensions
Stiffness	Resistance to bending	Affects shape retention, panel stability, insert performance and carton structure
Grain direction	Fiber orientation in the board	Affects folding, creasing, warping and the appearance of fold lines
Coating	Surface treatment on one side, both sides or neither side	Affects print reproduction, glue behavior, lamination, foil stamping and surface feel
Color or whiteness	Base-paper appearance	Affects printed color, contrast, brand consistency and the visual result of light or dark artwork
Tolerance	Acceptable variation in material properties	Helps define consistency in GSM, caliper, color, stiffness and finished packaging performance
Material source	Paper mill, paper supplier or identified board source	Helps control repeat production and reduces uncertainty when material availability changes

What “350 GSM” Actually Tells Me

I use the GSM figure to understand the mass of the material across one square meter. A 350 GSM board weighs 350 grams for every square meter of board. This can help me place the material in a general category. For many folding carton applications, 350 GSM may suggest a medium-to-heavy paperboard direction. It may be used for premium cartons, cosmetics packaging, retail boxes, sleeves, backing cards, inserts, or other components that need more body than lightweight paper.

However, GSM does not tell me the board’s actual thickness. A compact 350 GSM board can have a lower caliper than a bulkier 350 GSM board. The difference can affect how the carton folds, how much space the material occupies at seams, how a sleeve fits around an inner box, and how substantial the finished package feels in the hand.

GSM also does not tell me the paper grade. A 350 GSM SBS board, FBB board, coated recycled board, and natural kraft board may all have different fiber structures, surfaces, stiffness levels, and print behavior. I do not use the GSM figure to assume that the boards are interchangeable. The board grade gives the GSM value its packaging meaning.

Why Paper Grade Changes the Meaning of 350 GSM

I consider paper grade one of the most important parts of a complete specification because it tells me what the board is made of and how it is intended to perform. A paperboard grade can describe whether the board uses virgin bleached fibers, a folding boxboard structure, recycled fiber content, natural kraft fibers, a coated surface, or a particular combination of these properties.

A 350 GSM SBS board may provide a smooth white print surface, controlled color reproduction, and a compact board feel. A 350 GSM folding boxboard may provide greater bulk and a different caliper at the same weight. A 350 GSM coated recycled board may have a different reverse-side color, surface texture, edge quality, and folding behavior. A 350 GSM natural kraft board may create a brown fiber-based appearance and affect how colors, white ink, and finishes appear.

I do not treat one board grade as automatically better than another. Each grade can be appropriate for different packaging requirements. The important point is that the paper grade must be identified. Without that information, “350 GSM paper” does not tell me whether the board will deliver the intended print surface, caliper, stiffness, folding response, or final visual result.

Why Actual Caliper Must Be Confirmed

I use actual caliper to understand the real thickness of the selected board. GSM tells me the weight of the material, but caliper tells me how much physical space the board occupies. This becomes important whenever the packaging has folds, sleeves, inserts, close-fitting lids, product cut-outs, internal trays, or components that need to fit together accurately.

A 350 GSM board may have a different caliper depending on its density, bulk, coating, fiber composition, and manufacturing process. One board may be relatively compact and thin. Another may be thicker and bulkier. The difference can affect the crease settings, fold allowances, internal carton space, sleeve clearance, glue seam thickness, and final dimensions of the assembled package.

I do not estimate caliper from GSM when the structure depends on physical fit. If a sleeve needs to slide over an inner carton, if an insert needs to hold a product precisely, or if a folding carton has tightly controlled dimensions, the actual board thickness should be known. A small difference in caliper can become more noticeable once the board is folded into several layers.

Why Stiffness Is Not the Same as GSM or Caliper

I use stiffness to understand how the board resists bending. A material may be thick but not provide the same panel stability as another board of similar caliper. A material may be heavy but not resist bending in the same way as a bulkier or differently constructed board. Stiffness depends on the board’s thickness, density, fiber structure, grain direction, moisture condition, and manufacturing process.

This matters when a carton has wide panels, tall walls, a heavy product, or a structure that needs to maintain a clean rectangular shape. A box can have a suitable GSM and caliper but still bow if the board stiffness is insufficient for the panel span. A backing card can have a high paper weight but still bend under a retail product if the card is too large or the product attachment creates leverage at one point.

I also consider stiffness in relation to the direction of the board. Paper fibers generally align more strongly in one direction, and the board can resist bending differently depending on the grain orientation. A carton may feel stable in one direction but bend more easily in another. I therefore do not use a general stiffness assumption without considering the structure and grain direction of the material.

Why Grain Direction Belongs in the Specification

I consider grain direction because it affects how paperboard folds, bends, warps, and responds to creasing. During paper manufacturing, fibers tend to align more strongly in one direction. This creates a machine direction and a cross direction, and the board can behave differently depending on how the carton dieline is placed on the sheet.

A fold that runs in one direction may crease more cleanly than a fold that runs in the other direction. The difference may influence whether the carton opens smoothly, whether a sleeve remains square, whether an insert locks correctly, and whether a visible fold line shows cracking or stress. When the packaging uses high-caliper board, dark printing, lamination, foil stamping, or premium surface finishes, grain direction becomes even more important because poor fold behavior can become highly visible.

I also consider grain direction when the packaging includes wide panels or flat surfaces. Paperboard can respond to humidity differently in each direction, which may influence flatness or warping. A carton that is structurally accurate when produced may change slightly if the material is exposed to moisture or stored in a different climate. Grain direction is therefore not only a technical manufacturing detail. It can influence the appearance and dimensional stability of the finished package.

Why Coating Must Be Specified

I use coating information to understand the surface of the board. A board may be coated on one side, coated on both sides, lightly coated, heavily coated, or uncoated. These differences affect print quality, color reproduction, ink absorption, glue behavior, lamination, foil stamping, embossing, and the way the surface reacts at fold lines.

A coated surface can provide a smoother base for detailed printing, fine text, gradients, photographs, and strong color reproduction. An uncoated surface can create a softer, more tactile, and more natural printed result. A coated one-side board may be suitable when the exterior requires high-quality graphics while the reverse side does not need the same finish. A coated two-side board may be more suitable when both the exterior and interior surfaces are visible and need consistent printing.

I do not assume that coating only affects appearance. It can also influence the production process. A coated surface may require careful adhesive selection in glue areas. A laminated coated board may fold differently from an uncoated board. A coating can make surface cracking more visible at a crease line. The coating arrangement should be identified so that the board, artwork, finish, and carton structure can be considered together.

Why Color and Whiteness Affect the Final Print Result

I consider paper color and whiteness because the base board influences every printed color placed on top of it. A bright white board can provide a neutral base for accurate color reproduction. A warm white board can soften the appearance of certain colors. A natural kraft board can shift the appearance of inks because the brown fiber surface remains visible beneath the print. A recycled board may have a different shade or reverse-side tone that affects the final package appearance.

The same artwork can look different on different boards. A pale color may appear clean and bright on white coated board but more muted on uncoated stock. A dark color may look deeper on one surface and more textured on another. White ink on kraft can create contrast, but the result will still differ from printing directly on a white substrate. I choose the base-paper color according to the intended packaging appearance rather than treating the board as an invisible background.

Color consistency also matters across multiple SKUs and repeat orders. If one box uses a bright white board and another uses a warmer white board, the same brand color may appear different. This can be noticeable in product lines where cartons are displayed together. I consider the board whiteness part of the visual specification when brand consistency is important.

Why Tolerances Define Material Consistency

I use tolerances to understand what degree of material variation is acceptable. Paper and board are manufactured materials, and some variation in GSM, caliper, color, moisture, stiffness, and surface character can occur. A complete specification should make clear which variations are acceptable for the packaging requirement and which changes would affect the final result.

Caliper tolerance can matter when the packaging includes sleeves, close-fitting inserts, trays, drawers, or structures with limited internal clearance. A small thickness difference may not matter for a simple large carton, but it can affect fit in a tight rigid box or a precision insert. Color tolerance can matter when cartons need to match across multiple SKUs. Stiffness variation can matter when wide cartons need to retain shape or when inserts need to hold the product consistently.

I do not view tolerances as unnecessary technical detail. They help define the difference between a material that is generally similar and a material that performs consistently in the final package. The more precise the structure, finish, and visual expectation, the more important it becomes to understand what variation is acceptable.

Why Material Source Matters for Repeat Production

I consider the material source because a paperboard grade name and GSM figure may not fully protect consistency if the actual source changes. Different mills or suppliers can produce boards with different bulk, caliper, whiteness, coating, stiffness, surface texture, and folding behavior even when the nominal GSM appears similar.

A substitute board may technically meet the same GSM requirement but still create a different packaging result. The carton may feel thicker or thinner. The artwork may appear slightly different. The fold line may crack more easily. The sleeve may fit differently. The board may respond differently to lamination, foil stamping, embossing, or glue. These differences are especially important when packaging needs to remain consistent across repeat orders or multiple product lines.

I do not assume that a similar material name means the same final board. Identifying the paper grade and material source creates a clearer reference point. This does not mean that no material change is ever possible. It means that a change should be evaluated according to the actual properties that affect the finished package rather than only the GSM number.

How I Compare Two “350 GSM” Specifications

When I compare two specifications that both state 350 GSM, I do not begin by assuming they are the same. I first identify the board grade. I then compare the actual caliper, stiffness, coating, color, grain direction, and intended application. A 350 GSM SBS board and a 350 GSM FBB board may both be suitable for folding cartons, but they may not create the same physical thickness, print surface, or carton feel.

I also consider the carton structure. A simple small carton may accept several board options without a noticeable difference. A premium carton with dark artwork, tight folds, a sleeve, a close-fitting insert, or a large panel may respond very differently to small changes in the board. The more demanding the packaging design, the more complete the material specification needs to be.

The purpose of a full specification is not to make material selection unnecessarily complicated. It is to make the expected result clearer. If the packaging needs a particular thickness, color, fold quality, stiffness, or repeat-order consistency, those properties should be described directly rather than assumed from GSM.

The Real Meaning of “350 GSM Paper”

I use “350 GSM paper” as a useful material-weight reference, but I do not treat it as a complete packaging instruction. It identifies one characteristic of the material: its mass per square meter. It does not identify the paper grade, actual caliper, stiffness, grain direction, surface coating, base color, acceptable variation, or material source.

A complete specification tells me what the board is, not only how much it weighs. It explains how the paper should print, fold, feel, fit, and perform in the final package. This is what allows a material description to move beyond a general reference and become a reliable foundation for packaging production.

The practical conclusion is simple. “350 GSM paper” is not wrong, but it is incomplete. I use it as the first line of a material specification, then add the information needed to define the actual paperboard and the finished packaging result.

How to Verify Paper Specifications Using a Physical Sample

I use a physical sample to verify the material that will actually become the packaging, not simply to confirm whether the design looks attractive. A digital artwork file can show the logo, color layout, and general appearance of a carton. A written specification can state the GSM, board grade, caliper, and finishing. However, neither one can fully show how the selected paper or board will feel, fold, print, resist pressure, hold its shape, or respond when it becomes a finished package.

A physical sample brings the material, structure, print, and finish together. It allows me to compare the written specification with the actual board in front of me. I can see whether the surface is coated or uncoated, whether the board has the expected thickness, whether the carton folds cleanly, whether the print color suits the paper base, and whether the finished structure performs as intended.

I do not treat every sample as the same type of reference. A loose paper swatch can help confirm surface, color, texture, and approximate caliper. A blank structural sample can help confirm dimensions, folds, fit, and product position. A printed sample can help confirm artwork, color, coating, lamination, foil stamping, embossing, and visual presentation. A fully approved physical sample can become the most useful reference because it shows how all of these elements work together in the finished packaging.

Why a Physical Sample Matters More Than a Written GSM Value

I use the physical sample because a written GSM value does not reveal the complete material behavior. A specification may state 350 GSM, but that number does not show whether the board is SBS, FBB, coated recycled board, natural kraft board, or another paperboard grade. It does not show actual caliper, stiffness, surface smoothness, fiber texture, color, grain direction, fold response, or edge appearance.

Two boards can both be listed as 350 GSM and still produce different cartons. One may be thicker, bulkier, or stiffer. One may have a brighter white surface. One may fold more cleanly. One may show more cracking under dark print or lamination. A physical sample allows me to identify these differences before the material is used across a full packaging production run.

I also use the sample to assess the interaction between the material and the packaging design. A board that looks suitable as a flat sheet may become difficult to fold once it receives a full-color print, matte lamination, foil stamp, or deep crease. A wrapping paper may look refined in a swatch book but show adhesive marks or corner stress when it is applied over greyboard. The physical sample reveals the practical result rather than only the intended specification.

Check the Material Grade

I begin by confirming whether the physical sample matches the paper grade stated in the specification. The paper grade describes the material family, fiber composition, board construction, coating arrangement, and expected surface behavior. It helps explain what the material is, not only how much it weighs.

If the specification describes SBS, I expect a board that is generally associated with a clean white surface and a refined print result. If it describes folding boxboard, I expect a board that may provide more bulk or caliper at a similar GSM. If it describes coated recycled paperboard, I look at the print side, the reverse side, the board tone, edge behavior, and overall surface consistency. If it describes natural kraft board, I look for the brown or white kraft appearance, visible fiber character, and the way the base paper influences printed color.

I do not rely only on the material name written on a sample label. I examine the surface and physical feel. I compare the brightness or natural tone, the coated or uncoated character, the smoothness, the edge appearance, and the way the board responds when lightly bent. These observations do not replace a formal material data sheet, but they help confirm whether the physical stock appears consistent with the grade that has been specified.

I also distinguish between paper grade and coating description. A board may be SBS and coated on one side, or it may be coated on both sides. The coating changes the print surface and can influence gluing, lamination, foil stamping, and folding behavior. When I check a physical sample, I look at both sides of the board because the reverse side may matter for the inside of the carton, the glue flap, visible internal panels, or the overall opening experience.

How I Compare the Sample With the Material Description

I compare the sample with the material description by asking whether the physical characteristics make sense together. If the board is described as a white coated folding carton material, I expect a reasonably smooth printable face and a board color that supports the intended artwork. If the material is described as kraft, I expect the natural fiber character to influence the surface and printed color. If the material is described as recycled board, I expect that the reverse side, board tone, or surface texture may differ from a virgin-fiber board.

I also consider whether the selected grade is suitable for the intended component. A decorative sleeve may need a clean print surface and controlled caliper. A product-supporting insert may need more structural resistance. A backing card may need enough stiffness around the hang hole. A folding carton may need a board that can crease and fold accurately. The material grade should make sense not only as a paper category but also as a solution for the packaging function.

Measure the Caliper

I measure caliper when the physical thickness of the paper or board affects fit, folding, structure, or presentation. Caliper is the actual distance from one surface of the material to the other. It may be measured in points, millimeters, microns, or thousandths of an inch. Unlike GSM, caliper tells me how much physical space the selected material occupies.

A thickness gauge or micrometer is useful because it allows me to measure the real board rather than estimate thickness from GSM. I place the sample between the measuring surfaces carefully and use the instrument to obtain a caliper reading. The goal is not to squeeze the material aggressively or to measure a damaged edge. The goal is to understand the natural thickness of the selected stock under a consistent measuring method.

I do not take only one measurement in one location. Paperboard can show slight variation across a sheet, and one reading may not represent the whole material. I measure more than one area of a clean flat sample, avoiding creases, folds, glued seams, embossed areas, die-cut edges, foil-stamped areas, and visibly compressed regions. This gives a more realistic sense of whether the board thickness is consistent.

For a folding carton, caliper affects score settings, fold allowances, sleeve fit, glued seams, insert clearance, and final carton dimensions. For a rigid box, greyboard thickness affects the lid fit, base dimensions, internal space, edge depth, and overall structural feel. For wrapping paper, caliper can affect opacity, corner wrapping, flexibility, and the risk of showing the board surface beneath it. I measure caliper because the finished packaging is three-dimensional, and material thickness becomes more important after folding and assembly.

Why Multiple Caliper Measurements Matter

I take measurements at multiple positions because paperboard may not behave as one perfectly uniform sheet. The center of the board, the edge areas, and different positions across the sheet can sometimes show small differences. Those differences may not matter for a simple large carton, but they can become important when the packaging has close-fitting sleeves, tight drawers, layered inserts, narrow fold allowances, or multiple panels that must align accurately.

A single reading can also be misleading if it is taken near a crease, a folded edge, a glue area, or a section that has been compressed during handling. I want the measurement to represent the flat board itself. When I compare two samples, I use the same measuring approach so that the comparison is meaningful.

I do not expect every small caliper difference to create a packaging failure. I consider the difference in relation to the structure. A small variation may be acceptable in a simple large gift carton. The same variation may be more important in a rigid drawer box, a close-fitting sleeve, a product insert with tight openings, or a carton where several folded layers meet in one area.

Check Folding and Creasing

I check folding and creasing because a board can look correct before conversion but behave differently once it becomes a carton. Folding reveals how the fiber structure, caliper, density, coating, grain direction, print coverage, and crease setting work together. A successful fold should guide the board into the intended shape without excessive resistance, surface cracking, uncontrolled spring-back, or deformation of the carton panels.

I first observe the resistance of the board as it folds. A board that feels too rigid at the crease may require more force than expected and may not close accurately. The carton may spring open slightly after folding, the tabs may not lock cleanly, or the panels may become misaligned. This can happen when the board is thicker, denser, or stiffer than the structure and crease settings were designed to accommodate.

I then look for cracking along the fold. Edge cracking can appear as exposed white fibers, broken ink, surface splits, damaged coating, stressed lamination, or disrupted foil stamping. The risk can increase when the board has heavy caliper, dark print coverage, a coated surface, a rigid laminate, or an unfavorable grain direction. I examine the fold under normal viewing light because some surface damage becomes more visible when the carton is tilted or handled.

I also check for spring-back. Spring-back occurs when the board tries to return toward its original flat state after folding. A small amount of natural resistance may be expected, but excessive spring-back can affect sleeve fit, tuck-end closure, carton squareness, drawer movement, and the alignment of glued seams. I consider whether the board, fold direction, and structural design create a stable finished shape.

Deformation is another important sign. A fold may not crack, yet the board can still become distorted if the crease is unsuitable. Panels may bulge, edges may become uneven, corners may lose their sharpness, or locking tabs may shift out of position. I evaluate the whole carton after folding, not only the individual crease line.

Why Blank Structural Samples Are Useful

I use a blank structural sample when I want to evaluate material behavior without the visual distraction of printing and finishing. A blank sample can show whether the board folds cleanly, whether the carton dimensions are correct, whether the tabs lock, whether the product fits, whether the insert holds its shape, and whether the packaging can be assembled consistently.

Without printed artwork, I can focus on the physical structure. I can see whether the board is too thick for the fold lines, too flexible for the panel span, too bulky for the sleeve, or too stiff for the carton style. I can also observe whether the product moves, whether the insert creates pressure, and whether the lid or closure works as intended.

A blank sample does not replace a printed and finished sample, but it helps separate structural issues from visual issues. If a blank carton does not fold or fit correctly, the material or structure should be resolved before the final printing and finishing are treated as approved.

Examine the Printed and Finished Surface

I examine the printed and finished surface on the actual selected stock because the same artwork can look different on different paper grades. The paper color, whiteness, coating, texture, absorbency, and surface smoothness all influence how ink appears. A digital proof can show the layout and approximate color direction, but it cannot fully reproduce the interaction between ink and the chosen paperboard.

I check whether the printed color suits the paper base. A bright white coated board may produce cleaner and more saturated colors. An uncoated board may create a softer and more natural result. Brown kraft can influence every printed color because the natural base remains visible beneath the ink. Recycled board may have a warmer tone or more visible fiber texture. I evaluate whether the final printed result supports the intended packaging appearance rather than assuming every surface will reproduce the artwork identically.

I also inspect the coating and lamination. Gloss lamination can create a reflective polished surface, while matte lamination can create a softer visual effect. Soft-touch lamination can add a premium tactile feel. However, I check whether the surface shows scuffing, fingerprints, pressure marks, bubbles, uneven tension, or visible stress at the folds. A finish can look excellent on a broad flat panel but reveal problems around corners, crease lines, glued edges, or high-contact areas.

Foil stamping should be checked for coverage, sharpness, edge definition, and placement. I look at whether fine foil lines remain clear, whether the foil sits evenly on the surface, and whether foil areas near folds or corners show stress after assembly. A smooth coated paper may support crisp foil details, while textured paper may create a more tactile but less precise foil result. The expected effect should match the surface being used.

Embossing and debossing should be checked for depth, clarity, and surface response. I look at whether the paper holds the raised or recessed detail cleanly, whether the pressure creates unwanted marks around the design, and whether the finish remains visually balanced after the package is assembled. A paper surface may look suitable in a flat sample but react differently when the embossed area is close to an edge, fold, or wrapped corner.

How I Check Surface Durability

I consider surface durability because packaging is handled after it leaves production. A sleeve may be slid on and off an inner box. A rigid box may be opened repeatedly. A paper bag may be carried through a retail environment. A carton may rub against other cartons during packing and transport. The printed and finished surface should remain suitable for the expected level of contact.

I look for scuffing, fingerprint marks, abrasion, color transfer, edge wear, and visible pressure damage. Dark matte surfaces, soft-touch finishes, metallic papers, and some specialty papers can show marks more easily than other materials. This does not mean that these finishes should be avoided. It means the finish should be selected with realistic handling conditions in mind.

I also consider whether the surface finish affects the opening experience. A sleeve with too much friction may become difficult to remove. A very smooth laminated surface may slide too easily. A textured paper may feel premium but show rubbing at the corners. The surface should support the packaging function as well as the visual design.

Keep an Approved Reference Sample

I keep an approved physical sample because it creates a practical reference for the material, structure, print, color, finishing, and overall packaging feel. A written specification can describe the board grade, GSM, caliper, and finish. The approved sample shows how those elements appear and behave together after the packaging has been printed, folded, glued, wrapped, and assembled.

The approved reference sample should represent the final agreed direction as closely as possible. It should show the selected material, the intended carton or box structure, the correct print result, the finished surface, the fold quality, the fit of the product or insert, and the overall presentation. I treat it as a physical benchmark because it can be compared directly with later samples or production material.

A reference sample is especially useful when the package has subtle visual requirements. The written specification may say “matte laminated white board with gold foil,” but the physical sample shows the exact level of matte appearance, the brightness of the paper base, the foil tone, the feel of the surface, the sharpness of the folds, and the relationship between all these elements. These details are difficult to describe completely through text alone.

I also use the reference sample to separate intended variation from unacceptable change. Packaging materials can naturally vary slightly, but a reference sample helps show the overall material standard. It gives a direct comparison point when the board appears thicker, thinner, warmer, less stiff, more textured, or different in print behavior from the expected result.

How an Approved Sample Supports Material Consistency

I use an approved sample to establish a shared physical standard. It can show the intended paper grade, the correct carton structure, the product fit, the visible color direction, the foil or embossing result, the crease quality, and the expected surface feel. This is useful because a packaging specification often contains both measurable details and visual details that are easier to understand when seen physically.

For repeat production, the sample can help identify whether a later material is materially different. A replacement board may have the same GSM but a different caliper. A similar white board may have a warmer tone. A new paper source may have a different stiffness or fold response. The physical reference helps reveal these differences before they become visible across a larger production run.

I do not treat the approved sample as a substitute for written specifications. The strongest reference uses both. The written specification identifies measurable requirements such as material grade, GSM, caliper, and finish. The physical sample shows the real assembled result. Together, they provide a more complete basis for judging consistency.

Recheck Material After a Source Change

I recheck material whenever the paper source, board mill, paper grade, coating arrangement, or production batch changes in a meaningful way. A substitute board may have the same nominal GSM and still perform differently. It may have a different caliper, surface smoothness, whiteness, bulk, stiffness, grain direction, coating weight, or moisture condition. These differences can affect the finished package even when the written GSM figure remains unchanged.

A source change can influence printing. The same artwork may appear brighter, warmer, darker, softer, or more textured on a different board. It can influence folding. The new material may crack more easily, spring back more strongly, or require different crease behavior. It can influence fit. A sleeve may become tighter, an insert may become looser, or a drawer box may no longer move as smoothly if the material thickness changes.

I also consider surface finishing after a source change. Lamination can bond or fold differently on a new board surface. Foil stamping can appear sharper or less consistent. Embossing can respond differently if the board compressibility changes. A paperboard that looks similar before finishing may create a noticeably different result once it receives the full print and surface treatment.

The purpose of rechecking is not to assume that every material change will create a problem. It is to avoid treating the same nominal GSM as proof that the material is unchanged. The new stock should be compared with the approved reference in the areas that matter for the packaging function, including grade, caliper, stiffness, surface, folding behavior, print appearance, and finished structure.

How I Use a Physical Sample as a Complete Verification Tool

I use the physical sample as a way to connect written specifications with real packaging behavior. I begin by checking whether the paper grade and surface match the material description. I then measure the caliper at more than one position to understand the actual thickness. I fold and inspect the material to observe crease performance, cracking, spring-back, and deformation. I examine the printed and finished surface under normal handling conditions. Finally, I compare the completed sample with the intended packaging function.

A sample can reveal issues that a GSM value cannot show. It can show whether the carton panels remain straight, whether the sleeve fits, whether the insert holds the product, whether the dark printed folds crack, whether the foil looks clean, whether the greyboard remains flat, or whether the wrapping paper reveals the board beneath it. These are the details that determine whether the material is suitable for the finished package.

I do not use a physical sample only to judge whether the packaging looks attractive. I use it to confirm that the paperboard, structure, print, finish, fit, and handling behavior are working together. This is what turns a written material specification into a packaging result that can be seen, measured, folded, touched, and evaluated in the real world.

Common Paper Weight and Thickness Mistakes

I see paper weight and thickness mistakes most often when one number is expected to explain the whole packaging material. GSM, PT, caliper, millimeters, paper grade, stiffness, coating, and grain direction are all useful pieces of information, but they do not mean the same thing. A strong material decision comes from understanding what each value can tell me and where it stops being reliable on its own.

These mistakes matter because a small misunderstanding at the material stage can create a much larger packaging problem later. The carton may fold poorly, the sleeve may not fit, the insert may allow product movement, the printed color may look different, the corners may crack, or the repeat order may not match the approved sample. I use the following checks to avoid treating paper weight as a shortcut for packaging performance.

Treating GSM as a Thickness Unit

I do not treat GSM as a thickness unit because GSM measures weight per square meter, while thickness is measured by caliper, PT, millimeters, or microns. A 350 GSM board weighs 350 grams across one square meter, but that does not tell me exactly how thick the board is. The material may be compact and dense, or it may be bulkier with a higher caliper.

This mistake can affect carton design, sleeve clearance, insert fit, crease settings, and finished dimensions. A board chosen from GSM alone may appear correct in a quotation but become too thick for a close-fitting sleeve or too thin for the intended carton feel. I use GSM to understand material weight, then I use actual caliper to understand physical thickness.

Using One Conversion Formula for Every Paper Grade

I do not use one GSM-to-PT formula for every paperboard grade because paperboards do not all have the same density, fiber structure, coating, or bulk. A compact SBS board, a folding boxboard, a coated recycled board, and a natural kraft board can all have different calipers at the same GSM. A formula may offer a rough reference for one material family, but it cannot accurately identify every board.

This mistake can create incorrect expectations about the final carton. A 300 GSM FBB may feel thicker than a 300 GSM SBS board. A 350 GSM recycled board may have a different edge profile and folding response from a 350 GSM virgin-fiber board. I use material-specific reference ranges and then confirm the actual caliper of the selected board when thickness matters.

Assuming the Same GSM Means the Same Stiffness

I do not assume that two boards with the same GSM have the same stiffness. Stiffness is influenced by caliper, fiber composition, board density, grain direction, moisture condition, and manufacturing method. A board can be heavy but relatively flexible. Another board can have a similar GSM but greater bending resistance because it has more caliper or a different structure.

This mistake matters when the package has wide panels, tall walls, a heavy product, a structural sleeve, a backing card, or a product-supporting insert. A board may have the expected GSM but still bow, bend, or lose shape if its stiffness is unsuitable for the carton size or component function. I consider board stiffness together with caliper, panel span, structure, and product load.

Comparing Greyboard With Folding Carton Paperboard

I do not compare greyboard and folding carton paperboard as if they follow the same material logic. Folding carton board is generally selected according to paper grade, GSM, caliper, print surface, creasing behavior, and folding performance. Greyboard is generally selected according to actual millimeter thickness because it forms the rigid structural core of a box.

This mistake matters because a 2.0 mm greyboard is not simply a heavier version of a folding carton board. Greyboard creates rigid walls, lid depth, base structure, and box edges. Folding carton board is designed to score, fold, lock, and form a carton from a flat sheet. I use millimeter thickness as the main reference for rigid box structure and use GSM with caliper as the main reference for folding carton board.

Selecting Paper Bags by GSM Alone

I do not select a paper bag only by GSM because the bag body is only one part of the carrying structure. The bag dimensions, product weight, product shape, side gussets, bottom gusset, handle material, handle patches, adhesive areas, top folds, and bottom reinforcement all affect real bag performance.

This mistake can create a bag that looks strong when empty but tears once it carries the intended product. A large bag with weak handles may fail even when it uses high-GSM paper. A smaller bag with a suitable handle structure and reinforced base may perform well with a moderate GSM. I use paper weight as the material starting point, then I evaluate the complete bag construction and product load path.

Ignoring Grain Direction

I do not ignore grain direction when folding quality, structural accuracy, or panel stability is important. Paper fibers align more strongly in one direction during manufacture, and this can affect how the board folds, bends, springs back, and responds to humidity. The same board can perform differently depending on how the carton dieline is arranged on the sheet.

This mistake matters most when the package has deep creases, narrow tabs, large panels, high-caliper board, dark printing, lamination, foil stamping, or visible fold lines. An unfavorable grain direction can increase cracking, make folds less accurate, or cause panels to bow. I consider grain direction as part of the material and structure, not as an optional production detail.

Assuming Thicker Material Is Automatically Better

I do not assume that thicker board always produces better packaging. Greater caliper can improve rigidity, opacity, edge depth, and perceived value in the right application. However, it can also make cartons harder to crease, folds harder to close, sleeves tighter to assemble, inserts bulkier, rigid box corners more difficult to wrap, and the finished package heavier.

This mistake can increase cost and complexity without improving the actual packaging function. A heavy product may need a better insert rather than a thicker outer carton. A large box may need a better structural design rather than more board caliper. I select thickness when it solves a specific need for rigidity, fit, protection, or presentation, not simply because thicker material appears more premium.

Treating Reference Values as Guaranteed Specifications

I do not treat a chart value as a guaranteed material specification. A chart can show useful GSM, PT, caliper, and thickness ranges for common packaging materials, but actual values can vary by paper grade, mill, fiber content, coating, density, bulk, moisture condition, and production batch.

This mistake can create a gap between the expected packaging and the actual result. A reference chart may indicate that a board is likely to fall within a certain caliper range, but the final stock may behave differently in folding, printing, fitting, or finishing. I use charts to understand material ranges, then I confirm the selected paper grade, actual caliper, surface, and finished-package behavior on the physical material.

Treating a Material Name as a Complete Specification

I do not assume that a material name alone identifies the final board. Terms such as “white paperboard,” “kraft board,” “recycled board,” or “350 GSM card” can still describe many different materials. The board may differ in caliper, coating, whiteness, stiffness, print surface, reverse-side appearance, and folding behavior.

This mistake matters because two suppliers may use similar wording while offering materials that create different cartons. I look for the board grade, GSM, actual caliper, coating arrangement, color, stiffness, and intended application. The more precise the structure or finish, the more important it becomes to define the material beyond its general name.

Comparing a Flat Sheet Instead of the Finished Structure

I do not judge material suitability only from a flat board sample. A flat sheet may feel strong, smooth, or visually attractive, but the real packaging result appears after the board has been creased, folded, glued, wrapped, assembled, and filled with the actual product.

This mistake can hide problems with sleeve clearance, insert fit, carton closure, panel bowing, fold cracking, lid alignment, or product movement. I evaluate the board as part of the completed package because the material must work inside the final structure, not only as an individual sheet.

Ignoring the Effect of Printing and Finishing on Folding

I do not select paperboard without considering how printing and finishing will change the fold behavior. Heavy ink coverage, dark colors, coating, lamination, foil stamping, embossing, and debossing can all affect how the surface responds at a crease line. A board that folds cleanly when blank may show visible stress once the finished surface is applied.

This mistake matters because dark printed areas can expose white fibers at the fold, matte surfaces can show scuffing, laminated areas can show tension, and foil near creases can become distorted. I consider the board, artwork placement, finish, grain direction, and crease design together before treating a material as suitable.

Treating Product Weight as the Only Structural Requirement

I do not use product weight as the only guide for selecting paper weight or board thickness. Product shape, dimensions, center of gravity, sharp corners, internal movement, and the way the product contacts the package can create different structural demands. A lightweight but large product can require strong wide panels. A compact heavy item can create concentrated pressure at the base or insert.

This mistake can lead to a carton that is heavy enough on paper weight but still unstable in use. I consider the product footprint, internal support, box dimensions, insert structure, closure, and expected handling conditions together. The board should support the full packaging system, not only the total product weight.

Ignoring Moisture and Storage Conditions

I do not ignore moisture because paper and board can react to humidity. Changes in moisture can affect flatness, stiffness, folding behavior, dimensional stability, and surface appearance. A carton may be stable in a dry environment but show bowing, reduced stiffness, or different folding behavior after exposure to humidity.

This mistake matters for large panels, close-fitting sleeves, rigid boxes, paper bags, corrugated shipping cartons, and packaging that travels through different climates. I consider the material condition, storage environment, product use, and shipping conditions when the packaging requires consistent shape and fit.

The Correct Way to Read Paper Weight and Thickness

I use paper weight and thickness as part of a complete material picture. GSM tells me material weight. Caliper tells me physical thickness. Paper grade explains the board family. Stiffness helps me understand shape retention. Grain direction affects folding. Coating and color affect printing. The finished structure and physical sample show whether all of these properties work together.

The most reliable packaging decision does not come from one number. It comes from reading the material in relation to the carton, sleeve, insert, bag, rigid box, or corrugated structure it is meant to become. When I use GSM, caliper, paper grade, structure, and a physical sample together, I can avoid the mistakes that make packaging look correct on paper but perform differently in real use.

Frequently Asked Questions

I use these answers to clarify the material questions that most often create confusion in packaging specifications. GSM, PT, caliper, millimeters, paper grade, and finished performance are closely connected, but they do not describe the same property. I read each value in relation to the actual material and packaging structure.

Is GSM the same as paper thickness?

I do not treat GSM as paper thickness. GSM measures the weight of paper or board across one square meter, while thickness is measured by caliper, PT, millimeters, or microns. A higher GSM may indicate more material, but it does not guarantee a thicker board. Density, fiber composition, coating, and bulk can make two boards with the same GSM physically different.

Can GSM be converted directly to PT?

I use GSM-to-PT conversions only as approximate references within a specific paperboard grade. GSM measures material weight, while PT measures thickness. A 350 GSM SBS board may have a different PT value from a 350 GSM FBB, coated recycled board, or kraft board. When physical thickness affects folding, sleeves, inserts, or carton dimensions, I confirm the actual caliper of the selected stock.

What is the difference between PT and caliper?

I use caliper to describe the actual physical thickness of paper or paperboard. PT, or point, is one unit used to express that thickness, especially in North American paperboard specifications. Caliper may also be shown in millimeters, microns, inches, or thousandths of an inch. GSM measures weight, while PT and caliper describe the material’s physical depth.

How many millimeters is 1 PT?

I use the exact conversion of 1 PT equals 0.0254 mm. One PT also equals 0.001 inch. This relationship is always exact because PT, millimeters, and inches all measure thickness. It does not change according to paper grade, GSM, density, coating, or fiber content. For example, 20 PT equals 0.508 mm.

How thick is 300 GSM paper?

I do not assign one fixed thickness to 300 GSM paper because the answer depends on the paper grade. A compact coated board can be thinner than a bulky folding boxboard, recycled board, or kraft board at the same GSM. I use 300 GSM as a weight reference, then check the actual caliper when thickness affects carton fit, crease settings, sleeves, inserts, or product clearance.

How thick is 350 GSM paperboard?

I treat 350 GSM paperboard as a material-weight category rather than one exact thickness. Its caliper can vary according to whether the board is SBS, FBB, coated recycled board, natural kraft board, or another grade. I check the selected board’s actual caliper because it affects folding, sleeve clearance, insert dimensions, carton feel, crease settings, and finished package dimensions.

Why do two 350 GSM paperboards feel different?

I expect two 350 GSM boards to feel different when their density, bulk, fiber composition, coating, surface texture, or moisture condition differs. One may be compact, smooth, and relatively thin, while another may be thicker, bulkier, or more textured. I compare paper grade, actual caliper, stiffness, surface finish, and folding behavior instead of assuming equal GSM means equal material performance.

What GSM is commonly used for paper bags?

I use paper type, bag dimensions, product weight, gussets, handles, bottom construction, and intended use to select paper bag GSM. Many paper bags fall within an approximate range of 80 to 250 GSM, but the correct material depends on the complete bag structure. A higher GSM bag can still fail if its handle attachment or bottom reinforcement is unsuitable for the product load.

Is GSM or caliper more important for folding cartons?

I use both because they answer different questions. GSM tells me material weight, while caliper confirms physical thickness. For folding cartons, caliper affects crease settings, fold allowances, sleeve fit, carton dimensions, and the final hand feel. GSM helps compare material weight, but I do not use it as a replacement for actual caliper when carton structure or fit is important.

How is rigid box greyboard measured?

I measure rigid box greyboard primarily by actual thickness in millimeters, such as 1.5 mm, 2.0 mm, or 2.5 mm. GSM can be useful as a secondary density reference, but it does not define rigid-box structure as clearly as thickness. I also consider board density, flatness, stiffness, edge quality, box dimensions, wrapping paper, and internal product fit.

Can corrugated board strength be determined by GSM?

I do not determine corrugated-box strength from total GSM alone. Corrugated performance depends on liner paper, corrugating medium, flute type, single-wall or double-wall construction, board thickness, edge-compression performance, box dimensions, closure method, internal support, and humidity. I use GSM as background information, then evaluate the full board construction and finished-box requirement for real shipping performance.

Should an actual sample be checked before confirming a material?

I consider an actual sample essential when material selection affects folding, fit, color, finishing, rigidity, or product protection. A physical sample can confirm the paper grade, caliper, crease response, print result, lamination, foil, embossing, insert fit, and overall structure. It provides practical information that a GSM figure, written material description, or digital artwork proof cannot show on its own.

I created this guide to make one point clear: GSM, PT, caliper, and millimeters should not be treated as interchangeable packaging specifications. GSM tells me the material weight, while PT and caliper describe thickness. The final behavior of paper or board still depends on the paper grade, density, coating, grain direction, stiffness, structure, and the way the material is converted into the finished package.

When I compare packaging materials, I do not look for the highest GSM or the thickest board by default. I look for the material that fits the real packaging function. A folding carton needs the right balance of print quality, caliper, creasing, and shape retention. A paper bag needs paper weight that works with its dimensions, handles, gussets, and bottom structure. A rigid box needs suitable greyboard thickness and wrapping paper that can create clean corners and a durable surface. The correct material is the one that protects the product, supports the design, fits the structure, and remains practical for production and repeat orders.

I also believe that a physical sample remains the most reliable material reference. A chart can narrow the right range, but an actual sample shows whether the board folds cleanly, whether the sleeve fits, whether the insert supports the product, whether the color suits the paper base, and whether the finishes remain consistent after handling. This is where a paper specification becomes a real packaging result.

When the packaging project requires more than a general GSM recommendation, BorhenPack can help turn the material specification into a workable custom paper box or paper bag solution. Our team reviews the packaging structure, dimensions, product weight, paperboard direction, printing requirements, finishing details, and sample expectations together, so the selected material supports both the design and the final production result.

Whether the project involves folding cartons, rigid gift boxes, custom paper bags, sleeves, inserts, or corrugated packaging, BorhenPack helps create a clearer path from material selection to approved samples and repeatable bulk production. Share the product dimensions, packaging style, quantity, artwork, and any existing material reference, and we can review the most practical paper and board direction for the project.
