Packaging Dieline Guide for Artwork and Print Production

When I review packaging artwork, I never see a dieline as a background template that can be ignored once the design looks attractive. It is the production map that connects the flat artwork file to the finished package. It determines where the package will be cut, folded, glued, opened, printed, finished, and assembled, while also defining where the logo, product name, images, ingredients, warnings, barcode, QR code, and other critical content can safely appear.

A packaging dieline is a flat production template that shows where packaging will be cut, folded, glued, printed, and finished, helping teams place artwork, bleed, barcodes, and critical content correctly before proofing, sampling, and print production.

A packaging design can look complete on screen and still create expensive problems if the artwork is placed on the wrong structural file, crosses a fold, enters a glue area, stops at the cut line, uses an outdated barcode, or faces the wrong direction after assembly. I have learned that packaging artwork must be reviewed as part of a physical object. The front, back, side, top, bottom, interior panels, flaps, seams, windows, inserts, and opening direction all affect what remains visible and functional after production.

In this guide, I explain how to read a packaging dieline, use a production-approved structural file, place artwork on the correct panels, prepare print-ready files, and review proofs and samples before production. I also cover how dielines differ across folding cartons, corrugated boxes, paper bags, rigid boxes, sleeves, and inserts, because each structure creates different artwork risks. My aim is to make the packaging file easier to control from the first layout through final approval, so the finished package reflects the intended design, product information, and production requirements.

What Is a Packaging Dieline?

A packaging dieline is the production map that allows a flat sheet of paperboard, corrugated board, or paper to become a finished package. When I work through a packaging project, I use the dieline to understand how the package will be cut, creased, folded, glued, wrapped, and assembled before any final artwork is approved. It is a two-dimensional technical layout of a three-dimensional package, showing the exact relationship between the flat material and the finished structure.

The dieline defines the parts that will later become the front, back, left side, right side, top, bottom, flaps, seams, openings, or internal sections of a package. It can apply to a folding carton, corrugated mailer box, shipping box, paper bag, sleeve, paper insert, or rigid-box wrapping paper. Although the structure changes from one format to another, the purpose remains the same: the dieline gives every production and artwork element a defined position before printing begins.

I consider a dieline to be both a structural reference and an artwork-placement reference. On the structural side, it identifies where the package will be cut, where the material will fold, which areas will be glued, and which sections may become hidden after assembly. On the artwork side, it tells the designer where a logo, product name, illustration, ingredient list, warning, barcode, QR code, color block, or finishing effect can be placed. Without this relationship between structure and artwork, a design may look correct on a screen but fail to work once it becomes a real package.

A dieline is not simply a drawing of a box. It is a working production document that reflects the confirmed dimensions, structure, material behavior, and assembly method of a specific packaging project. A small change in board thickness, flap design, box depth, insert requirement, window position, or opening direction can affect the final dieline. This is why I do not treat a dieline as a decorative template. I treat it as the technical foundation that keeps the visual design aligned with the actual package.

A Dieline Is Not a 3D Mockup

A 3D mockup and a dieline serve different purposes, even though both may show the same packaging design. A 3D mockup is created to help people imagine how the finished packaging may look after assembly. It can present a carton from several angles, show a logo on the front panel, illustrate a color scheme, or help a team evaluate the overall visual impression. I find 3D mockups useful when reviewing presentation, hierarchy, shelf appearance, gifting experience, and the relationship between the packaging and the product.

However, a 3D mockup is not normally the file used to control die-cutting, creasing, glue placement, or final artwork positioning. It may simplify structural details, hide internal flaps, and present proportions that are visually appealing but not exact enough for production. A mockup can also make a design appear aligned because it is viewed only from selected angles. It may not show that a barcode sits too close to a fold, a product name crosses a glue seam, or a background stops exactly at the cut edge.

When I review a 3D mockup, I use it to understand the intended appearance of the finished package. When I review a dieline, I use it to confirm whether that appearance can be produced correctly. The mockup is the presentation view, while the dieline is the flat technical layout behind it. Both are valuable, but they should not be confused or used as replacements for one another.

A Dieline Is Not an Ordinary Graphic Design File

An ordinary graphic design file may contain the main visual elements of a brand, including typography, photography, illustrations, colors, logos, and product information. It may look complete from a marketing perspective, but it does not necessarily explain how the material will be transformed into packaging. I have seen artwork that appears perfectly balanced on a rectangular page but becomes unusable when it is applied to a real packaging structure with folds, seams, panels, and glue areas.

A dieline adds the production context that an ordinary design file does not contain. It shows where the outer edges of the package will be cut, where the material will be creased and folded, where panels overlap, where adhesive may be applied, and which sections will be visible after assembly. It also helps identify whether the artwork is being placed on the exterior, interior, side gusset, bottom panel, flap, or concealed structural area.

This distinction becomes especially important when the package contains critical information. A product name, ingredient panel, warning statement, barcode, QR code, country-of-origin information, or batch area cannot be positioned only according to visual preference. I need to consider whether the content remains visible, readable, scannable, and undistorted after folding and assembly. The dieline provides the reference needed to make those decisions before production creates a costly error.

Why the Final Artwork Should Use a Confirmed Production Dieline

A generic packaging template can be useful at the beginning of a project. I may use one to explore a broad concept, compare possible panel layouts, or discuss whether a product may suit a tuck-end carton, sleeve, mailer box, or paper bag. This early exploration can help a team move from an idea to a more practical packaging direction. However, a generic template should not become the final artwork file unless it has been confirmed for the actual structure being produced.

A template downloaded online may not match the final package dimensions, material thickness, folding method, glue-tab size, product fit, print area, or die-cutting method. It may have been created for a different paperboard grade, a different box depth, a different closing style, or a different production workflow. Even if two cartons appear similar after assembly, their flat dielines may have different flap lengths, crease locations, glue areas, and panel proportions.

I regard the confirmed production dieline as the version that should carry the final artwork because it represents the actual approved structure. Once the artwork is placed on that file, the designer can check the position of every graphic element against the real folds, cut boundaries, seams, and visible panels. This avoids the common mistake of completing artwork on one template and then trying to force it onto a different structure at the final stage.

I also avoid resizing, stretching, redrawing, or independently changing a confirmed dieline after artwork placement has started. These changes can alter the relationship between the graphics and the structure, causing a logo to move closer to a crease, a barcode to enter an unstable area, or an illustration to lose alignment across panels. A dieline is not a flexible canvas; it is a structural production reference that should remain intact while the artwork is developed around it.

From a Flat Dieline to a Finished Package

The most important thing to understand about a packaging dieline is that the flat file does not show the package in its final physical form. Every panel is opened out across one sheet so it can be printed and die-cut efficiently. What looks like a series of disconnected rectangles, tabs, and lines in the flat layout becomes a complete package once the material is folded and assembled.

In a typical folding carton, the front panel may carry the primary logo, product name, and main visual. The back panel may hold ingredients, instructions, warnings, claims, or contact information. The side panels add depth and can contain supporting details, secondary graphics, or repeated brand elements. The top and bottom panels close the carton, while dust flaps and glue flaps help create the final structure. I always identify these panels according to their assembled position because the flat arrangement alone can be misleading.

A narrow glue flap may look like an available design area in the flat file, but it becomes partially or fully hidden when the carton is assembled. A bottom flap may look large enough for important text, but it may not be easy to read when the package is standing on a shelf. A side panel may become less visible when a product is displayed in a row. These are not purely graphic-design decisions. They are packaging decisions that require the artwork to be reviewed in relation to the final object.

The direction of artwork can also appear unusual in a flat dieline. A top panel may look upside down when viewed beside the front panel because it will rotate during folding. The artwork may need that orientation so it reads correctly when the finished package is closed and viewed from above. Similarly, a pattern, border, or illustration that continues across several panels may appear interrupted by crease lines in the flat file but become visually connected after assembly.

I do not approve orientation based only on whether every item reads upright in the flat layout. I check how a person will see the package when it is closed, opened, displayed, held, or photographed. This is particularly important for premium packaging, retail cartons, gift boxes, subscription mailers, and products with artwork that wraps across multiple panels. A design can be technically placed on the dieline yet still feel incorrect if the visual hierarchy does not follow the way the finished package is viewed.

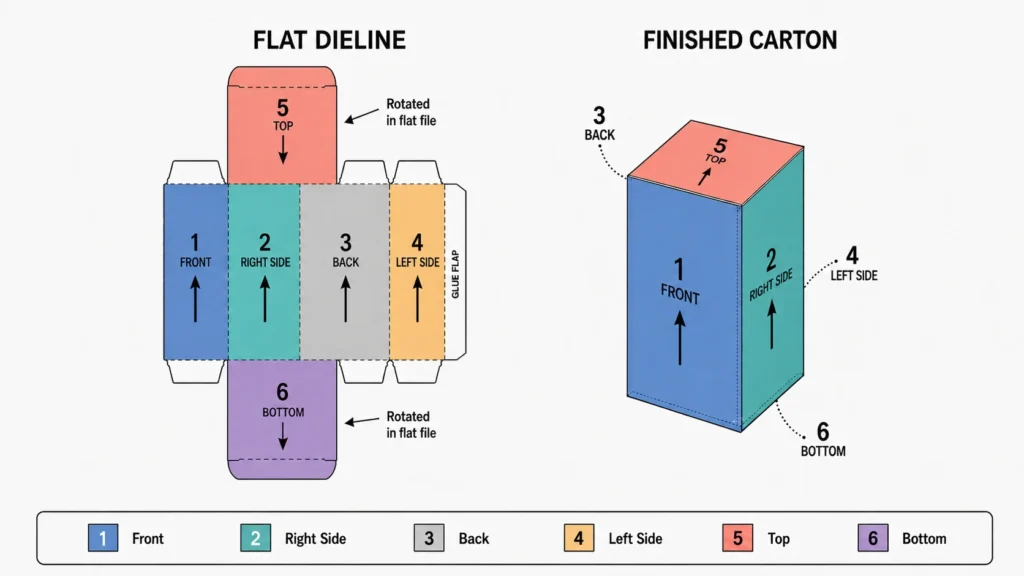

An original visual for this section should show the same folding carton in three stages. The first stage should present the flat dieline with the front, back, left side, right side, top, and bottom panels labelled clearly. The second stage should show fold directions and the partially assembled structure. The final stage should show the completed carton with matching panel labels, making the relationship between the flat layout and the finished package immediately understandable.

How a Dieline Works with Proofs and Physical Samples

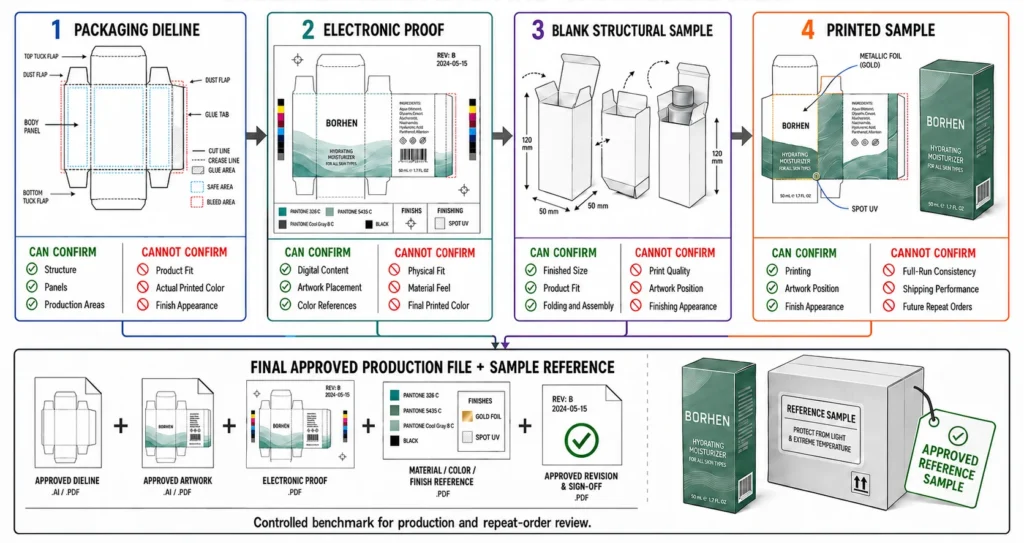

A complete packaging review does not depend on one file alone. When I prepare or review packaging for production, I use different files and samples to answer different questions. The dieline establishes the structure and artwork placement. A 3D mockup supports visual presentation. An electronic proof allows the digital content and production references to be checked. A blank sample verifies physical structure and product fit, while a printed sample shows how the actual artwork, color, and finishing appear on the assembled package.

File Type	Primary Purpose	What It Can Confirm
Packaging dieline	Structure and artwork placement	Cuts, folds, panels, glue areas, and artwork position
3D mockup	Visual presentation	Approximate appearance after assembly
Electronic proof	Digital file review	Content, placement, colors, and production references
Blank sample	Structural verification	Size, fit, folding, and assembly
Printed sample	Print and finish verification	Artwork position, color, and finishing appearance

I use the dieline to confirm whether the structural layout and artwork position make sense before printing. It can show the relationship between panels, folds, cuts, seams, and glue areas, but it cannot fully show how the finished material will feel or how a complex structure will perform in the hand. A 3D mockup can make the design easier to visualize, but it cannot confirm whether the product fits inside the package or whether the actual fold sequence works correctly.

An electronic proof is valuable because it allows the content, artwork version, spelling, placement, color references, and finishing instructions to be reviewed before production. However, it remains a digital representation. It cannot fully demonstrate the final paper texture, board stiffness, assembled alignment, printed color variation, foil registration, embossing depth, or the physical interaction between the product and its packaging.

A blank structural sample is useful when I need to verify the real dimensions, product fit, insert fit, opening direction, closing method, panel visibility, and assembly sequence. A printed sample adds the final visual layer by showing whether the artwork sits correctly on the real structure, whether small text remains readable, whether the barcode can be scanned, and whether special finishes appear in the intended position.

For this reason, I do not consider a dieline, a proof, or a sample to be interchangeable. Each confirms a different part of the packaging decision. The most reliable approval process compares the confirmed dieline, the final electronic proof, and the relevant physical sample together, so the structural file, artwork file, and finished package remain aligned before full production begins.

How to Read a Box Dieline

A box dieline is easiest to read when I stop treating it as a flat page of lines and begin treating it as an unfolded physical package. The file may look technical, fragmented, and unfamiliar at first because the box has been opened into a single flat layout for printing and die-cutting. Once I understand which areas become the front, back, sides, top, bottom, flaps, seams, and openings, the dieline becomes a practical map of how the package will look and function after assembly.

When I review a box dieline, I read it in two connected ways. First, I read the structural information: the panels, cut boundaries, crease lines, glue flap, closure flaps, perforations, and window openings. Second, I read the artwork information: where the logo, product name, images, colors, barcode, legal content, and finishing elements can safely appear. A box dieline only works properly when these two layers remain aligned. The structure determines what the package can do, while the artwork determines what the customer will see and understand.

I also read the dieline in the order that the package will be experienced in real life. I consider how the box will be displayed, picked up, opened, closed, carried, photographed, shipped, and disposed of. A front panel may be the most important visual surface in a retail environment, but a top panel may become more important in an e-commerce unboxing experience. A side panel may hold useful secondary information, while a bottom panel may not be suitable for a message that must be noticed immediately. Reading the dieline this way helps me place each element according to its final purpose rather than simply filling available space.

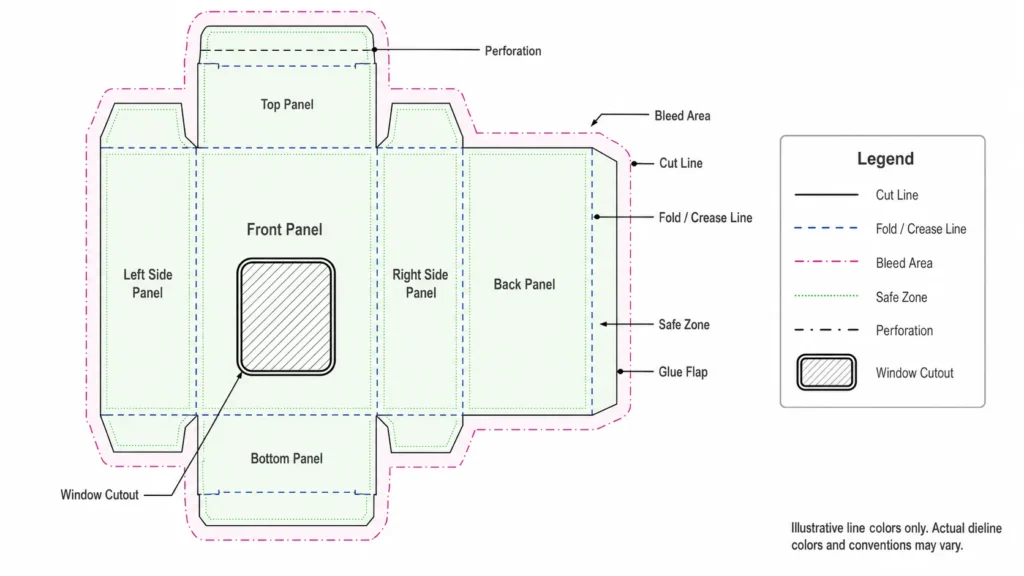

Immediately below this heading, I recommend placing an original annotated folding-carton dieline image. The image should identify the front panel, back panel, side panels, top and bottom panels, cut line, fold or crease line, bleed, safe zone, glue flap, perforation, and window cutout. The labels should be clear enough for a reader to compare the image with a real production file, but the image should also state that line colors and technical conventions vary between suppliers and print workflows. The purpose of the visual is not to teach readers to memorize one color system; it is to help them recognize the role of each structural and production area.

Identify the Front, Back, Side, Top, and Bottom Panels First

Before I review individual technical lines, I identify the major panels that will become visible after assembly. This gives the rest of the file context. The front panel is commonly the main presentation surface, but I confirm this rather than assume it. It often carries the primary logo, product name, central image, key product claim, or brand color system. The back panel may contain ingredients, instructions, warning statements, barcode information, legal content, recycling information, or contact details. Side panels often support the main design with product features, repeated branding, secondary graphics, or additional languages.

The top and bottom panels deserve the same level of attention as the front and back. The top panel can influence the opening experience and is often visible when a package is stacked, photographed from above, or opened by hand. The bottom panel can contain less prominent information, but it still needs to be reviewed for readability, barcode placement, structural closures, and standing stability. I do not place important content on these panels only because they appear empty in the flat file. Their final visibility depends on how the package is stored, displayed, shipped, and used.

Side panels may appear narrow on screen, yet they become important once the box gains depth. They can hold a repeated logo, product descriptor, flavor name, shade information, product feature, or support text. However, I consider the actual width of the side panel after folding. A line of text that looks acceptable on a flat artwork file may feel compressed once it wraps around the edge of the box. A fine illustration may also lose impact if it sits too close to a crease or extends into a seam.

I do not assume that the file is always arranged with the front panel facing upward on screen. Dielines may be rotated for production efficiency, and one structure can be laid out differently by different packaging engineers. I check the position of the glue flap, the closing flaps, the structural notes, and any panel labels before deciding which area is the front. Where the file is unclear, I rely on an assembled blank sample, a 3D structural preview, or a confirmed production reference rather than making a visual guess.

This first step is especially important for packaging with multiple visible faces. A carton may look correct from the front but feel inconsistent when the side panels, top panel, and opening direction are considered together. I read the full package as one connected object. The front panel establishes the primary message, but the other panels must support that message without creating a confusing sequence, upside-down text, interrupted design, or hidden critical content.

Read Cut Lines as the Final Physical Edge of the Package

Cut lines define where the material will be die-cut and where the final physical edges of the box will be formed. In practical terms, they show the outline of the finished structure before folding. They may define the outside edge of the carton, the shape of a flap, the outline of a handle opening, the edge of a window cutout, or a custom structural feature. When I read a cut line, I treat it as a production boundary rather than as a guide for placing important artwork.

The cut line is directly related to the finished dimensions of the package. A folding carton described as a certain length, width, and height will have a much larger flat dieline because the file includes every visible panel, flap, glue tab, and production allowance. I do not estimate finished box dimensions by looking only at the total flat artwork size. I check the confirmed structural dimensions and understand how the panels fold together to create the final object.

Artwork that visually reaches the edge of the package should normally extend past the cut line into the bleed area. This includes full-panel colors, photographs, gradients, patterns, textures, and large illustrations. If the background stops exactly at the cut line, normal die-cutting variation can reveal a narrow unprinted edge. Even a very small visible edge can make an otherwise premium package look unfinished, particularly when a dark color or saturated image ends against a light paperboard edge.

I separate edge-to-edge visual elements from critical content. A background can extend through the bleed because it is designed to continue beyond the final trim. A logo, product name, barcode, ingredient list, legal statement, QR code, or small decorative border should not be treated in the same way. These elements need a protected distance from the final edge so that they remain visually balanced and intact after production. A box can be technically cut within acceptable production tolerance and still look poorly designed if a logo or text line sits too close to the edge.

I also consider the shape of the cut line itself. A standard rectangular panel is generally easier to read than a panel with a curved shoulder, angled edge, window, notch, handle, or custom opening. On a more complex structure, the visible area may narrow unexpectedly near a corner or opening. I check the actual remaining panel area rather than placing artwork according to the largest apparent rectangle around it. This protects the hierarchy of the design and keeps important content from competing with the structure.

Understand Fold and Crease Lines Before Placing Artwork

Fold and crease lines show where the packaging material will bend to form the three-dimensional box. In many paperboard cartons, the board is scored or creased before folding so that it can form a cleaner edge and a more controlled shape. When I read a crease line, I see the transition between two panels. It may separate the front from a side, the back from a top flap, or the main body of the carton from a bottom closure.

A cut line and a crease line do not perform the same function. A cut line removes material and creates the shape of the structure. A crease line keeps the material connected while preparing it to fold. This difference may appear simple, but it has a major effect on artwork placement. A cut line represents the end of a visible surface, while a crease line represents a point where the artwork may bend, shift direction, or become less visually stable after assembly.

I pay close attention to any logo, text, barcode, QR code, fine line, or graphic detail near a crease. Small text can become harder to read when it sits too close to a fold, especially if the fold creates a shadow, slight cracking, or visual compression. Barcodes and QR codes should not be placed across a crease because the fold can interrupt the code pattern and reduce scanning reliability. Even when a code appears intact in the flat artwork, the physical bend of the material can affect how it performs.

Artwork that crosses a crease can still be effective when it is planned carefully. A large image, continuous color, landscape illustration, pattern, or border may intentionally move from the front panel to a side panel. I review this type of design in the assembled state because the physical fold can create a visible separation between the two surfaces. A line that appears perfectly continuous on screen may not align in the same way once the carton is folded, particularly if the board thickness, folding direction, or structure creates a slight shift at the edge.

I also consider how the crease affects visual hierarchy. If a product name begins on the front panel and continues onto the side, the reader may not see the message as one sentence. If a logo is centered across two panels, it may feel divided rather than intentional. In most cases, I prefer placing critical identity elements within one stable visible panel and using folds for supporting visual transitions rather than essential communication. This creates a more reliable result across different viewing angles and production conditions.

Use Bleed for Backgrounds and Safe Zones for Important Content

Bleed and safe zones are two of the most important areas to understand when reading a box dieline because they protect the quality and usability of the printed package. I use bleed to protect edge-to-edge artwork and safe zones to protect essential information. They are connected, but they do opposite jobs: bleed extends outward beyond the final edge, while the safe zone holds critical content inward from production-risk areas.

Bleed allows backgrounds, colors, photographs, patterns, gradients, and illustrations to extend beyond the cut boundary. If a dark blue background, a full-coverage image, or a solid brand color ends exactly at the cut line, any minor cutting movement can leave a visible white or unprinted line. By extending the artwork beyond the cut line, the finished package can retain a clean full-coverage edge after die-cutting. I see bleed as an invisible production allowance that protects the intended visual result.

The safe zone is the protected interior area where I place information that must remain complete, visible, and readable. This usually includes logos, product names, ingredients, instructions, warning statements, legal content, barcodes, QR codes, contact information, product claims, and fine decorative elements. The safe zone helps protect these elements from being affected by cutting, folding, seams, glue areas, perforations, window openings, and normal movement during production.

I do not describe one bleed or safe-zone measurement as suitable for every box. The required allowance can depend on the packaging format, dimensions, material thickness, board type, print method, die-cutting process, structural complexity, and artwork design. A small cosmetics carton, a larger corrugated mailer, a paper bag with side gussets, and a rigid-box wrapping sheet may each require different production considerations. The final confirmed dieline and production specification should be treated as the authority for the applicable requirements.

When I review a packaging file, I check whether the background reaches the bleed and whether important content remains inside the safe zone. This creates a clear visual discipline in the file. The background can feel expansive and edge-to-edge, while the critical content remains protected and easy to read. The result is not simply safer for production; it also looks more considered and professionally composed.

Treat Glue Flaps, Glue Areas, and Seams as Structural Zones

Glue flaps, glue areas, and seams are the parts of the dieline that allow flat material to become a complete box. A typical folding carton often has a narrow glue flap at one side, which is attached to an adjacent panel during assembly. In the flat dieline, this flap may look like an extra vertical strip. In the finished carton, it becomes part of a seam and may be hidden inside the package or visible only from certain angles.

I identify the glue flap before placing any prominent artwork. This area is not a normal display panel, even when it appears large enough to hold text or graphics in the flat file. Once the carton is glued, content on the flap can be concealed, broken by the seam, or misaligned with the adjacent panel. I keep essential logos, product names, barcodes, legal statements, and precise visual features away from this type of structural zone.

Glue areas can also affect material adhesion. Heavy ink coverage, certain coatings, lamination, foil, varnish, embossing, or other finishing layers may change the surface where adhesive needs to bond. I do not assume that every finish can extend into every glue area without consequence. The final production requirements should determine whether a glue area must remain free of a particular coating, finish, or heavy coverage.

Seams are especially important when a design uses a continuous border, pattern, image, or color transition. A seam can interrupt the visual flow or create a slight offset that is not obvious in a flat file. I check whether the seam falls in a less critical location and whether the design still feels intentional after assembly. If the package uses a full-wrap pattern, I review the physical structure carefully because even a small mismatch can become noticeable where the panels meet.

A corrugated box may use a manufacturer’s joint rather than the small glue tab commonly seen on a folding carton. This joint is often larger and may affect a wider printable area. It can be placed on a side or back panel, but it should still be considered during artwork planning because it may interrupt graphics, text, or large areas of color. I do not apply folding-carton assumptions directly to corrugated packaging. The structural joint, material thickness, and assembly method can change both the usable artwork area and the final appearance.

Review Perforations, Tear Lines, and Window Cutouts as Functional Features

Perforations and tear lines are designed to create controlled openings in packaging. They may allow a consumer to open a carton, remove a section, reveal a product, create a dispenser function, or provide evidence that the package has been opened. When I see a perforation on a dieline, I read it as an intentional separation point. It may look similar to another technical line in the flat file, but its purpose is different because it is designed to break during use.

Artwork that crosses a perforation or tear line may be separated after opening. This can be visually acceptable if the packaging is meant to transform after use, but it should be planned rather than discovered later. I avoid placing essential product information, barcodes, QR codes, warning statements, or key brand elements across a line that will tear. A graphic may span the area if the visual effect supports the opening experience, but I make sure that the package remains clear and functional both before and after the tear line is used.

A window cutout is another feature that changes the available artwork space. It removes part of the paperboard so the product, inner tray, insert, or internal graphics can be seen. In a dieline, the window cutout defines the exact opening that will be die-cut from the panel. I do not treat it as a simple empty shape. It changes the hierarchy of the entire panel because it introduces a visible frame around whatever sits behind it.

The position of a window should be reviewed with the actual product or insert in mind. A window may reveal the intended part of the product in a flat mockup but show an unintended gap, edge, or internal component if the product shifts inside the finished package. I also check the distance between the window and surrounding text, logos, borders, and illustrations. The artwork should frame the opening intentionally, not appear crowded or accidentally cut away by it.

Perforations and windows both show why a box dieline cannot be read only as a surface for graphics. They create functional changes in the material, affect what remains visible after assembly, and influence how the customer interacts with the package. I read these features as part of the packaging experience as well as part of the production file.

Do Dieline Colors Follow a Universal Standard?

Dieline colors are not universal. A cut line may be red in one production file, black in another, or assigned to a specifically named spot-color layer in a third. Fold lines may appear as dashed strokes, dotted strokes, different line weights, or separate technical layers. A perforation may use a distinct line style, but that style can also vary by workflow. I therefore never identify a structural element by color alone.

When I read a dieline, I use the visual lines together with the information built into the file. I check layer names, spot-color names, line styles, legends, written notes, structural labels, and any production instruction supplied with the artwork. A well-organized packaging file makes this easier because its technical elements are clearly separated from printable artwork and are named according to their function.

I also pay attention to whether the dieline layer is intended to print. In many packaging workflows, technical cut lines, crease lines, dimensions, panel labels, and notes are kept on separate non-printing layers or are removed during prepress preparation. If these lines are mistakenly included in the printable artwork, they can appear on the finished package. Keeping the structural reference separate from the design layer reduces the risk of this type of error.

The goal is not to memorize a universal dieline color code because no universal code applies to every supplier, printer, or packaging format. The goal is to understand the role of each line and panel in the confirmed production file. Once I can identify where the package will be cut, folded, glued, opened, and viewed, I can evaluate whether the artwork is correctly positioned for the finished box rather than only for the flat screen.

Why Artwork Should Use a Production Approved Dieline

I treat the production-approved dieline as the non-negotiable starting point for final packaging artwork. Before a package is printed, it must be possible to confirm not only how the design looks, but also how the material will be cut, folded, glued, filled, closed, and handled as a physical object. A packaging design is not finished when the flat layout looks attractive on screen. It is finished only when the artwork, structure, and production method work together in the final assembled package.

This is why I do not begin final artwork on a guessed box shape, a generic online template, a visual mockup, or an earlier structural version that has not been approved for the current product. Each of these may be useful during an early concept stage, but none should control final production unless it reflects the actual package that will be manufactured. A small structural difference can change where the folds sit, how much of a side panel remains visible, whether a barcode lies on a stable surface, or whether a logo is interrupted by a seam.

A production-approved dieline gives the artwork a stable physical reference. It confirms the final size, package structure, material direction, product fit, insert requirements, exterior and interior print surfaces, window or handle positions, die-cutting method, folding sequence, and gluing areas. Once these details are structurally confirmed, I can place artwork with a realistic understanding of what the customer will see and what the production process can achieve.

The central principle is straightforward: a dieline is a structural production reference, not a flexible graphic layout that can be altered after artwork placement begins. I adapt the artwork to the confirmed dieline. I do not alter the dieline casually to make a flat composition appear more convenient.

Final Product Dimensions Must Be Confirmed Before Artwork Is Locked

The final dimensions of a package influence every artwork decision, even when the change appears small. When I review a dieline, I first make sure it reflects the confirmed length, width, height, depth, and opening direction of the finished package. These dimensions determine the available area for the front, back, sides, top, and bottom panels. They also influence the proportions of the logo, product name, image, supporting text, barcode, and regulatory content.

A box that becomes slightly narrower can reduce the readable space on a side panel. A box that becomes deeper can move a wraparound graphic farther around the edge. A change in height can alter the balance between the front panel and the top closure. These adjustments may seem minor in a flat artwork file, but they can noticeably affect the finished package. I do not simply scale the design proportionally and assume that the visual hierarchy will remain correct.

I also distinguish between finished external dimensions and usable internal dimensions. The external size may appear sufficient, but the internal product space can be affected by board thickness, folded flaps, inserts, trays, dividers, protective pads, and the product’s own shape. A glass bottle, cosmetic jar, candle vessel, electronics accessory, jewelry item, or multi-piece set may require clearance that is not obvious from the exterior measurement alone. If the product fit changes after the artwork is completed, the box structure may need adjustment, and that adjustment can affect the artwork panels.

For products with several size variants, I do not assume that one artwork file can be used without change across the full range. A consistent brand system can be retained, but a 30 mm-deep carton and a 60 mm-deep carton may require different logo placement, text hierarchy, barcode location, and panel composition. I use a separate approved dieline for each confirmed size so that every SKU is reviewed according to its actual structure rather than a visually similar approximation.

Packaging Structure Controls the Artwork Experience

The packaging structure determines how the artwork will be seen, touched, opened, and understood in the finished product. When I prepare artwork, I need to know whether the package is a straight tuck-end carton, reverse tuck-end carton, auto-bottom box, sleeve, corrugated mailer, corrugated shipping carton, paper bag, rigid box, or another structural format. Each structure has a different relationship between panels, folds, closure flaps, glue areas, and visible surfaces.

A folding carton is often cut and creased from one sheet, then folded and glued to form the final box. Its dieline may include a front panel, back panel, side panels, top and bottom flaps, dust flaps, and a glue tab. A corrugated mailer box may include a lid, locking tabs, interior panels, dust flaps, and multiple folds that affect both exterior and interior artwork. A rigid box may use separate greyboard components for the base and lid, along with a distinct wrapping-paper template. I do not apply the same artwork assumptions to these structures simply because they all result in a box.

The structure also determines the natural sequence of the customer experience. On a folding carton, the front panel may be the first surface seen in retail, while the top panel controls the opening interaction. On a mailer box, the exterior lid may carry the first brand message and the interior lid may become the main unboxing surface. On a rigid gift box, the lid, base, wrap edge, and insert create several separate moments of presentation. I place primary and secondary artwork according to that sequence instead of treating every panel as an interchangeable canvas.

I also consider which areas become hidden after assembly. A glue flap may disappear inside the box. A dust flap may only be visible during opening. A side panel can become visually narrow once the carton stands upright. An inside panel may be covered by an insert or product. The approved dieline allows me to see these relationships before the artwork is finalized, so I do not place a key message in an area that will be concealed or difficult to read.

Material Type and Thickness Change the Real Structure

The final packaging material must be considered before the artwork is approved because the material affects how the structure folds, stands, wraps, and presents the printed design. I do not regard a dieline as fully production-ready if it only defines the shape while ignoring the intended material. Folding carton board, corrugated board, kraft paper, coated paper, uncoated paper, rigid greyboard, and wrapping paper each have different physical characteristics and production implications.

Material thickness can influence crease behavior, flap overlap, internal fit, external dimensions, folding accuracy, and the final relationship between panels. A structure developed for a thinner board may not close or fold in the same way when a thicker board is used. The product space may become tighter, a flap may overlap differently, or a window may no longer frame the product in the intended position. I make sure the confirmed dieline reflects the material direction before final artwork is placed.

The surface of the material also affects visual expectations. Coated paperboard may reproduce fine printed detail, saturated colors, and sharp images differently from uncoated, kraft, recycled, or textured papers. Dark solid colors may look different across materials, and fine typography may require more careful review on a textured surface. If a package includes foil stamping, embossing, debossing, Spot UV, white ink, varnish, or lamination, the material and finishing combination can influence the appearance of the final artwork.

I also consider how the material behaves at folds. A large dark ink area, fine border, metallic finish, or detailed image positioned directly across a crease may need closer review because the fold changes the surface from a flat plane into an edge. I do not assume that a design that looks perfect on a digital screen will behave identically on every material. The approved dieline should represent the selected structure and material direction so the artwork can be assessed under realistic production conditions.

Product Fit and Insert Fit Must Be Resolved Before Final Artwork

A production dieline should account for the actual product, not only the outer box. When I assess a packaging structure, I need to understand the product dimensions, weight, shape, orientation, protective requirements, and removal experience. The product may sit directly inside the carton, rest in a paperboard insert, be held by a tray, be supported by foam, be separated by dividers, or be presented as part of a multi-item set. These internal requirements can change the final package dimensions and structural layout.

A package can appear correct from the outside while failing internally. It may be too loose, too tight, difficult to open, or unable to protect the product during handling. An insert may reduce the usable depth of the box, change the product’s position, or create a visible edge through a window opening. If the product fit is not confirmed before artwork is finalized, later structural adjustments can move folds, change panel sizes, alter a window position, or create a different opening direction.

This is especially important for packaging with product windows. A window may frame the product beautifully in a 3D mockup but reveal an empty area, tray edge, or off-center product in the physical box if the insert and product position have not been verified. I review the window, insert, and product as one connected system. The outside artwork should frame the actual visible product position, not an estimated position based on a flat layout.

I also consider the customer’s interaction with the product after opening. A box may technically hold the item but still create a poor unboxing experience if the product is difficult to remove, the insert catches on a flap, or the lid opens in an awkward direction. These functional details matter because a change made to solve them can affect the approved structure. I prefer to resolve product and insert fit before final artwork approval so the visual design remains aligned with the real packaging experience.

Outside and Inside Printing Need Separate Structural References

Artwork placement changes when a package includes printing on both the exterior and interior surfaces. When I work with a confirmed dieline, I identify exactly which panels print on the outside, which print on the inside, and which may be visible only after opening. This prevents a common problem in which an interior message is technically present in the flat file but appears upside down, hidden, or incorrectly positioned in the assembled package.

Exterior printing usually carries the information needed before purchase or before opening. It may include the logo, product name, product image, color system, product benefits, barcode, ingredients, or shipping information. Interior printing can support the unboxing experience with a message, pattern, illustration, instruction, brand story, or product-use detail. I do not assume that the orientation or hierarchy used on the exterior can be copied directly to the interior.

For example, artwork inside a mailer-box lid often needs a different orientation from the exterior lid so it reads correctly when the recipient opens the package. The same issue can occur on inside folding-carton panels, internal sleeves, rigid-box lid wraps, and inserts. I check the design in the physical opening position rather than relying on whether the text appears upright relative to the flat file.

Clear identification of inside and outside print surfaces also reduces mistakes during file review. If both sides contain similar backgrounds, patterns, or colors, the artwork can be difficult to interpret unless the layers, notes, and production references clearly distinguish them. I keep the structural dieline, exterior artwork, interior artwork, and special-finishing references organized separately so the production intent remains clear throughout the approval process.

Window and Handle Positions Cannot Be Treated as Late Design Changes

A window cutout or handle position should be confirmed in the structure before the final artwork is developed. These features change the physical material and affect the usable visual area of the package. I do not treat them as small decorative adjustments that can be moved after the design is complete, because they influence panel balance, product visibility, structural performance, and the placement of important artwork.

A window removes part of a printed panel and creates a frame around the product, insert, or interior surface. When I review a window, I check whether it reveals the intended part of the product, whether the internal tray keeps the product in the correct position, and whether surrounding artwork remains balanced. A window that is moved slightly can force changes to the logo position, product image, border, regulatory text, or safe zone. The final dieline must show the actual opening shape and location before artwork is locked.

A handle can affect the structural strength and visual center of a box or paper bag. It may be a die-cut opening, a reinforced handle area, a rope-handle position, a ribbon-handle attachment point, or another integrated feature. I avoid placing critical artwork where it may be cut away, obscured, weakened, or interrupted by the handle structure. I also consider how the package will look when carried, because a logo that appears centered in the flat file may appear off-balance once the handle and opening are visible.

Windows and handles also affect material performance. A large cutout can reduce panel strength, while a handle opening may require reinforcement or a different structural approach. These are not issues that artwork alone can solve. I use the production-approved dieline to make sure the visual design respects the confirmed functional structure rather than competing with it.

Production, Die-Cutting, Folding, and Gluing Must Match the Dieline

A packaging dieline is connected to a specific production process. It does not only describe the visual outline of the package; it provides the structural instructions that allow the material to be die-cut, creased, folded, glued, wrapped, or assembled consistently. When I review a production-approved dieline, I expect it to reflect the actual manufacturing method intended for that package.

Die-cutting requirements can affect the outline of the box, flap shape, corner design, perforation pattern, window opening, handle area, and crease arrangement. A corrugated mailer with locking tabs may require a different structural layout from a folding carton with a glue tab. A rigid box may use separate board components and wrapping allowances that are entirely different from a one-piece folding carton. I do not assume that a visual similarity between two packages means they can share the same production file.

Folding and gluing requirements also affect the usable artwork area. A folding carton glue flap should not be treated as a standard display panel. A corrugated manufacturer’s joint can interrupt a wraparound design. A seam may affect the alignment of a border, pattern, image, or typography. Some coatings and finishes can also influence glue adhesion, so the glue area may require special attention during file preparation. I check these areas before artwork approval because they can affect both the appearance and structural reliability of the finished package.

Special finishes make this relationship even more important. Foil stamping, embossing, debossing, Spot UV, white ink, varnish, lamination, perforation, and window cutting need to be positioned on the confirmed structure. If the dieline changes after these layers are prepared, their placement may no longer align with the final panels, folds, or openings. I treat special-finishing layers as production elements, not as decorative afterthoughts, and I keep them linked to the approved structural reference.

Never Resize or Stretch a Confirmed Dieline

I do not resize a confirmed dieline to adapt it to a different box size. A dieline may look like a collection of scalable shapes, but its proportions are based on the structural relationship between panels, flaps, folds, glue areas, and product space. Enlarging or reducing it without structural review can alter more than the visible dimensions of the artwork.

Stretching a dieline can be particularly problematic because it changes different directions by different amounts. A front panel may become wider, while the top flap, side panel, glue tab, and window opening are also distorted. The box may still appear reasonable in a digital application, but the physical structure may no longer fold, close, glue, or fit the product as intended. A distorted structural file can also create misalignment between artwork and the real die-cutting tool.

If the package size changes, I use a newly created or newly approved dieline for the revised dimensions. I may reuse the brand system, typography, images, and color direction, but I reposition each element on the new structure. This allows the design to remain visually consistent while respecting the actual panel proportions and production requirements of the new size.

Never Redraw or Move Structural Elements Inside the Artwork File

I do not independently redraw cut lines, move crease lines, extend flaps, reduce glue tabs, relocate windows, or alter structural elements in the artwork file. These lines are not decorative objects. They are connected instructions that define how the package will be manufactured. A change to one structural element can affect the function of several other elements in the same dieline.

Moving a crease line can change the width of a panel and the position of a fold. Adjusting a cut line can change the finished dimensions or visible edge of the package. Altering a glue flap can affect the assembly process and the available artwork space. Changing a window can affect product visibility and panel strength. I treat these elements as part of an engineered system, not as shapes that can be edited to improve a flat design composition.

If artwork needs more space for a product name, a larger barcode, additional ingredients, a language version, or a new regulatory requirement, I first reorganize the content within the approved structure. If the structure genuinely needs to change, I request or use a revised confirmed dieline before continuing. This keeps the structural file, artwork file, proof, and sample aligned rather than allowing an informal artwork edit to create an unrecorded production change.

Keep the Dieline Separate from Printable Artwork

I keep the dieline on a separate technical layer from the printable artwork. The structural layer may contain cut lines, crease lines, dimensions, panel labels, glue references, notes, and other technical information that helps interpret the file but is not intended to appear on the final package. The artwork layer contains the visual design, while separate layers may identify foil, embossing, debossing, Spot UV, white ink, varnish, windows, or other production treatments.

Flattening a dieline into the artwork makes the file harder to review and increases the risk of error. It can become difficult to tell whether a line is part of the design or part of the structure. It can also make future revisions less controlled, because the structural reference and visual elements are no longer clearly separated. In the worst case, technical lines, dimensions, or notes can mistakenly remain in the printable file and appear on the finished packaging.

A clean layer structure also helps manage revisions. If the structural dieline changes, I can compare the old and new references without losing track of the artwork. If a graphic changes, I can verify that the cut and fold information has not moved accidentally. This is particularly important for product ranges with multiple SKUs, language versions, ingredients, barcodes, seasonal editions, or repeated orders. Clear separation makes the file easier to understand, safer to update, and more reliable to approve.

A Generic Online Template Is Not a Final Production File

A generic online box template can help during early design exploration, but I do not use it as the final production file unless it has been confirmed for the exact packaging project. It may show a broadly familiar carton shape, but it may not match the final dimensions, board thickness, flap design, product fit, glue method, window position, insert, die-cutting approach, or folding sequence.

Two packages can look similar in a digital mockup while requiring very different dielines in production. One carton may use a different tuck closure. Another may need a wider glue flap. A third may include an insert, a window, a taller product cavity, or a different board thickness. These changes can move the panels and affect the safe placement of every logo, text block, image, barcode, and finishing element.

I use generic templates as learning tools or early visual references only. Before final artwork approval, I move the design onto the confirmed production dieline that represents the actual structure, material, dimensions, and assembly method. This protects the design from avoidable changes later and gives the production file a clear, traceable foundation.

A production-approved dieline allows me to create packaging artwork with greater confidence because the file reflects the physical package that will be made. It keeps final dimensions, material, structural panels, product fit, inserts, print surfaces, windows, handles, die-cutting, folding, gluing, and finishing references aligned from the beginning. By respecting the dieline as a structural production reference rather than altering it as a graphic layout, I can ensure that the artwork does not only look correct in a flat file but also performs correctly on the finished package.

How to Place Artwork on a Packaging Dieline

I approach packaging artwork placement as a production-planning task as much as a design task. A packaging dieline may look like a flat arrangement of panels, flaps, lines, and empty areas, but every part of that file has a physical role after printing. The front panel becomes the primary display surface, side panels create depth, flaps form the closure, glue areas connect the structure, and folds change the direction in which the customer sees the artwork. My goal is to place every visual and informational element where it will remain accurate, readable, and intentional after the package is die-cut, folded, glued, filled, and assembled.

I do not begin by dragging a logo or product image onto the largest apparent panel. I first confirm which version of the dieline is approved, what the finished package will look like, how the product fits inside, which panels are visible, where the opening is located, and which technical areas may affect the artwork. This prevents a common packaging mistake: designing a visually attractive flat file that does not work when it becomes a physical object.

The complete process is less about software commands and more about disciplined file preparation. I need the final structure, correct scale, identified panels, organized layers, protected content, and a realistic assembled review. Once those conditions are in place, the artwork can support both brand presentation and production accuracy without forcing the design to compensate for unresolved structural decisions.

Confirm the Final Size, Units, Scale, and Structural File

I begin by confirming that the dieline represents the exact package that will be produced. A file may be visually similar to the correct structure while still being unsuitable because it has a different size, board thickness, flap arrangement, insert, window position, or opening direction. Packaging artwork should never be treated as independent from the physical packaging specification. If the structure changes, the artwork can change with it, but I need to know that change before final design work is approved.

The measurement unit is the first detail I verify. Packaging files may be prepared in millimeters, inches, points, or another system. I do not judge a panel’s real size from how large it appears on screen because the viewing zoom is not a production measurement. A small panel can look wide at high zoom, while a large carton can appear compact when the whole dieline is fitted to the artboard. I check the measurement unit and the confirmed finished dimensions before deciding whether a logo, barcode, text block, or product image has sufficient space.

I also distinguish between the finished dimensions of the package and the overall dimensions of the flat dieline. A finished carton may have a relatively compact length, width, and height, while its flat production layout includes front, back, side, top, bottom, dust flaps, glue flap, bleed, and other structural areas. The total flat file therefore does not represent the size of the completed box. I read the dieline as a collection of connected finished panels rather than as one large printable rectangle.

File scale must also be confirmed before artwork is placed. I need to know whether the dieline is supplied at full production scale or reduced for a presentation drawing, sales layout, or sample discussion. A file can appear correctly proportioned on screen while still being unsuitable for direct production artwork if it is not at the intended scale. Image quality, text size, barcode dimensions, finishing placement, and panel proportions all depend on this relationship.

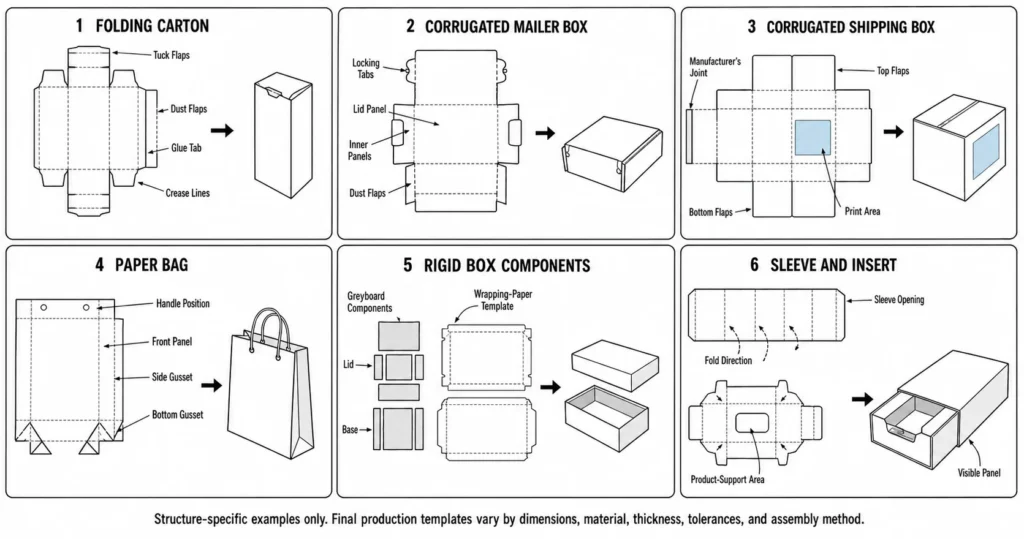

I then confirm the structural format. A folding carton, corrugated mailer, corrugated shipping box, sleeve, paper bag, rigid box, and paper insert use different panel relationships and manufacturing methods. A top panel in a tuck-end carton behaves differently from a lid panel in a mailer box. A glue flap in a folding carton is not equivalent to a manufacturer’s joint in a corrugated carton. A rigid box may have separate board components and wrapping-paper layouts rather than one foldable sheet. I do not place final artwork until I understand which structure the file represents.

Finally, I confirm the exact dieline revision and whether every contributor is working from the same approved version. This includes the person preparing the artwork, the person reviewing product information, the person approving compliance text, the person managing the packaging specification, and the person preparing the production file. A clear revision number, date, SKU name, and approval status reduce the risk of a current design being placed on an outdated structure. I regard this as part of artwork accuracy, not merely document administration.

Identify Every Visible, Functional, and Hidden Panel

Once the file version is confirmed, I identify every panel before placing final content. I label the front, back, left side, right side, top, bottom, interior panels, flaps, gussets, glue areas, and hidden structural sections. This step turns the flat dieline into a readable physical object and allows me to make design decisions based on what the customer will actually see.

The front panel is commonly the primary communication surface. I normally use it for the most important brand and product information because it is often the first panel seen on a shelf, in a product listing, during an unboxing experience, or when the package is held in the hand. The main logo, product name, central product image, collection name, or key visual message usually belongs here. However, I do not assume that the panel located in the center of the flat file is automatically the front. I confirm its position from the structural layout, panel labels, opening direction, and assembled reference.

The back panel usually provides more detailed information. It can contain ingredients, instructions, warnings, product claims, usage guidance, legal information, country-of-origin details, recycling information, barcode content, or brand contact details. I assess the available space carefully because the back panel often carries dense information that must remain readable and properly separated from folds, seams, and edges.

The left and right side panels add depth to the package and can support the main hierarchy without duplicating the front panel. I may use these areas for flavor names, product features, concise brand statements, short instructions, secondary images, shade names, or repeat logos. However, I do not treat side panels as unlimited spare space. Their final width may be narrow, and their visibility depends on how the package is displayed. A side panel can be useful for supporting content but may not be suitable for a message that must be understood immediately.

Top and bottom panels need their own review because they often rotate during folding and may serve different practical purposes. A top panel may be visible when the box is stacked, photographed from above, opened, or displayed in a retail tray. A bottom panel may be less prominent but can still hold product codes, a barcode, recycling information, batch reference space, or supporting details. I consider whether the customer can realistically see and read the panel in its intended use context before assigning important content to it.

Interior panels are especially important for packaging that creates an unboxing experience. The inside of a mailer-box lid, the interior walls of a carton, the underside of a flap, the inner surface of a sleeve, or the inside wrap of a rigid box may all become visible only after the package is opened. I check whether the interior content should be read from the customer’s viewpoint while opening the package. A message that looks correct in the flat file can be upside down or hidden once the lid is lifted.

Flaps, gussets, glue areas, and hidden panels are structural zones rather than standard presentation surfaces. A dust flap may only be seen briefly when the package is opened. A paper-bag side gusset may fold inward when the bag is empty and expand when the bag is filled. A bottom gusset changes shape when weight is added. A glue flap may be fully hidden after assembly. I avoid placing essential logos, legal text, barcodes, product names, or key claims in these areas unless their final visibility and function have been deliberately confirmed.v

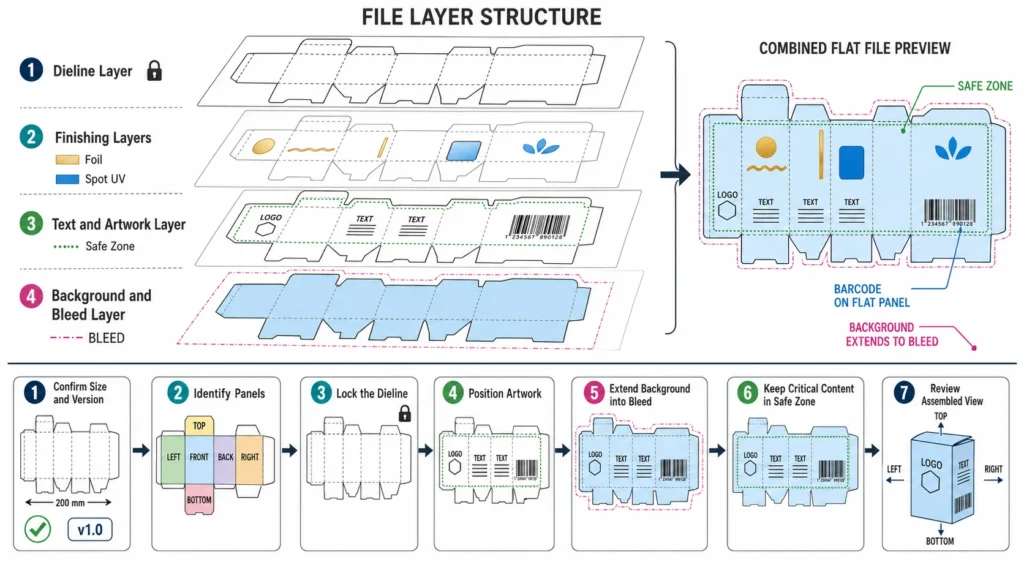

Organize and Lock the Dieline, Artwork, and Production Layers

I keep the file organized because a packaging artwork file contains more than a visual design. It combines structural references, printed graphics, text, images, bleed, finishing instructions, and sometimes white-ink or internal-print requirements. When all of these elements are mixed together, the file becomes difficult to review and easy to damage. Clear layer organization helps me separate what will be printed from what explains how the package will be made.

The dieline layer is the structural reference layer. It may contain cut lines, fold or crease lines, perforations, glue notes, window outlines, handle positions, dimensions, panel labels, and other technical instructions. I preserve this layer exactly as approved and lock it before placing final artwork. I do not move it to improve the appearance of the composition, and I do not redraw it from memory. The dieline is the production foundation, so the artwork must follow it.

The artwork layer contains the primary printed design. This can include logos, product names, images, illustrations, background colors, patterns, decorative shapes, brand graphics, and other visible elements. I keep this separate from the dieline so that I can review the visual design without confusing it with technical instructions. The separation also makes it easier to verify whether the artwork is correctly aligned to the approved structure.

I often keep full-coverage backgrounds and bleed on their own layer or in a clearly controlled background layer. Solid colors, photographs, gradients, patterns, and full-panel illustrations may need to extend beyond the cut line, while logos and text should remain inside the safe area. Separating the background from the text and main artwork makes that relationship easier to inspect. It allows me to confirm that the design reaches the edge without letting important content drift into a trim-risk area.

Text should remain easy to identify during review. Product names, ingredients, warnings, claims, instructions, contact information, language versions, and legal content often change later than the core visual design. By keeping text organized separately, I can compare revised copy, check spelling, confirm the correct market version, and review readability without disturbing the logo, photography, or background artwork.

Finishing layers should also be clearly separated and named. Foil stamping, embossing, debossing, Spot UV, varnish, white ink, window cutting, and perforation can require distinct production references. If I use a metallic foil logo, I do not rely on the standard artwork color to communicate the foil instruction. If a package uses Spot UV over selected details, I keep that treatment separate from the printed image. If white ink is required beneath color artwork on a transparent, metallic, dark, or colored substrate, I clearly identify it because it can affect opacity and final color appearance.

A well-organized file protects against accidental printing of technical lines. If cut lines, dimensions, fold guides, or notes remain merged into the visual artwork, they can become difficult to remove during production preparation. I keep the dieline separate, lock it, and ensure that the printable layers are clearly identified. This is not only cleaner for the designer; it makes the file safer for everyone who reviews or uses it later.

Place the Logo, Product Name, and Main Visual by Final Viewing Priority

I place the primary artwork according to the finished package’s real viewing sequence. The design should work when the package is seen in the way it will actually be sold, opened, shipped, displayed, or photographed. A flat file can make all panels appear equally important because they sit beside one another on the artboard. In reality, the front panel may receive most attention, the side panels may be seen only briefly, the top may appear during opening, and the interior may become visible only after purchase.

The logo should sit in a stable and recognizable position. I usually place it on the main visible panel where it can establish the brand quickly, but I also consider the proportions of the package. A logo that works on a wide front panel may feel too large or too compressed on a narrow carton. A logo placed close to a fold may visually break when the box is assembled. A logo placed too close to a cut edge may look crowded even if it is not technically trimmed.

The product name should have a clear hierarchy relative to the logo. I consider what the customer needs to understand first: the brand, the product type, the variant, the size, the flavor, the shade, or another differentiating detail. I do not allow the product name to become visually secondary simply because the flat artwork contains too many competing elements. Packaging should communicate in a short moment, so I make sure the front-facing hierarchy remains clear after the box is folded.

The main visual may include a product photograph, illustration, texture, brand pattern, color field, or special finish. I position it to support the form of the package rather than fight against the structure. A large image can extend across the front and sides, but I do not place a key detail directly on a crease or seam. A foil-stamped logo can add a premium effect, but it should not sit on an unstable fold or glue area. A decorative border may look precise in the flat file but appear uneven if it crosses a structural transition.

Supporting text should reinforce the main message without turning the front panel into a document. I may place concise product benefits, a flavor or shade descriptor, a collection name, a short product claim, or a limited-use instruction on the front or side panels. More detailed ingredients, warnings, instructions, and legal information usually need a dedicated stable area, often on the back panel. I balance the desire for information with the need for clear hierarchy, because a package that tries to communicate everything at once can become difficult to read.

Barcodes and QR codes are not filler elements for unused spaces. I position them based on function. They need a sufficiently flat and protected panel, suitable contrast, clear surrounding space, and separation from folds, seams, cut edges, glue areas, and visually busy graphics. I also consider whether the code remains accessible to the intended scanner, retailer, warehouse, or customer once the package is assembled. Their final performance should be verified in the printed form rather than approved only from the digital screen.

Check Orientation According to the Assembled Package

Artwork orientation must be reviewed in the assembled package because panels change direction when they are folded. I do not expect every item in the flat dieline to appear upright relative to the main front panel. A top panel can look upside down in the open file yet become correct when the box is closed. An interior-lid message can look rotated on screen but become readable only when the customer opens the package.

I check the orientation of every text element, including logos, product names, ingredient lists, warnings, instructions, barcodes, QR codes, batch areas, interior messages, and directional graphics. A top panel, bottom panel, side panel, inside panel, flap, or mailer-box lid may require a different artwork orientation from the front panel. If I approve the file based only on the flat layout, I can miss an error that becomes obvious only after assembly.

The opening direction is especially important. A message on the inside of a mailer-box lid should be oriented for the person looking into the open box, not for the person looking at the flat dieline. A pattern inside a folding carton should be checked according to the final interior surface. A top-panel logo should be tested from the intended viewing angle when the carton is standing upright. I use the actual package journey as the orientation reference.

I verify orientation through a 3D structural view, a folded mockup, or a blank physical sample. A 3D view can help explain the relationship between the flat file and the assembled package, but I use a folded sample whenever the structure is complex, the artwork wraps across multiple panels, or the interior design matters. A sample makes it possible to hold the package, turn it, open it, and see the actual reading direction of each panel.

Extend Edge-to-Edge Background Artwork into the Bleed

I extend backgrounds into the bleed whenever the visual design is intended to reach the finished edge of the package. Solid background colors, photographs, patterns, gradients, full-panel illustrations, and edge-to-edge textures should normally continue beyond the final cut line into the production bleed area. This protects the finished appearance of the package if normal die-cutting movement occurs.

A background that stops directly at the cut line can create a visible unprinted edge after die-cutting. This can be particularly noticeable with dark colors, saturated backgrounds, full-coverage photography, or sharp geometric layouts. Even a narrow light edge can make the final package feel less controlled. I use bleed to ensure that the visual background continues through the trim boundary rather than ending exactly where the cut is expected to occur.

The bleed area is not the correct place for critical content. I keep logos, product names, ingredient panels, warnings, barcodes, QR codes, fine borders, and small typography inside the safe area. The purpose of bleed is to protect background coverage, while the purpose of the safe area is to protect information. These two areas should not be confused, because they solve different production risks.

I follow the applicable approved production specification rather than assuming one bleed allowance applies to all packaging. The appropriate requirement can vary according to the material, structure, finished size, printing method, die-cutting process, and visual design. I therefore check the confirmed dieline and production instructions before deciding whether the background extension is correct.

Review Wraparound Artwork, Cross-Panel Graphics, and Seams

Artwork that crosses folds, panels, or seams requires more careful review than artwork contained inside one stable panel. A wraparound graphic, continuous pattern, large type treatment, cross-panel illustration, or precise line can make packaging feel distinctive and immersive. However, the flat layout does not show every physical effect created by folding, material thickness, seams, glue joints, and changes in viewing angle.

I review a wraparound graphic by identifying which part of the design must remain visually continuous and which parts can tolerate a slight break. A broad background texture or abstract pattern is usually more forgiving than a precise border or detailed image. If the most important area of an illustration crosses a fold, the fold can divide it visually or create a small shift after assembly. I try to keep faces, product details, fine typography, logos, and other high-value visual features on stable panels where possible.

Continuous patterns and lines should be assessed in the assembled view. A repeating pattern may flow naturally across a front and side panel, but a narrow geometric line, symmetrical illustration, or color transition may reveal even a small variation at the fold. I do not assume that perfect alignment in the flat file guarantees an identical visual result on the finished box. The structure and material can create a visible separation at the crease, even when the printing is correctly registered.

Large typography crossing panels also needs a practical reason. It can create a bold visual statement, but it may be difficult to read when the package is viewed from the front. A word that begins on the front and continues around the side can feel incomplete unless the customer turns the box. I use this technique only when the design concept supports it and when the main product information remains understandable from the primary view.

Glue joints and seams create another potential interruption. A folding-carton glue flap may form a narrow seam, while a corrugated box may have a larger manufacturer’s joint. If a design wraps around the package, I check whether the seam falls in a visually quiet area. I do not place exact borders, small text, or critical image details where a joint can break the intended alignment. The assembled package, rather than the flat file, is the final test for this relationship.

Protect Critical Content for Production, Compliance, and Multiple Markets

Critical content should be placed in protected, stable, and readable areas of the dieline. I give special attention to logos, product names, ingredient lists, warnings, regulatory text, product claims, batch information, barcodes, QR codes, contact information, country-specific language versions, and SKU identifiers. These elements can have commercial, operational, and legal importance, so I do not treat them as secondary details that can be placed after the visual design is finished.

Logos and product names need protection because they carry the primary identity of the product. I keep them away from cut edges, folds, seams, windows, handles, and glue areas. Ingredients, warnings, and regulatory text need enough stable space to remain readable after printing and folding. I avoid breaking an ingredient list or warning statement across a crease, positioning it too near a bottom closure, or placing it where an insert or product may hide it after opening.

Product claims should also be reviewed carefully. A claim can appear correctly in one market version but require different wording, supporting information, or placement in another. When a package is sold across several countries, I confirm that the relevant language, product details, barcode, legal statements, and contact information are associated with the correct SKU version. A shared logo and visual system do not mean that every text element can be copied unchanged across all markets.

Batch information often needs a planned space because it may be added during a later production stage through printing, stamping, inkjet marking, embossing, or another method. I identify a suitable area early, ensuring that it remains visible, flat enough for the intended application, and separate from critical artwork or special finishes. Adding a batch area at the last moment can create conflicts with text, pattern, foil, or background graphics.

Barcodes and QR codes need both proper placement and final testing. I place them on panels that remain flat and accessible, with clear surrounding space and adequate contrast. I avoid folds, curved areas, glue seams, high-gloss glare where relevant, busy photographic backgrounds, and locations close to a cut line. A code that appears clear in a PDF may perform differently after printing, coating, folding, and handling, so I regard printed verification as part of the final review.

For multi-SKU packaging programs, I separate shared information from variable information. The logo, visual style, color system, structural file, and selected finishing areas may remain consistent across the range. Product names, ingredients, claims, language versions, barcodes, batch areas, and SKU codes may change. I maintain clear file naming, revision control, and content review so that the correct structure is paired with the correct artwork version before production begins.

I place artwork on a packaging dieline by working from the confirmed physical package outward. I verify the file, scale, structure, and revision; identify every visible and hidden panel; protect the technical layers; position the primary design around the real customer experience; check orientation after folding; extend backgrounds into bleed; review cross-panel graphics; and secure critical content for production and market use. This process allows the final packaging to look intentional on screen and remain accurate when it becomes a finished product.

Packaging Artwork File Requirements for Print Production

I treat a packaging artwork file as a production document, not simply as a finished visual design. Before a package can move confidently from approval to printing, the file must preserve the information needed to reproduce the artwork on the correct dieline, at the correct scale, with the intended colors, images, text, codes, finishes, and structural references. A file may look complete in a presentation or on a screen while still missing the editable, linked, layered, or technical information required for print preparation.

When I review a print-production file, I focus on whether the artwork can be opened, checked, edited where necessary, separated into production components, and matched to the approved packaging structure. I also check whether the content remains accurate for the intended SKU, product market, language version, and revision. This approach helps prevent problems that are often discovered too late, such as missing images, substituted fonts, incorrect colors, unscannable barcodes, misaligned foil, or artwork placed on an outdated dieline.

The goal is not to create a complicated file for its own sake. I want the file to be clear, traceable, and reliable for everyone involved in the packaging workflow. A well-prepared artwork file makes it easier to review the design, prepare prepress files, produce a sample, compare revisions, and maintain consistency in repeat orders.

File Formats and Editable Artwork

I prefer artwork formats that preserve editable vector information when the packaging design contains logos, typography, line art, icons, finishing shapes, dieline references, or other elements that need to remain sharp and controllable at final production size. Adobe Illustrator files, commonly saved as AI files, are widely used because they can retain vector artwork, layers, linked or embedded images, spot-color references, and production notes. They are particularly useful when the packaging design needs ongoing edits, separate finishing layers, or careful alignment to the dieline.

EPS files can also preserve vector artwork and are often used to exchange logos, illustrations, and simple graphic elements between systems. However, I review them carefully because an EPS file may not retain the same level of layer organization, transparency handling, or editability as the original source file. EPS can be useful for individual vector assets, but it does not always function as the most practical master file for a complex packaging design with multiple panels, images, languages, and special finishes.

An editable PDF can also be valuable in packaging production when it preserves the correct vectors, fonts or outlines, image data, color references, and page scale. I do not assume that every PDF is equally suitable. Some PDFs retain editable vector objects and high-quality image information, while others are flattened exports created only for review or presentation. I check how the PDF was generated and whether the essential artwork elements remain usable before treating it as a production-ready file.

Other vector-compatible formats may be appropriate depending on the workflow, but I always assess whether they preserve the information needed for the specific package. The important question is not simply whether a file has a familiar extension. I need to know whether the logo remains vector-based, whether the text is handled correctly, whether images are available at the intended quality, whether spot colors and finishing layers are retained, and whether the artwork still aligns with the approved dieline.

A JPEG is generally useful as a visual reference, product image, or presentation asset, but I do not treat it as a complete packaging artwork source file. It is usually flattened, meaning that text, logos, images, and backgrounds are merged together into one raster image. I cannot reliably isolate a foil area, correct a spelling change, adjust a barcode, move a logo, or replace an outdated ingredient list without rebuilding parts of the design. A screenshot has the same limitation and may also have reduced quality, inaccurate color appearance, or no reliable scale.

A flattened mockup can show the intended visual direction, but it cannot replace production artwork because it may hide the layers, structure, image links, and technical notes needed to prepare the real file. An ordinary presentation PDF may be excellent for stakeholder review, yet it may not contain the editable information required for prepress. I use these files to understand the intended design, but I rely on the confirmed editable production artwork when preparing packaging for print.

CMYK, Pantone, and Brand Colors

I review color as a print-production decision rather than as a screen-design decision. A screen displays color through light, usually in an RGB environment, while printed packaging reproduces color through inks, substrates, coatings, and production controls. This means that the bright color shown on a monitor is not automatically the color that will appear on paperboard, corrugated board, kraft paper, wrapping paper, or another packaging material.

CMYK process printing uses cyan, magenta, yellow, and black inks to reproduce a wide range of colors through printed dots and combinations of those inks. I use CMYK when the packaging design includes full-color photographs, illustrations, gradients, or multiple colors that can be reproduced through process printing. It is a common approach for packaging artwork, but the final appearance can still vary according to the material surface, ink coverage, coating, printing process, lighting condition, and other production factors.

Pantone or another defined spot-color system may be specified when a brand requires a particular color reference that needs closer control than a standard CMYK conversion can provide. I may use a spot color for a recognizable brand color, a metallic effect, a special ink, or a design that requires a specific color treatment. However, I do not assume that naming a Pantone reference alone guarantees an identical result across every material and packaging format. The material, finish, printing method, and approved production reference still influence how the color appears.

RGB colors are designed for digital displays and can change when they are converted into a print color space. A vivid blue, fluorescent green, bright orange, or highly saturated purple may look different when translated from screen light into printed ink. I therefore avoid approving packaging color by comparing only what appears on a laptop, phone, or desktop monitor. Screen settings, brightness, display technology, viewing conditions, and color profiles can all affect what a person sees.

I use the artwork file to define the intended color references, but I use a proof or printed sample to evaluate how those colors actually appear on the selected packaging material. A deep black may look different on coated paperboard and uncoated kraft paper. A brand color may shift when printed beneath matte lamination, gloss varnish, foil details, or a textured wrapping paper. I consider the physical result alongside the digital color specification because packaging color is experienced on a real object, not only on a screen.

For repeat packaging programs, I keep the brand-color references consistent across approved files. I make sure that the relevant color information is clearly identified, that the artwork uses the intended process or spot-color setup, and that any approved sample or production reference is recorded. This helps maintain a more controlled result when multiple SKUs, languages, packaging sizes, or repeat orders are involved.

Image Resolution and Linked Assets

I review image resolution according to the image’s effective resolution at the final printed size. A photograph can appear sharp when it is viewed small on screen but become soft, pixelated, or unclear when enlarged for a package panel. The image’s available detail must be considered in relation to the size at which it will actually print, not only the pixel dimensions shown in the original file.

When I enlarge an image, I reduce its effective resolution. A product photograph that is suitable for a small panel may not remain suitable when expanded to cover a large front panel, a wraparound carton design, or a full-width mailer-box lid. Enlarging a raster image does not create genuine detail; it spreads the existing pixels across a larger area. I check whether the image will still support the intended print quality after it is placed at final size on the dieline.

I do not rely on one universal resolution number for every artwork situation. The appropriate requirement can vary according to the image type, final print size, printing process, viewing distance, packaging material, design detail, and visual purpose. A large background texture viewed from a normal distance may have different needs from a close-up product photograph, small ingredient icon, or detailed illustration. I assess the actual use of the image rather than applying a single rule without context.

Linked and embedded images require careful file review. A linked image remains outside the main artwork file and is referenced by its file path. This can keep a working file lighter and make image updates easier, but it creates a risk if the linked file is moved, renamed, replaced, or unavailable when the artwork is opened elsewhere. An embedded image is stored inside the artwork file itself, which can make the file more self-contained but may increase its size.

I check that every required linked image is present, current, and correctly connected before final submission. A missing link may cause an image to disappear, display at reduced quality, or be replaced by an unintended preview. A linked image can also be updated accidentally if another person replaces the source file without maintaining revision control. I use clear asset management and file review so the final artwork contains the intended version of every photograph, texture, illustration, and supporting image.

Image cropping requires additional attention when the artwork crosses folds, panels, windows, seams, or opening areas. A product image may appear balanced on the flat file but lose an important detail when the carton is folded. A face, label, product edge, or focal point may move into a side panel, disappear behind a glue seam, or be divided by a crease. I review the image in the assembled package view and make sure that the important visual information remains on stable and visible panels.

Fonts, Small Text, and Reverse Text

I review typography as a functional part of the packaging file because text must remain accurate, readable, and stable throughout prepress and production. A design can use attractive typography on screen while still creating production risk if the font is unavailable, substituted, too thin, too small, placed over an unstable background, or positioned close to a fold or cut edge. I check text according to its purpose and final physical use rather than only its appearance in the digital layout.

Font embedding can help preserve the intended typeface when a file is shared or exported, particularly in PDFs. However, I still confirm whether the file can be opened and processed correctly in the relevant workflow. Converting fonts to outlines can prevent a missing font from being substituted, because the characters become vector shapes rather than editable text. This can be useful for final approved artwork, but I keep an editable source version as well because outlined text is more difficult to revise if a product name, warning, language version, or legal statement needs correction later.

Small text requires a practical review. Ingredient lists, directions, legal statements, barcode numbers, batch information, recycling details, contact information, and multilingual content can become dense on a packaging panel. I do not assume that text is acceptable merely because it can be read when magnified on screen. I consider the printed size, typeface weight, letter spacing, line spacing, contrast, material surface, printing method, coating, panel size, and expected viewing condition.

I avoid stating that one minimum type size works for every packaging project. A type size that is readable on a large coated carton may not perform the same way on uncoated paper, textured wrapping paper, dark kraft board, a narrow side panel, or a package containing multiple languages. Thin typefaces, fine serifs, very tight spacing, and delicate reverse text often require more caution because small changes in ink spread, material absorption, or production conditions can affect clarity.

Reverse text, meaning light text printed over a dark or saturated background, needs particular attention. I make sure that the text has sufficient visual strength and contrast, especially when it contains small type, regulatory details, or information that must be read quickly. A thin white line of text can look elegant in a digital design but become weak, filled in, or difficult to read on the final package if the material, printing, or coating does not support the intended detail.

Multi-language packaging creates another layer of responsibility. I check that the correct language version is present, that translation content is associated with the correct SKU, that the hierarchy remains readable, and that the layout does not compress important information into an unstable or overcrowded panel. Regulatory information should not be treated as leftover copy. I give it a stable place in the artwork and ensure it remains clear after folding, finishing, and final assembly.

Barcodes and QR Codes Must Be Designed for Physical Scanning

I treat barcodes and QR codes as functional production elements rather than decorative graphics. Their role is to be scanned accurately by a retailer, warehouse, logistics system, customer, or other user. A code can look visually correct in a digital proof and still fail after printing if it is too small, placed on a fold, positioned on a reflective surface, distorted by the structure, or printed with insufficient contrast.

I place barcodes and QR codes on stable, sufficiently flat areas of the package. I avoid crease lines, folding edges, glue seams, window cutouts, curved or unstable surfaces, handle areas, and locations too close to the cut line. A code placed across a fold can distort physically when the package is assembled, interrupting the pattern needed for scanning. A code placed near a seam may be partially obscured or affected by uneven material overlap.

Contrast is essential. I make sure the code has a clear difference between its dark and light areas and avoid placing it over a busy photograph, strong pattern, metallic foil, textured surface, or low-contrast color combination. A code may appear visible to the eye but still be difficult for a scanner to read. I also preserve the required clear space around the code so surrounding text, borders, images, or finishing effects do not interfere with its function.

The final printed size should be reviewed according to the intended barcode or QR-code specification and final packaging use. I do not rely on visual scale alone. A code can appear large when zoomed in on screen but be too small in the actual printed package. Conversely, a code may fit physically on the panel but still be unsuitable if it is placed on an area that folds, scuffs, or receives heavy visual interference.

I regard final testing as essential. A barcode or QR code should be tested from the actual printed sample or final production material where possible, rather than approved only from the screen preview. Printing, material texture, coating, lamination, folding, and finishing can change its real-world performance. The question is not whether the code looks correct in the file; it is whether it scans correctly on the finished package.

Keep Special Finishes on Separate, Clearly Named Layers

I separate special finishes from standard printed artwork because each finish represents a distinct production action. Foil stamping, embossing, debossing, Spot UV, white ink, varnish, window cutting, and perforation should not be left as vague visual notes within the main design. I use clearly named and distinguishable layers or production references so that the intended treatment can be identified, checked, and positioned accurately on the approved dieline.

Foil stamping often requires a dedicated shape that identifies exactly where the foil will appear. I do not rely on a metallic-looking color in the artwork to communicate a foil instruction. The foil layer should show the intended logo, text, line, pattern, or graphic area clearly, allowing the production reference to remain separate from the CMYK or spot-color artwork.

Embossing and debossing also need their own references because they change the physical surface of the packaging. I consider how the raised or recessed detail interacts with printed artwork, folds, panel edges, inserts, and other finishes. A detail that looks attractive as a flat graphic may lose definition if it sits too close to a crease or overlaps an unsuitable structural area. I keep the embossing or debossing instruction separate so it can be reviewed as a physical production feature.

Spot UV and varnish may be used to highlight a logo, image, pattern, or selected text area. I define these areas separately because the visual contrast depends on the relationship between the coating and the underlying printed surface. A Spot UV layer can be misinterpreted if it is merged into the standard artwork, particularly when the design uses dark colors, gloss finishes, or other subtle details.

White ink requires clear handling when used on transparent, metallic, dark, colored, or non-standard materials. It may be used as a visible graphic element, an opacity layer beneath color artwork, or both. I identify it clearly because the order and treatment of white ink can affect the appearance of the final colors. A file that simply shows a light-colored design may not communicate whether white ink is required beneath it.

Window cutting and perforation should also be shown as clear structural production elements. A window changes the visible artwork area and product presentation. A perforation creates a controlled tear or opening line that can separate artwork during use. I make sure these elements are distinguishable from ordinary printed graphics and from the standard cut and fold references.

File Organization, Naming, and Approval Control

I keep the final artwork file organized because a clear file reduces production risk and makes later review more efficient. The file should have meaningful layer names, a clean artboard, confirmed assets, and a structure that allows another qualified reviewer to understand what each element represents. I avoid leaving the final file filled with hidden experiments, unused images, old text, unnamed layers, duplicate graphics, or temporary notes that could create confusion.

Clear layer names help me separate the dieline, exterior artwork, interior artwork, backgrounds, text, finishes, white ink, barcode content, and any other production-specific elements. A reviewer should not need to guess whether a layer contains printable artwork, a technical reference, or a special finishing instruction. This is especially important when more than one person is involved in the packaging workflow or when the project may be repeated later.

I use a clean artboard that contains the correct approved dieline, current artwork, required bleed, and relevant production layers without unrelated layouts or older packaging versions nearby. Hidden objects, unused images, old logo versions, abandoned text, and duplicate layers should be removed or clearly archived outside the final production file. A hidden object can still create confusion during editing, exporting, or prepress review if it has not been managed properly.

I confirm that all required assets are embedded or supplied correctly. If the file relies on linked images, I make sure the links are intact and the source assets are included in a controlled package. I do not allow a final file to depend on an unknown folder path, an unverified external link, or an image that another contributor may replace without notice.

Consistent filenames are essential for SKU control and repeat orders. I use a name that clearly identifies the product, packaging format, size or structure where relevant, market or language version, revision number, and approval status. A filename should make it possible to distinguish between a working file, a version under review, an approved file, and an outdated file without relying on memory or email history.

Revision numbers and approval status create a traceable record of what was reviewed. I do not treat a file as final merely because someone called it “final” in a message. A clear revision reference, approval date, responsible reviewer, and applicable SKU or market help ensure that the correct artwork is connected to the correct structure. This becomes particularly valuable when the package is updated for a new barcode, product formula, language version, legal statement, finish, material, or repeat order.

A print-production artwork file should be accurate, editable where necessary, structurally aligned, and easy to review. I verify that the file uses suitable artwork formats, appropriate color references, adequate image assets, stable typography, functional codes, clear special-finishing layers, and disciplined version control. When these elements are prepared carefully, the artwork becomes more than a visual layout: it becomes a dependable production reference for the finished package.

How Dielines Differ by Packaging Structure

I do not use a standard folding-carton dieline as the reference point for every packaging project because each structure is built, opened, carried, wrapped, filled, and handled differently. A dieline is not only a flat outline of a package; it is the production map for a specific physical construction. When the construction changes, the panel relationships, folds, seams, glue areas, visible surfaces, and artwork risks change with it.

A folding carton may be printed on one sheet, die-cut, creased, folded, and glued into shape. A corrugated mailer box may rely on locking tabs, a lid panel, interior walls, and larger folds. A shipping box may include top flaps, bottom flaps, and a manufacturer’s joint that affects the printable surface. A paper bag expands through side and bottom gussets when it is filled. A rigid box is normally built from separate greyboard parts and then wrapped with printed paper. A sleeve overlaps another package, while an insert must fit both the product and the outer structure.

When I review artwork across these formats, I first ask how the structure changes from flat to assembled form. I then identify which areas remain visible, which become hidden, which receive pressure during folding or carrying, which areas need adhesive, and which parts must align with another packaging component. This prevents artwork from being copied from one packaging format to another without adjusting for the real construction.

Packaging Type	Dieline Elements to Check	Main Artwork Risk
Folding cartons	Tuck flaps, dust flaps, glue tab, crease lines, and closing direction	Text, logos, or details crossing folds or entering glue areas
Corrugated mailer boxes	Locking tabs, lid panel, dust flaps, interior panels, and exterior panels	Incorrect artwork orientation after the box is assembled or opened
Corrugated shipping boxes	Top and bottom flaps, manufacturer’s joint, seams, and usable print areas	Graphics, borders, or text being interrupted by seams or shipping use
Paper bags	Front, back, side gussets, bottom gusset, folded top, and handle positions	Artwork disappearing into folded gussets or becoming distorted when the bag expands
Rigid boxes	Greyboard components, lid and base parts, wrapping-paper templates, and turn-in areas	Treating wrapped board construction like a one-piece folding carton
Sleeves	Openings, overlap, seam placement, and the final visible panels	Important content appearing on the hidden overlap or inner side
Paper inserts	Fold direction, support openings, tabs, dividers, and final product position	Poor product fit, hidden artwork, or visible surfaces facing the wrong direction

Folding Carton Dielines

I read a folding-carton dieline as a connected one-sheet structure that becomes a box through cutting, creasing, folding, and gluing. This format is common for retail packaging because it can offer strong print presentation, efficient flat storage, flexible sizes, and many closure styles. However, the fact that a folding carton is made from one sheet does not mean that every panel should be treated as one continuous graphic surface. The structure creates visible faces, folds, hidden flaps, and glued seams that must be understood before artwork is placed.

The main carton body commonly includes a front panel, back panel, left side panel, and right side panel. I identify these panels based on the confirmed assembled structure, not based on their position in the flat file. The front panel usually carries the main logo, product name, core image, or strongest product message. The back panel often carries detailed content such as ingredients, instructions, warnings, barcode information, product claims, recycling details, and contact information. The side panels can support the design with secondary messaging, repeat branding, flavor names, shade names, feature descriptions, or multilingual content.

I do not assume that the front panel is always placed in the middle of the dieline or that it will be the largest rectangle in the file. A dieline may be rotated for production efficiency, and different carton styles may arrange the panels in different sequences. I use panel labels, the glue-tab location, the closing flaps, and an assembled structural reference to confirm which face becomes the main customer-facing surface.

Tuck flaps are the primary closure flaps that fold into the carton opening. Their direction changes according to the carton style. In some structures, the top and bottom tuck flaps may close in the same direction; in others, they close in opposite directions. I review the closing direction because it affects the orientation of artwork on the top and bottom panels. A logo or short message can look sideways or upside down in the flat file but become correct after the carton is closed.

Dust flaps are the smaller side flaps that fold inward during closure. They help create the structure and may support the product, but they are usually not reliable display areas. I avoid placing key messages, product claims, barcodes, or legal text on dust flaps because they may be hidden, partially covered, or visible only while the carton is open. If artwork extends onto a dust flap, I make sure that it is decorative or non-critical and that it will not look incomplete when the carton is closed.

The glue tab is the narrow panel used to join the carton body. In the finished package, this tab becomes part of the glued seam and may sit inside the carton or along a side edge. I treat it as a functional manufacturing area rather than free artwork space. A logo, detailed image, barcode, fine border, or text line placed over the glue tab can become hidden, interrupted, or misaligned after assembly. I also consider whether heavy ink coverage, coating, foil, or another special finish could affect adhesion in the glue area.

Crease lines divide the main panels and show where the paperboard will fold. I use them to understand where the front becomes a side, where the side becomes the back, and where the closure flaps turn inward. A background color can cross a crease successfully, but small text, fine lines, barcodes, QR codes, faces, product details, and precise borders require more care. The fold can create a visible break, shadow, or slight change in alignment in the assembled package.

The closing direction affects the customer’s experience as well as artwork orientation. A tuck flap can become the visible top of the box, an opening surface, or part of the bottom closure. I check whether the product name, logo, sealing message, opening arrow, or other graphic element reads correctly when the carton is held in the intended position. I do not approve the artwork only because it appears upright in the flat dieline; I confirm that it reads correctly once the structure is folded and closed.

Corrugated Mailer and Shipping Box Dielines

I review corrugated packaging as a separate structural category because the material, closure methods, panel sizes, and shipping function are different from a standard folding carton. Corrugated board normally uses liner layers and a fluted medium, giving the package more thickness and structural protection. This makes it suitable for e-commerce delivery, subscription boxes, product kits, bulk shipping, retail-ready transport packaging, and heavier products, but it also changes the way folds, seams, artwork, and panel relationships should be read.

A corrugated mailer box often includes a large lid panel, front wall, side walls, bottom panel, dust flaps, locking tabs, and interior surfaces. The flat dieline can be visually complex because several areas become both structural supports and visible customer-facing panels after assembly. I identify the exterior lid, exterior front, inner lid, inner side panels, product cavity, and locking areas before placing artwork. This helps me distinguish the customer-facing design before opening from the unboxing design after the lid is lifted.

Mailer-box artwork orientation requires careful checking. The outer lid is often the most visible exterior surface, but the inner lid may become the most memorable surface during unboxing. The text or artwork inside the lid may need a different orientation from the exterior graphics so that it reads correctly when the recipient opens the box. I do not assume that the interior artwork follows the same direction as the outer lid just because both are connected in the flat dieline.

Locking tabs are important functional areas in a mailer box. They can tuck into slots, fold around edges, or lock the lid and base together. I do not place essential text, barcode content, precise graphics, or small finishing details on these tabs because they can bend, overlap, become hidden, or show wear during repeated opening. A background pattern may extend into a tab area, but the design should not depend on that area remaining fully flat or visible.

Dust flaps and inner walls can contribute to the unboxing experience, but I assess them in relation to the product and insert. A printed inner panel may be covered by tissue paper, an insert, a tray, or the product itself. A large interior logo can be effective if it remains visible after the package is opened, but it can lose value if it is hidden beneath the contents. I review the assembled box with the actual or representative product arrangement wherever possible.

A corrugated shipping box has a different priority. It may include front, back, and side panels, but it also has top flaps, bottom flaps, tape areas, handling surfaces, potential shipping-label areas, and a manufacturer’s joint. I do not treat it as a retail carton with uninterrupted artwork around every side. The package may be stacked, taped, labeled, handled by multiple parties, and exposed to abrasion during logistics. The artwork should support the intended brand or shipping purpose while respecting these realities.

The manufacturer’s joint is the seam where the corrugated body is connected during production. It can affect a larger area than the glue tab on a folding carton. I identify it before placing a continuous graphic, border, product image, or text line. If a design wraps around the box, I make sure that the seam sits in a visually less sensitive area. A small mismatch at a corrugated joint can be more noticeable when the design uses exact lines, repeated logos, detailed illustrations, or high-contrast color transitions.

Top and bottom flaps also affect the usable artwork area. The top may be covered by tape, a shipping label, or handling marks. Bottom panels may not be visible during storage or display. I consider the final logistics use before placing a critical logo, claim, or product message in an area that may be obscured. Corrugated packaging can still carry strong branding, but I design its artwork around the structure’s shipping role instead of assuming that every panel remains clean and visible like a premium folding carton.

Paper Bag Dielines

I read a paper bag dieline as an expanding structure with changing surfaces. A bag may be printed flat and look like a simple front-and-back layout before assembly, but its form changes when it is opened, filled, carried, and stored. The side gussets expand to create depth, the bottom gusset forms a base, the top may be folded or reinforced, and the handles influence both the structure and the visual balance of the bag.

The front panel is normally the main branding surface. I often place the primary logo, central visual, or brand statement on this panel because it is the side most likely to be seen in a store, at an event, during gifting, or while the bag is carried. The back panel may repeat the identity, include contact information, carry a shorter supporting message, or remain visually simple. I do not assume the front and back need identical artwork. Their roles can differ according to how the bag will be presented and used.

Side gussets are folded sections that create the bag’s depth. When the bag is empty and folded flat, the gussets may appear as narrow panels or be almost hidden. When the bag is filled, they expand and become visible from the side. I treat them as flexible structural zones rather than stable display panels. A logo or text placed across a gusset may disappear when the bag is folded or become visually divided when the bag expands.

I also consider the product load. A small gift bag with a light item may keep its intended shape easily, while a larger retail bag carrying heavier products can expand more strongly through the side and bottom gussets. This can affect the way a pattern, image, or color block appears. A design that depends on exact panel alignment may not remain visually consistent when the bag changes form under weight. I use more forgiving artwork across gussets unless the structure and filled condition have been tested carefully.

The bottom gusset is the area that creates the base of the bag. It is folded flat before use and forms a standing surface when the bag is opened. I check how the bottom panels fold because this area can affect the lower edge of front and back artwork. Important text or logos should not sit so close to the bottom folds that they become distorted, hidden, or visually crowded once the bag is standing. The bottom is often more suitable for subtle graphic continuation or information that does not need immediate visibility.

Fold-over tops can reduce the usable print area near the upper edge. A bag may have a reinforced top, folded rim, handle patch, or turn-over section that changes how the artwork appears. I avoid placing a fine border, small text, or logo too close to this area until I understand the finished top construction. What looks like available flat space in the dieline may be concealed by a fold or affected by the handle reinforcement in the assembled bag.

Handle positions are central to the way the bag is carried and seen. Rope handles, ribbon handles, twisted-paper handles, flat-paper handles, and die-cut handles all occupy or affect the top area of the bag. I check whether the handle opening or attachment point interrupts the logo, changes the optical center of the design, or creates visual imbalance. I also review how the bag looks while being carried because a person’s hand, the handle movement, and the bag’s contents can all change the visible artwork.

I review a paper bag in flat, open, filled, and carried positions. A flat dieline can show the print layout, but it cannot fully show how the side gussets unfold, how the bottom stands, or how the handle changes the visual center. This physical review helps me make sure that the artwork remains recognizable and intentional throughout the bag’s real use.

Rigid Box Dielines

I treat rigid-box dielines as a separate packaging system because rigid boxes are not usually formed from one folding sheet. Their structure is normally created from separate greyboard components that make the lid, base, side walls, shoulder, neck, tray, or other structural parts. The visible printed surface is then created by wrapping those board parts with paper. This means that a rigid-box artwork file often includes different templates for the structural board and the wrapping paper.

The greyboard layout defines the physical components of the box. It controls the strength, thickness, shape, and relationship between the lid and base. The wrapping-paper template defines how the printed or specialty paper covers those components, turns around the board edges, folds into the interior, and creates the finished corners. I distinguish these two layers of construction because the greyboard component is not normally the same surface that receives the final visible artwork.

A wrapping-paper template can include large exterior panels, extended turn-in margins, corner areas, interior returns, lid sections, base sections, and edge allowances. These areas allow the paper to wrap around the greyboard and create a finished rigid-box surface. I do not place essential text, exact borders, fine details, or critical logo elements too close to these wrapped edges without considering how the paper will turn and how the finished corner will appear.

The lid and base often require separate artwork planning. In a two-piece rigid box, the lid lifts off the base and may carry the primary exterior identity, while the base can remain simpler or include supporting branding. In a shoulder-and-neck box, the inner neck and outer lid create additional visible layers. In a drawer box, the sleeve and pull-out tray create different opening surfaces. In a book-style magnetic box, the cover, spine, flap, interior lid, and base can each have different visual and structural roles. I identify every component before placing the artwork hierarchy.

I do not use folding-carton assumptions for rigid boxes. A folding carton has crease lines and flaps that define its form, while a rigid box relies on board parts, wrapped corners, seams, and separate components. An artwork border that works on a folding carton may not work around the wrapped edge of a rigid-box lid. A logo that sits centrally on a flat paper template may shift visually once the wrapping paper turns around the board edges. I review the final assembled box rather than relying only on the open wrap layout.

Material choice matters strongly for rigid-box artwork. Coated paper, uncoated paper, textured paper, kraft paper, specialty paper, and fabric-like wraps can all behave differently around corners and edges. A very thin paper can reveal the underlying board texture. A thick or heavily textured paper can make sharp wrapping corners more difficult. A dark solid color, fine line, or precise pattern may require additional review around wrapped edges because small variations become more visible on premium packaging.

Rigid boxes often use foil stamping, embossing, debossing, specialty paper, ribbon pulls, magnets, or custom inserts. I place these features according to the final board and wrap relationship. A foil logo should sit on a stable visible surface. An embossed element should not be too close to an edge or wrapped corner. An interior print should be oriented according to how the lid is opened. The premium effect comes from the relationship between structure, wrapping, material, and finish, not from any single flat artwork layer.

Sleeve and Insert Dielines

I read sleeves and inserts as connected components within a wider packaging system. A sleeve may wrap around a carton, tray, rigid box, bottle pack, food container, product set, or gift package. An insert may hold the product in place, separate multiple components, support a fragile item, create an opening sequence, or improve presentation. Although they can appear simple in a flat dieline, their artwork and structure depend on how they fit with the product and outer package.

A sleeve normally includes a front panel, back panel, side panels, overlap or seam area, and one or two open ends. I identify which panels remain visible after the sleeve is placed around the inner package. A panel that appears large in the flat dieline can become hidden against the base, underneath the overlap, or inside the sleeve. I place key branding, product names, legal content, and visible imagery only on surfaces that remain accessible and clear after assembly.

The overlap area deserves particular attention. A sleeve may wrap around the inner box with an adhesive seam or a folded overlap. If important content is placed near this area, it can be covered, interrupted, or appear misaligned. I use the confirmed sleeve construction to identify where the visible seam will sit and place sensitive artwork away from it. This is especially important for patterns, borders, continuous typography, or artwork that is expected to align precisely around the package.

The sleeve opening direction affects how the packaging is experienced. A sleeve can slide from left to right, top to bottom, or over a tray. I consider where the customer begins the opening action and what they see as the sleeve moves. A logo may need to sit on the panel that faces outward before opening, while a message or graphic detail may be more effective on the panel revealed as the sleeve is removed. I assess the design as an interaction rather than only as a static print layout.

Paper inserts require a more functional review because their primary role is often product support. The dieline may include fold lines, retention tabs, product openings, dividers, locking points, support walls, and visible panels. I identify how the insert will fold, how the product enters the opening, how it remains supported, and how the insert fits within the outer packaging. A correct flat layout does not guarantee a correct product fit after folding.

An insert opening must be sized and positioned according to the actual product, including any relevant tolerance, weight, shape, protective requirement, and removal experience. If the opening is too loose, the product can move during shipping. If it is too tight, the product can be difficult to remove or can be damaged during insertion. If the opening is misaligned, the product may appear off-center through a window or sit incorrectly within the outer package. I review the insert, product, and outer structure together rather than treating them as separate decisions.

Visible insert surfaces can carry printed instructions, branding, product-support information, or a presentation message. I place this artwork based on the final assembled view. A printed flap may be hidden once the product is inserted. A logo may face the wrong direction if the insert is folded differently from the outer box. A divider may be visible only after one product component is removed. I confirm what the customer can actually see at each stage of opening and use before approving the artwork.

Sleeves and inserts show why a packaging dieline should be reviewed as part of a complete system. The sleeve must fit the outer pack with the intended tension and visibility. The insert must fit the product and support it in the correct position. The artwork must remain visible on the intended surfaces. I use the confirmed dielines for every connected component so that the outer package, sleeve, insert, product fit, and final unboxing presentation work together rather than creating separate problems at the production stage.

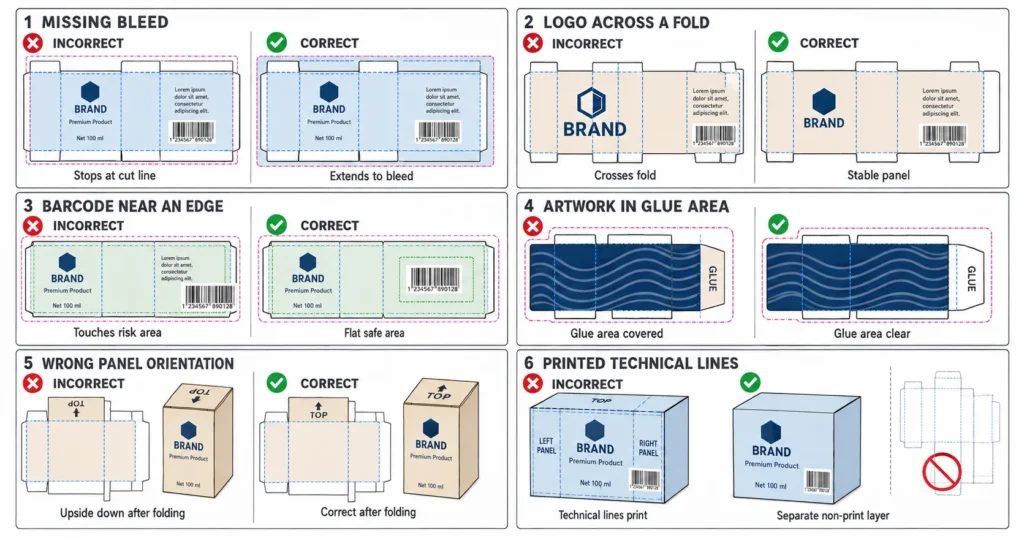

Common Packaging Dieline and Artwork Mistakes

I have found that most packaging problems do not begin when the package is printed. They begin when the dieline is treated as a visual layout instead of a structural production document. A flat artwork file can look polished, balanced, and complete on a computer screen while still containing risks that only become obvious after die-cutting, folding, gluing, finishing, filling, or scanning the finished package.

The most damaging mistakes are often small in the flat file. A background may stop a fraction too early. A logo may sit across a crease. A barcode may be placed near a fold because that corner looks visually empty. A special finish may be shown in the artwork but not separated as a production instruction. An outdated SKU file may appear nearly identical to the approved version while containing the wrong language, ingredient list, barcode, or product claim. I review these details carefully because they can affect visual quality, structural performance, market readiness, and repeat-order control.

I do not use a generic list of warnings when reviewing packaging artwork. I connect every mistake to the likely production result and then identify the correction before the file moves forward. This makes the review practical. The question is not only whether a file has a mistake; it is what that mistake could become in the finished package and how it can be prevented while the artwork is still easy to correct.

Mistake	Possible Production Result	Corrective Action
Background stops at the cut line	White or unprinted edges may appear after die-cutting	Extend the background into the required bleed
Logo crosses a fold	The logo may look divided, distorted, or poorly visible after assembly	Reposition it after reviewing the assembled package
Barcode is close to an edge	Scanning reliability may be reduced	Move it to a stable, flat, protected area
Artwork covers a glue area	Adhesion, seam appearance, or assembly may be affected	Follow the approved glue-area requirements
Dieline has been resized	The structural proportions and artwork alignment may no longer match	Return to the correct confirmed structural file
Technical lines remain printable	Cut, fold, dimension, or guide lines may appear on the package	Keep technical references on a separate non-printing layer
Panel orientation is incorrect	Text or graphics may appear upside down or face the wrong direction	Verify the artwork with a 3D view, folded mockup, or blank sample
Finishing areas are not separated	Foil, embossing, Spot UV, or white-ink instructions may become unclear	Create separate, named finishing layers
Linked images are missing	Artwork may appear incomplete, low quality, or use the wrong asset	Embed or supply all approved image assets
An outdated SKU file is reused	Incorrect product information may be printed	Apply revision, naming, and approval control

Background Stops at the Cut Line

I regard edge-to-edge artwork as a production issue before I regard it as a design choice. When a background color, photograph, texture, gradient, pattern, or illustration is intended to reach the outer edge of the finished package, it should not stop directly at the cut line. The cut line defines the intended final edge, but die-cutting involves normal production movement. If the background ends exactly at that boundary, the final cut can reveal a narrow white, unprinted, or substrate-colored edge.

This mistake can be difficult to notice in a digital review because the cut line and the visible edge appear to be in exactly the same place on screen. The problem becomes visible only when the printed sheet is die-cut. A thin unprinted edge may be especially noticeable on a package with a black, navy, dark green, deep red, or highly saturated background. It can also affect a package with a full-panel photograph, where a white edge breaks the continuity of the image and makes the finishing look less controlled.

I also consider the effect on premium packaging. A small edge defect may not change the product fit or structural performance, but it can change how customers perceive the package. On a beauty carton, jewelry box, perfume carton, gift sleeve, or premium rigid-box wrap, a visible edge can make the packaging feel less refined than the approved artwork. The issue is often not dramatic in isolation, but it creates a gap between the intended brand presentation and the physical result.

I correct this by extending all artwork that must reach the edge into the approved bleed area. I allow solid colors, photographs, patterns, gradients, textures, and full-panel illustrations to continue beyond the final cut boundary. At the same time, I keep critical content such as logos, product names, ingredients, warnings, barcodes, QR codes, and fine borders inside the safe area. Bleed protects the background from trim variation; the safe area protects important content from the same production risk.

Logo, Product Name, or Key Image Crosses a Fold

I avoid placing the most important visual elements directly across a fold because a crease is not an invisible line after assembly. It becomes a physical edge where the material changes direction. A logo, product name, face, product image, fine border, or central illustration may look perfectly aligned in the flat file but become visually divided once the carton is folded.

A logo across the front and side panels can lose its impact because a person looking at the front of the package sees only part of it. A product name placed across a top crease can become difficult to read when the box is closed. A face or product image crossing a fold can look distorted because the image is no longer presented on one flat surface. Even where print registration is accurate, the physical fold creates a break in the visual plane.

This risk becomes greater when the design uses fine typography, narrow lines, geometric patterns, symmetrical illustrations, or exact borders. A small shift created by material thickness, folding behavior, or normal production variation can make a continuous feature appear slightly uneven. A broad abstract pattern can often tolerate this effect, but a precise line or centered identity element may not.

I correct the issue by reviewing the artwork according to the assembled package rather than the flat dieline alone. I use a 3D structural view, folded mockup, or blank sample to see where the crease becomes visible in real use. I normally keep the main logo, product name, and essential product image on one stable customer-facing panel. When artwork intentionally crosses panels, I use it for visual elements that can tolerate an interruption or that are designed around the physical fold.

Barcode or QR Code Is Too Close to an Edge, Fold, or Seam

I treat barcodes and QR codes as functional production elements. Their purpose is not simply to fill a spare space in the artwork. A barcode may be required for retail systems, warehouse scanning, inventory management, logistics, fulfillment, or point-of-sale operations. A QR code may support product information, instructions, authentication, registration, campaign content, or customer service. If the code does not scan on the finished package, its visual presence in the artwork file has no practical value.

A code placed too close to a cut edge can lose part of its required clear area or look visually crowded after die-cutting. A code placed across a crease can become distorted when the material folds. A code placed near a manufacturer’s joint, glue seam, perforation, window, or handle opening can be interrupted, obscured, or positioned on an uneven surface. A code placed on a busy image, low-contrast color field, metallic foil, or high-gloss reflective finish can also become difficult for a scanner to interpret.

I pay attention to the panel selected for the code. A flat back panel may be suitable, while a narrow side panel, bottom closure, fold-over flap, gusset, or internal panel may not be. I also consider how the package will be handled. A code that sits in a high-friction area may become scuffed during shipping, stacking, or retail handling. A code placed under a sleeve overlap or shipping label area may be inaccessible when it is needed.

I correct this by moving the barcode or QR code to a stable, sufficiently flat, protected panel with clear surrounding space and suitable contrast. I keep it away from structural transitions and visually noisy artwork. I also review the final printed sample whenever possible because a code can look correct in a PDF but perform differently after printing, coating, folding, and handling. The correct approval question is not whether I can see the code on screen; it is whether the final physical package can be scanned reliably.

Artwork Extends into a Glue Area or Seam

I treat glue areas as functional structural zones rather than normal artwork panels. In a folding carton, the glue flap creates the seam that connects the carton body. In a corrugated box, a manufacturer’s joint may form a broader connection area. Both can affect what remains visible after assembly and how the package holds together.

A glue flap can look like an available strip of space in the flat dieline, but it may become hidden inside the box or partially covered when the seam is formed. If I place a logo, product name, barcode, legal text, fine border, or detailed image across this area, the content may disappear, break, or misalign. A continuous pattern may also show an unwanted interruption where the panels meet.

I also consider the effect of printed coverage and finishing on adhesion. Heavy ink coverage, lamination, certain varnishes, foil stamping, or other surface treatments may require special review in areas that need adhesive. I do not assume that every finish can be used over every glue zone without affecting the production approach. The approved structural and production requirements should determine how the glue area is treated.

I correct this by keeping critical content on stable visible panels and following the specified glue-area requirements. Where a design must extend close to a seam, I make sure that the seam falls in a visually less sensitive part of the artwork. I review the assembled package to check whether the final joint interrupts the design or creates a visible imbalance. The goal is not to avoid every seam; it is to make sure that the structure and artwork work together deliberately.

The Dieline Is Resized, Stretched, or Rebuilt from an Old File

I do not treat a confirmed packaging dieline as a scalable graphic template. A dieline may appear to be a group of simple shapes, but those shapes define a connected structure. The width of the front panel relates to the depth of the side panel. The flaps relate to the opening and closing system. The glue tab relates to the assembly method. The window relates to the product position. The insert relates to the internal fit. Resizing or stretching the dieline can change these relationships.

Stretching is particularly risky because it can alter one direction more than the other. A box may become wider without the flap lengths, glue tab, window, insert opening, or other structural areas being redesigned appropriately. The flat artwork can look acceptable, but the physical packaging may not fold, close, glue, wrap, or fit the product as intended. Even where the structural change is small, the artwork can shift closer to folds, seams, cut lines, or glue areas.

I also avoid recreating a dieline from a previous project unless the new structure has been confirmed to use the same dimensions, material, board thickness, closure style, production method, and product fit. Two cartons may look similar after assembly but have different flat layouts because of a different tuck direction, flap arrangement, insert, window, or board thickness. Reusing an old dieline without structural validation can create an artwork file that is visually familiar but technically incorrect.

I correct this by returning to the approved structural file for the exact product and packaging size. If the size or structure changes, I use a revised confirmed dieline and reposition the artwork accordingly. I can preserve the brand system, visual style, color direction, typography, and imagery, but I do not force those elements onto a structure that has changed. The dieline must remain the reference point for the artwork, not the other way around.

Technical Dieline Lines Remain in Printable Artwork

I keep technical information separate from printable artwork because structural lines are not intended to become visible design elements on the finished package. A dieline may contain cut lines, crease lines, perforation marks, glue notes, dimensions, panel labels, window outlines, and other production references. These are essential during artwork placement and file review, but they should remain controlled as technical information.

A common error occurs when the dieline is flattened into the design layers, copied into the artwork, or exported without checking which layers are active. A cut line may print as a colored stroke around the package. A fold guide may appear through an image or background. A dimension note, panel label, or production comment may remain visible in the final PDF. This can create an obvious packaging defect and may require the file to be corrected or the printed package to be replaced.

The risk increases when several versions of the file are shared between designers, marketers, product teams, and production reviewers. One person may use the technical file for alignment, while another may export the artwork without understanding which layers are intended to print. Clear file organization reduces this risk because it makes the distinction between structural information and visible artwork immediately understandable.

I correct this by keeping the dieline in a separate, clearly named, non-printing technical layer and locking it during design. I place the logo, images, backgrounds, text, and finishing references on their own printable layers. Before final release, I review the output view to confirm that only intended production elements remain visible. The dieline stays available for accurate alignment, but it does not become part of the printed design.

Panel Orientation Is Wrong After Assembly

I consider panel orientation one of the easiest mistakes to miss in a flat dieline. A packaging file shows every panel open on one plane, but the finished package rotates those panels into different physical directions. A top panel, bottom panel, inside lid, sleeve panel, bag gusset, insert flap, or rigid-box wrap can need a different orientation in the flat file from the front-facing artwork.

A top-panel logo may look upside down beside the front panel in the open dieline but become correct once the carton is folded and closed. An interior mailer-box message may look rotated in the flat file but read correctly when the recipient opens the lid. The mistake occurs when I approve orientation according to the artboard rather than according to how a person sees and uses the finished package.

I also check the opening direction. A message inside a lid should read correctly when the lid is open, not when the box is flattened. A product name on a sleeve should face the intended viewing side before the sleeve is removed. A printed insert should read correctly when the product is taken out. The visual direction must follow the packaging interaction, not only the geometry of the open file.

I correct orientation errors by using an assembled reference. A 3D view can help me understand basic panel rotation, but I use a folded mockup or blank structural sample for complex structures, interior printing, multi-panel illustrations, and unusual opening sequences. I turn the assembled package in the way a customer would, confirm the front, top, sides, interior, and opening direction, then check that every important text and graphic element faces the correct way.

Foil, Embossing, Spot UV, White Ink, and Other Finishes Are Not Separated

I do not rely on visual appearance alone to communicate special finishes. A gold-colored logo in the artwork does not automatically mean that it should receive gold foil. A glossy effect shown in a mockup does not automatically define a Spot UV area. A raised logo cannot be identified reliably unless embossing is separated as a specific production instruction. Every special finish needs its own controlled reference.

When finishing areas are not separated, the file can become ambiguous. A reviewer may not know whether foil applies to the logo, the border, the product name, or all gold-colored elements. A Spot UV effect may be applied to the wrong portion of an image. White ink may be omitted beneath color artwork on a transparent or metallic material, changing the final color appearance. A window or perforation can be confused with a printed outline if it is not clearly identified.

I also consider how finishes interact with the structure. A foil detail placed too close to a fold can lose visual precision after the board is creased. An embossed mark near a wrapped rigid-box edge may not perform as intended. A Spot UV area can become less noticeable if it sits under a seam, sleeve overlap, or other component. A finishing layer needs to be reviewed in the assembled package, not only as a flat shape.

I correct this by creating separate, clearly named layers or references for every special production element. I define the exact foil area, embossing area, debossing area, Spot UV area, varnish area, white-ink layer, window cutout, and perforation line. I keep them aligned to the approved dieline and make sure they remain distinguishable from standard printed artwork. This gives production a clear instruction and gives the final review a meaningful way to confirm what will happen on the physical package.

Linked Images Are Missing, Replaced, or Used at the Wrong Quality

I check image assets carefully because linked images can create invisible file risks. A linked image may appear correctly on one computer because the source file exists in a local folder, but it can become missing or low quality when the artwork is opened elsewhere. If the image path is broken, the file may display an incomplete preview, a missing-image warning, or an unintended substitute.

A linked image can also be replaced without the artwork layout changing visibly at first. A person may update a source photograph, rename an image, use a low-resolution preview, or place an older product version in the image folder. This becomes especially risky when a packaging program includes many related SKUs, products, flavors, colors, or seasonal editions. A file may have the correct dieline and text but still contain the wrong visual asset.

I review effective image quality at the final printed size. A photograph can look sharp when it is displayed small on screen yet become soft or pixelated when enlarged across a carton or mailer panel. I also inspect the image crop in relation to folds and panels. A product image may lose its focal point, label, face, or important detail if it crosses into a side panel, fold, seam, window, or glue area.

I correct image problems by checking all linked assets before the final file is released, embedding them where appropriate, or supplying them in a complete controlled asset package. I confirm that every image is the approved version, positioned at the intended printed size, and cropped according to the assembled package. The file should not depend on unknown links, personal folders, or unverified previews.

An Outdated SKU, Market Version, or Approval File Is Reused

I consider outdated-file reuse one of the most serious packaging mistakes because it can create a correct-looking package with incorrect product information. A previous version can contain an old barcode, obsolete ingredient list, outdated warning, former product claim, discontinued language version, old address, wrong shade, incorrect flavor, or previous legal content. The visual design may look almost identical to the current version, making the error difficult to identify without disciplined review.

This risk becomes larger when a brand manages multiple SKUs, market variations, product formulas, packaging sizes, seasonal updates, or repeat orders. A master design may be shared across the range, but each SKU can have variable content. The logo, color system, photography, and structural template may remain the same while the product name, ingredients, language, barcode, batch information, or regulatory statement changes. Similar appearance does not mean identical approval status.

I do not rely on a filename such as “final,” “new final,” or “latest version.” These labels become unreliable once several revisions exist. I use a clear naming system that identifies the product or SKU, packaging format, size or structure where relevant, market or language version, revision number, and approval status. I also keep the approval record connected to the correct file rather than relying only on email history or verbal confirmation.

I correct this risk through version control before the production file is released. I compare the final artwork against the approved content source, confirm that the correct dieline revision is used, verify the barcode and market-specific content, and make sure the approval status is clear. The objective is to create a traceable connection between the product, the structure, the artwork, and the approved production version.

Recommended Correct vs Incorrect Visuals

I recommend using original “Correct vs Incorrect” visuals because they can make the most important dieline mistakes immediately understandable. The visuals should use one consistent, technically accurate folding-carton example so that the reader can focus on the change in artwork placement rather than trying to understand a new structure in every image. Each visual should show the flat dieline alongside a small assembled-package view, because the production result is the reason the correction matters.

The first visual should compare a background that stops exactly at the cut line with a background that extends into bleed. The incorrect version should show how a narrow unprinted edge can appear after cutting. The correct version should show the full background continuing cleanly to the finished edge. This visual should make clear that bleed protects visual coverage, while the safe zone protects important content.

The second visual should compare a logo crossing a crease with a logo positioned fully on one stable front panel. The flat-dieline view should show the logo’s location, while the assembled-box view should show how the incorrect logo becomes divided by the fold. The corrected version should demonstrate how the logo remains visible and balanced after assembly.

The third visual should compare a barcode near a cut edge or fold with a barcode placed on a protected flat panel. The incorrect side should show the code crowded by the structural boundary, while the corrected side should show clear surrounding space and separation from the fold. This visual should reinforce that a barcode must be designed for physical scanning, not merely visual inclusion.

The fourth visual should compare artwork and foil extending into a glue area with a corrected design that respects the seam. The assembled-box view should show how a glue seam can interrupt critical artwork or affect the intended finish. The corrected example should place the important content on the visible panel and keep the production-sensitive glue area clearly controlled.

The fifth visual should compare an incorrectly oriented top-panel message with a correctly oriented version. The flat file may make the correct version appear rotated, but the assembled package should show why that rotation is necessary. This visual is useful because it teaches the reader to judge artwork orientation from the finished package rather than from the open artboard.

The sixth visual should compare technical dieline lines merged into printable artwork with technical lines separated onto a non-printing layer. The incorrect package should show visible cut or fold guides, while the corrected package should show only the intended design. This visual demonstrates the value of layer organization in a way that a file-format explanation alone cannot.

I use this mistake-review process to make packaging approval more realistic. The most reliable packaging artwork is not the file that looks best when opened flat on a screen. It is the file that remains clear, aligned, scannable, structurally compatible, and visually intentional after printing, die-cutting, folding, gluing, finishing, and final assembly.

How to Review a Dieline Before Print Production

I review a packaging dieline before print production by comparing the digital file with the physical package it is intended to create. A dieline can define panels, cuts, folds, glue areas, windows, and artwork placement, but it cannot independently confirm every aspect of the final package. An electronic proof can show the digital content and layout, a blank sample can show structure and product fit, and a printed sample can show how the artwork, color, and finishing behave on the finished package.

I do not treat these review stages as interchangeable. Each one answers a different question. The electronic proof helps me confirm that the correct text, artwork, colors, barcode, structure name, and revision are shown in the file. The blank structural sample helps me confirm that the package has the correct size, product fit, opening direction, folding sequence, and assembly logic. The printed sample helps me evaluate the actual visual and functional result after the selected material, print process, finishing, and structure have come together.

The most reliable approval decision comes from reviewing these references together. A package may be visually correct in an electronic proof but fail to fit the product. A blank sample may fit perfectly but reveal no information about final color, foil placement, or small-text readability. A printed sample may look attractive but still reflect an earlier dieline or outdated artwork version if the files are not controlled carefully. I compare the approved dieline, electronic proof, and physical sample as one connected production record before the package moves to full printing.

Review the Electronic Proof

I use the electronic proof to review the digital content, layout, and production references before physical production begins. An electronic proof is often the clearest way to check whether the artwork has been placed on the correct dieline version and whether the visual and informational content is complete. I begin by confirming the final dimensions and structure name because an otherwise correct design can still be approved against the wrong carton size, mailer format, sleeve, bag, insert, or rigid-box component.

The structure name should match the actual approved packaging format. I do not assume that two visually similar cartons use the same structural file. A straight tuck-end carton, reverse tuck-end carton, auto-bottom carton, corrugated mailer, corrugated shipping box, paper bag, sleeve, or rigid-box wrapping template may have different panel relationships and production requirements. I check that the proof identifies the correct structure and that the artwork is positioned on the confirmed dieline for that exact format.

I then confirm whether the proof shows exterior printing, interior printing, or both. This is important because a package can have different artwork directions on its outside and inside surfaces. A mailer-box lid may have exterior branding on one side and an interior message on the reverse side. A folding carton may have a printed interior panel. A rigid box may include artwork on the outside wrap, inside lid, base, or insert. I check that every intended surface is present and that no panel has been omitted, duplicated, or placed on the wrong side.

Panel orientation is one of the first visual details I review. The flat dieline can make top, bottom, side, and interior panels look rotated relative to the front panel. I do not approve orientation simply because the text appears upright on the artboard. I check whether the logo, product name, ingredients, opening message, barcode, QR code, and directional graphics will read correctly once the package is folded and assembled.

I review all text carefully, including product names, product descriptions, ingredients, instructions, warnings, claims, contact information, country-of-origin content, recycling information, language versions, and legal statements. Small errors in spelling, punctuation, dosage information, product variants, ingredients, or market-specific wording can be difficult and costly to correct after printing. I also check whether the text belongs to the correct SKU and whether the final wording remains readable within the available panel space.

Ingredients and legal information need more than a spelling check. I confirm that they are located on a stable panel, not broken across folds, not placed too close to cut edges, and not hidden by seams, inserts, or closing flaps. If the packaging is sold in several markets, I compare the proof against the correct language and regulatory version. A design can be visually identical across several SKUs while containing important differences in product information, warnings, claims, or required labels.

Barcodes and QR codes receive a functional review. I check that the correct code is present, that it is associated with the intended SKU, and that it has been placed on a flat, accessible panel with clear surrounding space. I make sure the code is not positioned too close to a fold, cut line, seam, glue area, window, handle opening, or visually complex background. The electronic proof can confirm placement and content, but it cannot fully confirm final scanning performance after printing and assembly.

Color references should also be clear in the proof. I review whether the file identifies the intended CMYK process colors, spot colors, Pantone references, white ink, metallic treatments, or other color instructions. I do not approve final physical color based only on the appearance of a monitor or PDF preview. The electronic proof confirms the digital color setup and intended references, but the final material, ink behavior, coating, and lighting condition still influence the physical printed result.

I check all special-finishing locations in the proof. Foil stamping, embossing, debossing, Spot UV, varnish, white ink, window cutting, and perforation should be clearly identified and aligned to the approved dieline. I make sure a foil logo sits on the intended panel, that a Spot UV area follows the correct graphic, that a window frames the right product area, and that a perforation does not divide important text or functional content.

Finally, I confirm the SKU name, revision number, approval date, and responsible reviewer. These details create a traceable link between the approved artwork and the intended production file. I do not treat a proof as final merely because it looks complete. I need to know which version was reviewed, who approved it, and whether the structure, content, and artwork match the current product specification.

An electronic proof is essential, but I do not treat it as a substitute for physical verification. It can confirm digital content, positioning, panel relationships, color references, and production notes. It cannot fully demonstrate the real texture of the material, board stiffness, crease behavior, folding performance, actual printed color, foil appearance, embossing depth, or final product fit. I use the proof to control the file, then use samples to confirm the physical package.

Review the Blank Structural Sample

I use a blank structural sample to confirm that the packaging works as a physical object before judging its printed appearance. A blank sample may have no final graphics, colors, or finishes, but it provides information that a digital proof cannot show. It allows me to hold the package, measure it, fold it, open it, close it, place the product inside, and understand how the panels, flaps, windows, inserts, and closures behave in real use.

The first thing I confirm is the finished dimensions. I check the assembled length, width, height, depth, and relevant internal space rather than relying only on the flat dieline measurements. The outer dimensions may appear correct while the usable internal space is affected by material thickness, folded flaps, inserts, trays, product supports, or the shape of the product itself. I verify that the sample reflects the intended package size and that the final structure is suitable for the product.

Product fit is one of the most important parts of blank-sample review. I place the actual product, or a reliable product representation, inside the package and assess whether it fits securely without unnecessary pressure or excess movement. A package that is too tight can create a difficult opening experience, damage the product, or make insertion inefficient. A package that is too loose can allow movement during shipping and may reduce the perceived quality of the product presentation.

Insert fit must be reviewed together with product fit. An insert may look correct as a flat dieline but behave differently once it is folded and placed inside the outer box. I check whether it supports the product in the intended position, whether openings align correctly, whether dividers separate components, whether the product can be removed reasonably, and whether the insert affects the visible interior or window area. If the package includes a window, I confirm that the product appears in the intended location behind it.

I also review the folding sequence and opening direction. A folding carton may close from the top or bottom, a mailer box may use locking tabs and an opening lid, a sleeve may slide from one direction, and a rigid box may lift from a base or open like a book. I check whether the structure opens naturally, whether the flaps align, whether the closing method feels secure, and whether the intended customer interaction matches the packaging concept.

Panel visibility becomes clearer in the blank sample. A side panel that appears large in the flat file may be less visible once the box is standing. A dust flap may cover an interior message. A glue seam may appear on a side where a continuous graphic was planned. An interior-lid panel may be partly obscured by the product or insert. I use the blank sample to identify these physical realities before final artwork is locked.

The window position also needs physical review. A window may look centered in the dieline but reveal the wrong part of the product if the insert, product fit, or assembly is not correct. I check the window from the outside of the assembled package and confirm that it frames the intended product area. I also look for unwanted gaps, visible support edges, off-center placement, or areas where the product may shift during handling.

The final purpose of the blank sample is structural confirmation. It tells me whether the dimensions, folding, closure, product fit, insert fit, window position, and overall assembly work before printing adds another layer of cost and complexity. If the structure needs to change at this stage, I update the dieline and artwork together. I do not allow a structural correction to exist only as a message or verbal instruction while the artwork file remains based on the previous version.

Review the Printed Sample

I use the printed sample to confirm how the approved artwork appears on the real packaging material after printing, die-cutting, folding, gluing, and finishing. This is the stage where the digital file becomes a physical package with actual ink, paperboard, corrugated board, wrapping paper, coating, folds, seams, and tactile details. A printed sample cannot replace the electronic proof or blank sample, but it reveals issues that neither of those references can fully show.

I begin by checking the position of the artwork on the assembled package. The logo, product name, product image, supporting graphics, ingredients, warnings, barcode, QR code, and brand details should appear on the intended panels and remain clear after folding. I compare the physical package with the approved proof and confirm that the artwork has not shifted too close to a cut edge, crease, seam, window, handle position, or glue area.

Panel orientation is reviewed again at this stage because the printed sample shows the actual final reading direction. I check the front, back, side panels, top, bottom, interior surfaces, and opening panels. A top-panel message may have been rotated correctly in the file but still require review once the carton is closed. An interior-lid message may look correct in the proof but feel mispositioned when the mailer box is opened. I hold, turn, open, and close the package in the way a customer would.

Printed color should be reviewed on the selected material, not judged only against the screen. I compare the final result with the intended color references and assess the overall visual relationship between the background, logo, images, text, and finishes. I consider how the color appears on the real paperboard or packaging material, under relevant viewing conditions, and next to the other elements of the design. A color can be digitally correct in the proof while appearing different because of material tone, coating, ink behavior, or surface texture.

Small-text readability is particularly important in the printed sample. I check ingredient lists, instructions, warnings, regulatory text, product claims, contact information, barcode numbers, recycling details, and multilingual content at the real physical size. I do not approve small text because it is visible when enlarged in a PDF. I check whether it can be read on the actual package, on the selected material, with the final ink coverage, background contrast, coating, and panel shape.

I test barcodes and QR codes from the printed sample. I confirm that the code scans reliably, that it remains clear after folding, and that the surrounding artwork does not interfere with it. A code can look clean in an electronic proof yet fail after printing if the contrast is insufficient, the material texture affects the result, the panel bends, or the code sits too close to a structural feature. Physical testing gives a more meaningful confirmation than digital appearance alone.

Finishing alignment should also be reviewed in the printed sample. I check whether foil stamping, embossing, debossing, Spot UV, varnish, white ink, window cutting, and perforation appear in the intended locations. A foil logo should align with the printed artwork. An embossed mark should sit on the correct panel and remain visually strong. Spot UV should follow the intended image or graphic area. A window should reveal the correct product position, and a perforation should not interrupt essential content unexpectedly.

Cross-panel graphics require an assembled review because their final effect depends on folds and seams. A pattern, border, illustration, product image, or large typography may look continuous in the flat proof but become visually divided at a crease. I check whether the interruption is acceptable, whether the design still feels intentional, and whether the important visual elements remain on stable panels.

I also inspect window and handle positions on the printed package. The window should frame the product or insert correctly and should not interfere with surrounding text or graphics. A handle opening or attachment point should not disrupt the logo, visual hierarchy, or structural balance. These features need to be evaluated on the assembled package because their real effect cannot be fully understood from a flat dieline or screen proof.

The overall appearance after assembly is the final printed-sample judgment. I assess whether the package feels balanced, clear, functional, and aligned with the intended product positioning. I look at the package from the front, sides, top, bottom, interior, and opening position. I check how the artwork relates to the material, how the structure holds its shape, and whether the print, folds, seams, and finishes work together as one complete result.

Compare the Dieline, Electronic Proof, and Samples Together

I compare the final dieline, electronic proof, blank sample, and printed sample together because each reference confirms a different part of the package. The dieline establishes the structural map and the intended artwork placement. The electronic proof confirms the digital content, file version, panel layout, color references, and finishing instructions. The blank sample confirms size, fit, folding, opening, and assembly. The printed sample confirms the final relationship between the artwork, material, production process, and assembled package.

If I review only one of these references, I can miss important information. A digital proof may show a correct ingredient list but cannot confirm that the text remains readable on the final material. A blank sample may show good product fit but cannot confirm color, barcode performance, or foil alignment. A printed sample may look correct but still be based on an earlier structural version if the dieline and revision information are not checked together.

I use the confirmed dieline as the structural anchor. I compare the proof against it to make sure that the artwork remains on the correct panels and does not ignore cut lines, folds, glue areas, windows, or other production zones. I then compare the blank and printed samples against the same structural reference to verify that the physical package matches the approved layout.

When the sample reveals a structural change, I update the dieline and artwork together. A change to the box depth, flap design, insert, window position, material thickness, handle location, closing method, or product fit can affect the artwork placement. I do not allow that correction to exist only in an email, chat message, annotation, or verbal instruction. The official structural file and artwork file must be revised so that the approved production reference reflects the actual package.

I also record the final approved revision clearly. The product or SKU, packaging structure, artwork version, sample status, approval date, and responsible reviewer should be traceable. This creates a reliable benchmark for repeat production, future SKU updates, and later troubleshooting. It helps prevent a correct sample from being followed by an incorrect production file or an outdated artwork version.

I consider this combined review process essential because packaging is not confirmed by digital appearance alone. The final package must work as a structure, a printed object, a customer-facing presentation, and a controlled production file. By reviewing the dieline, proof, blank sample, and printed sample as one connected set of evidence, I can approve packaging with a clearer understanding of what will be produced and what the customer will actually receive.

Managing Dielines for Multiple SKUs and Repeat Orders

I manage packaging dielines for multiple SKUs and repeat orders as a controlled system of structure, artwork, content, and approval history. Once a packaging program includes several product variants, sizes, markets, languages, or repeat productions, the challenge is no longer only creating an attractive box design. The challenge becomes making sure that every product uses the correct dieline, correct artwork version, correct barcode, correct product information, correct finish, and correct production approval.

A packaging range can look highly consistent while containing important differences. A skincare collection may use the same logo, color system, carton format, and front-panel layout, but each product can have different ingredients, instructions, claims, barcodes, sizes, language requirements, and product names. A gift-box program may use the same rigid-box structure but require different inserts, sleeve artwork, seasonal finishes, or product-set information. An importer may use one shipping-box style across several markets while changing handling marks, SKU codes, and legal requirements. I do not treat these variations as minor edits because each one can affect the accuracy of the production file.

I create consistency through a master structure and master visual system, but I preserve control through individual SKU versions. The master file provides a stable foundation where the structure and shared brand elements are truly identical. Each SKU file then carries the specific information that belongs only to that product, market, or production version. This balance prevents the packaging range from becoming visually inconsistent while also preventing shared templates from spreading outdated or incorrect content across multiple products.

Repeat orders require the same discipline. I do not assume that a previous file is automatically safe to print again simply because the product name and appearance have not changed. A repeat order can involve a new barcode, updated formula, revised claim, new market, different material, changed insert, adjusted box size, revised color reference, or updated finishing detail. I review the existing production file against the current requirements before I regard it as an approved repeat-production reference.

Use a Master Structural File

I use a master structural file when multiple SKUs share the same actual packaging construction. This means more than using the same general box style. The products should use the same finished dimensions, panel proportions, material type, board thickness, fold sequence, closure design, glue areas, insert arrangement, window position, and production method. If those structural conditions are identical, a master dieline can provide a reliable foundation for several related artwork versions.

For example, several products may use the same folding-carton structure because they have similar dimensions and fit requirements. The front, back, sides, top, bottom, dust flaps, glue flap, bleed, safe zones, and barcode area can remain consistent. In that situation, I can use the master dieline to maintain a stable logo position, shared layout rules, common product-information zones, and consistent brand color placement across the range.

A master structural file is valuable because it reduces unnecessary redesign. I do not need to rebuild the technical structure for every SKU when the physical package is genuinely the same. It also helps create a more recognizable family of products. The logo can remain in a stable position, the main product-name area can remain consistent, common icons can follow the same hierarchy, and the ingredient or barcode panels can retain a familiar organizational logic.

However, I do not use a master structure merely because products appear similar from the outside. Small differences can require separate dielines. A product may be taller, wider, heavier, more fragile, or shaped differently. A bottle with a pump may need additional height clearance compared with a bottle using a standard cap. A product set may require a divider or insert that changes the internal dimensions. A package with a window may need a different product position or framing area. A carton made from a different board thickness may fold and fit differently from the original version.

I also review whether the master structure remains valid when the packaging material changes. A dieline approved for one folding-carton board may not behave identically with another thickness or stiffness. A corrugated mailer can change its folding and panel behavior when the board specification changes. A rigid box can require different wrapping allowances if the paper, board thickness, or finish changes. I do not assume that the outer dimensions alone make the old master dieline suitable.

A master structural file should have its own clear identity. I name it according to the packaging format, structure, finished dimensions, relevant material direction, and approved revision. I treat it as a controlled structural reference rather than a general template that can be edited freely. If a new SKU uses the master, I confirm that it truly matches the approved conditions. If it does not, I create or use a separate dieline so the artwork remains connected to the correct physical package.

I also keep the master structure separate from the individual SKU artwork. The structural master should preserve the technical cut lines, fold lines, glue areas, windows, panel labels, bleed, safe zones, and relevant production notes. The individual SKU artwork can then be placed on a controlled copy of that approved structure. This approach allows me to keep the structural reference stable while managing product-specific changes without accidentally changing the master dieline.

Separate Shared Artwork from Variable Artwork

I separate shared artwork from variable artwork because a packaging range needs both consistency and precision. Shared artwork represents the visual and informational elements that should remain stable across related products. Variable artwork represents the information that must change for the individual SKU, market, language, product formula, or production version. If these two groups are not clearly separated, a correct brand system can become mixed with incorrect product content.

Shared artwork often includes the logo, brand typography, approved color standards, recurring icons, graphic patterns, product-family design language, preferred logo placement, common finishing zones, and standard visual hierarchy. It may also include common recycling marks, company contact information, standard quality statements, or other regulatory elements that apply consistently to the relevant product group and market. I keep these shared elements controlled because they help the full packaging range look unified and recognizable.

Brand identity should remain stable where it needs to remain stable. I make sure the logo is not resized, recolored, moved, or distorted differently across SKUs without a deliberate reason. I keep the approved brand colors consistent by using the intended CMYK or spot-color references. I maintain consistent typography, graphic spacing, image treatment, and visual hierarchy so that a customer can recognize the relationship between products even when the product names, flavors, shades, or uses change.

Variable artwork includes the details that belong to the individual product. This can include the product name, variant name, flavor, shade, fragrance, size, weight, ingredients, usage instructions, warnings, barcode, QR code, batch area, product claims, country-specific content, language version, and SKU-specific image. I treat these as controlled production content rather than as simple pieces of text that can be replaced casually.

Ingredients require special attention because products that look visually related may have different formulas. A cosmetic range may share the same carton structure and exterior design, while every product has a different ingredient list and usage instruction. A food packaging range may have different allergens, nutritional information, flavors, or storage requirements. A technical product may have different specifications, warnings, or certification statements. I keep these elements clearly connected to the correct SKU and do not allow them to be copied from an earlier file without verification.

Product claims also need separate control. A claim that is valid for one SKU may not apply to another product in the same range. A claim may also differ by market or require different supporting wording. I review product claims together with the relevant product and market information before they become part of the approved packaging artwork. A visually consistent range should never create the impression that all products carry the same claim if that is not correct.

Language versions need their own review because translation affects more than the words themselves. A translated product description may take more space, use a different reading rhythm, or require a different layout to remain clear. A language with longer words can affect the line breaks and panel balance. A language with different character forms may need a typeface that supports it correctly. I do not simply shrink text until it fits; I adjust the layout so that important content remains readable and structurally protected.

Barcodes and QR codes should always be treated as SKU-specific operational information. The barcode belongs to the exact product and selling unit, not merely to the packaging design. A new size, product count, market version, variant, or bundle may require a different code. I verify the code against the correct SKU before the artwork is approved and make sure it is placed in the correct stable location on the relevant dieline.

I organize shared and variable artwork so that changes can be made without creating hidden errors. The shared logo, color system, and standard graphic elements can remain in controlled layers or master components. The SKU-specific product name, ingredients, barcode, claims, language, and other variable content should be clearly identified in the individual artwork version. This makes it easier to update one SKU without accidentally changing the entire product range or allowing an old variable element to remain in a new file.

Apply Clear File Naming and Revision Control

I use file naming and revision control to make the packaging program understandable even after months, several production runs, multiple contributors, and numerous product updates. Without a clear system, teams often accumulate files named “final,” “final revised,” “final latest,” or “new final.” These names may feel convenient at the moment, but they become unreliable when several versions exist and no one can immediately identify which file is approved for actual production.

The master structural file should have a name that clearly identifies the packaging format and its controlled structural version. I include enough information to distinguish one structure from another, such as the packaging type, relevant dimensions, structure name, and revision. The name should make it clear whether the file is a folding-carton master, corrugated mailer master, paper-bag structure, rigid-box wrapping template, sleeve, or insert.

The individual SKU file should identify the specific product and the artwork version built on the master structure. I include the SKU or product name, packaging format or structure reference where useful, market or language version, revision number, and approval status. The purpose is to make the file understandable without relying on the memory of the person who created it. A production reviewer should be able to distinguish a French market version from a United States version, a 30 ml product from a 50 ml product, or an approved version from a file still under review.

A revision number provides the change history. I create a new revision when any approved element changes, including product content, ingredients, legal information, barcode, language, material, color reference, finish, structure, insert, or window position. I do not overwrite the previous approved version without a trace. An older file may still be needed to compare changes, manage existing inventory, support a previous market release, or understand what was used in an earlier production run.

The revision date gives additional context, but I do not use a date alone as the control system. Two files can be created on the same day, and a date does not explain what changed. I use the date together with the product identifier, structure reference, revision number, approval status, and, where relevant, a concise change description in the internal record. This makes it easier to verify whether the latest file includes the intended update.

Approval status should make the file’s role clear. I distinguish between working artwork, artwork under internal review, artwork sent for proofing, artwork approved for sampling, artwork approved after sample review, and artwork approved for production. I do not call every complete-looking file “final.” A file can look visually complete while still waiting for barcode confirmation, legal review, sample approval, or structural confirmation.

I record the approved reviewer because packaging approval usually involves different responsibilities. A product manager may confirm product name and SKU details. A regulatory reviewer may confirm ingredients and warnings. A brand team may approve visual identity. A packaging reviewer may confirm structure and sample results. I keep the relevant approval responsibility connected to the correct file version so that the final production reference has a clear decision history.

Archived versions should remain available but clearly separated from active production files. I do not delete earlier artwork simply because a newer version has been approved. Earlier versions can be useful for previous inventory, historical comparison, audit needs, or market-specific records. However, I clearly mark them as archived, obsolete, superseded, or not for current production. The goal is to retain the record without allowing an outdated file to be selected accidentally.

Review Changes Before Repeat Production

I review previous packaging artwork before every repeat production because a repeat order is not always an identical production order. The product may have changed, the market may have changed, the packaging material may have changed, or the production specification may have changed. Repeating a file without checking these conditions can result in a familiar-looking package that contains inaccurate or outdated information.

I start by checking product information. The product name, size, formula, ingredients, product description, product claim, usage instruction, warning, net quantity, product code, or internal reference may have changed since the previous run. Even a small text change can affect the packaging file, especially when the content is placed on a limited back or side panel. I compare the earlier artwork against the current approved product information rather than assuming that the old file remains valid.

Language review is equally important. A product may be entering a new market, an existing translation may require correction, or additional language content may need to be added. New language content can change the length of text, the line breaks, the font choice, the hierarchy, and the available space for other information. I check that every language belongs to the correct SKU and market version and that the final package remains readable after the text is updated.

Regulatory content should never be repeated automatically without review. Product categories, markets, claims, symbols, warning requirements, recycling requirements, and labeling conventions can change. A legal statement that appeared in a previous file may no longer be correct or may need to be moved to a different panel. I confirm the approved current content before using the artwork for another production cycle.

I check the barcode directly before every repeat production. The barcode may change when the product size, pack count, sales unit, variant, market, or retailer requirement changes. A barcode can look visually correct in an old file while pointing to the wrong product. I also review its final placement because a structural, material, or finish change can affect whether it remains on a stable, scannable panel.

A packaging-size change requires a structural review rather than a simple artwork resize. If the carton height, width, depth, sleeve fit, mailer size, bag dimensions, or product cavity changes, the original dieline may no longer apply. The front and side panels may have different proportions, the folds may move, the safe zones may change, and the product or insert fit may need adjustment. I use the correct approved dieline for the new dimensions and reposition the artwork rather than stretching the previous file.

Material changes also require an artwork and sample review. A different paperboard grade, board thickness, corrugated material, wrapping paper, coating, lamination, or finish can affect color appearance, fold behavior, print detail, glue performance, product fit, and finishing quality. A deep brand color may look different on coated board and uncoated kraft paper. A foil detail may behave differently on a textured wrap. An insert may fit differently if the board thickness changes. I compare the proposed material against the original approved specification before treating the file as repeat-ready.

Color references should be reviewed if the material, print process, coating, or approved benchmark changes. The same digital CMYK or spot-color reference can produce a different physical appearance on another substrate or under a different finishing treatment. I confirm the intended color direction and use a proof or sample where the change may affect the brand presentation.

Finishing changes must be treated as new production instructions. Adding foil stamping, moving a Spot UV detail, removing embossing, changing varnish, introducing white ink, altering a window, or changing a perforation can affect both the artwork layers and the finished package. I update the official file rather than describing the change only in an email, message, or note. The correct production version should visibly include the revised finishing layers and structural references.

Insert changes should be reviewed with the product and outer package together. A different insert can change the product position, opening experience, visible interior, window framing, usable box depth, and product protection. A change to the window position can alter the front-panel layout, logo placement, product image, safe zones, and customer-facing hierarchy. I update both the dieline and artwork when these changes occur so that the structural and visual references remain aligned.

I manage multi-SKU and repeat-order packaging by keeping the master structure controlled, separating shared brand elements from variable product content, using traceable naming and revision records, and reviewing every relevant change before production is repeated. This allows the packaging range to remain consistent without allowing an old file to become an automatic production instruction. Each approved SKU remains connected to the correct structure, artwork, product information, market version, and production history.

Final Dieline Checklist Before Printing and Production

I use this final dieline checklist as the last production-control stage before packaging artwork is released for printing. At this point, I am no longer judging whether the design idea is attractive. I am confirming whether the approved structure, artwork, product information, colors, codes, special finishes, proof, and sample all describe the same package and can be reproduced without creating avoidable uncertainty in production.

A packaging file can look complete while still containing a hidden risk. The wrong carton revision may have been used. A window may have moved after sampling. The product may fit differently because the insert changed. A barcode may belong to an earlier SKU. A foil area may not be separated from the printed artwork. A new language version may have been added without reviewing the available panel space. I use the final checklist to connect these details before printing begins, because correcting them at the file stage is far more controlled than correcting them after the package has been printed and assembled.

The numbered review process below follows the packaging from the physical structure through the digital artwork and into the final proof and sample. I use it as one connected process rather than as thirteen isolated tasks. Every stage supports the next one, and the final approval should be made only when the entire chain is aligned.

Structure and Dimensions

I begin by confirming the exact packaging structure that will be produced. I check whether the file represents the correct folding carton, corrugated mailer, corrugated shipping box, paper bag, sleeve, paper insert, or rigid-box component. A package can have a familiar visual shape while using a different production structure, so I do not approve it merely because it resembles an earlier project or a standard online template.

I confirm the finished external dimensions because they affect shelf presentation, product packing, shipping configuration, display requirements, and the proportions of the visible artwork. I also confirm the internal dimensions because the product must fit within the real usable space after material thickness, folded flaps, inserts, dividers, trays, and protective components are considered. An outer box can measure correctly while still being too tight or too loose for the actual product.

I inspect every structural feature that affects packaging use and artwork placement. This includes top and bottom flaps, tuck flaps, dust flaps, side gussets, bottom gussets, seams, glue tabs, locking tabs, windows, handle positions, perforations, openings, overlap areas, product-support areas, and insert openings. I check whether each feature matches the intended product and the final customer experience, not only whether it is present in the flat file.

I also consider how the structure is assembled. A carton may fold and glue in one direction, while a mailer may lock through tabs and slots. A paper bag may expand through the side gussets when filled. A rigid box may use separate greyboard parts and wrapping-paper templates. I make sure the dieline reflects the actual production construction, because the structure determines where artwork remains visible, where it bends, and where it can be interrupted by seams or closures.

Dieline Version

I confirm that every person involved in the project is using the same approved dieline version. This includes the artwork designer, product manager, brand reviewer, regulatory reviewer, prepress reviewer, purchasing team, and production team. A design can be visually correct yet still be unsuitable for production if it sits on an earlier structural revision.

I check the structure name, relevant size reference, material direction, dieline revision number, and approval date. I compare these details with the final packaging specification so I know that the artwork is attached to the exact structure that will be manufactured. If the box depth, flap design, insert, window, handle, closure, or product fit changed after sampling, I confirm that the official dieline has changed as well.

I do not accept informal communication as the final structural record. An email, chat message, marked screenshot, or verbal instruction can explain a change, but it should not replace the approved structural file. If the structure changes, I update the dieline and review the artwork against the revised file. This protects the project from a situation in which the sample reflects one structure while the production artwork still reflects another.

I also confirm that the file has not been resized, stretched, redrawn, or modified independently after structural approval. The dieline is not a flexible graphic layout. It is the production reference for cuts, folds, panels, glue areas, windows, and assembly. I preserve its approved proportions and position artwork around it rather than altering the structural lines to make the design feel easier to arrange.

Panel Identification

I identify every panel according to its final assembled position. I confirm the front, back, left side, right side, top, bottom, interior panels, flaps, gussets, glue areas, overlap areas, and hidden structural sections. This gives the flat dieline a physical meaning and prevents me from placing important content where it will become concealed, folded inward, partially covered, or difficult to see.

I review the role of the front panel first because it usually carries the primary visual hierarchy. The logo, product name, product image, collection name, and key customer-facing message should remain clear in the final viewing position. I then review the back panel as the likely location for ingredients, instructions, warnings, legal information, product claims, contact details, recycling information, and barcode content. These panels should work together without overloading the front or forcing critical information into unstable areas.

The side panels, top, and bottom should be reviewed according to their real visibility. A side panel can carry supporting information, a variant name, secondary branding, or additional language content, but it may be narrow once the package is folded. A top panel may be seen during retail display, stacking, or opening. A bottom panel may be appropriate for certain reference information but should not hold a message that requires immediate visibility.

I also identify interior and hidden areas. An interior mailer-box lid can carry a message that becomes visible during unboxing. A folding-carton interior may be hidden by the product or insert. A dust flap may be visible only while the package is opened. A glue flap may disappear completely after assembly. I do not treat every flat panel as an equal artwork surface; I place content according to how the finished package will actually be viewed and used.

Artwork Orientation

I confirm that every visual and informational element appears in the correct direction after folding and assembly. The flat dieline can make top panels, bottom panels, side panels, interior panels, sleeves, and insert flaps appear rotated relative to the front panel. That rotation may be necessary in the flat file, but it must create the correct reading direction in the finished package.

I check the orientation of the logo, product name, product image, ingredient list, warnings, barcode, QR code, opening message, directional arrows, and any interior artwork. A top-panel logo should read correctly when the box is closed and viewed from above. A message inside a mailer-box lid should read correctly when the recipient opens the box. A sleeve design should face the intended direction before the sleeve is removed.

I pay special attention to artwork that crosses from one panel to another. A wraparound pattern, large illustration, border, or typography can appear continuous in the flat file but change direction at the fold. I check whether the final visual effect remains intentional after assembly and whether the key part of the artwork remains on a stable visible surface.

I verify orientation through an assembled view. A 3D structural preview can help identify obvious errors, but I use a folded mockup or blank sample where the package has complex folds, multiple opening surfaces, interior printing, or cross-panel artwork. I approve orientation according to the final physical package, not according to the direction in which the artwork appears on the artboard.

Bleed and Safe Zones

I confirm that every background intended to reach the edge of the package extends through the required bleed area. Solid colors, photographs, patterns, gradients, textures, and full-panel illustrations should not end directly at the cut line. Bleed provides additional artwork beyond the final trim boundary, helping prevent visible unprinted edges if normal die-cutting movement occurs.

I examine full-coverage backgrounds particularly carefully. A narrow light edge can become visible around a dark, saturated, or high-contrast design if the artwork stops exactly at the cut line. This can affect the perceived quality of the final package even when the print and die-cutting are otherwise acceptable. I make sure the background continues beyond the finished edge according to the confirmed production requirement.

I separately confirm that critical content remains inside the safe zone. Logos, product names, ingredients, warnings, product claims, barcodes, QR codes, fine borders, and small text should have sufficient distance from cut lines, folds, seams, glue areas, windows, perforations, and other production-sensitive features. The safe zone is not wasted space; it protects content that must remain complete, readable, and visually balanced after production.

I do not apply one universal bleed or safe-zone measurement to every package. The appropriate allowance can depend on the material, structure, finished dimensions, board thickness, printing method, die-cutting process, and design complexity. I follow the approved production dieline and relevant specification rather than relying on a generic assumption.

Folds, Glue Areas, and Seams

I review every crease, fold, glue area, and seam because these are the structural points most likely to affect the final appearance of artwork. A fold can divide a logo, bend a barcode, interrupt a product image, create a shadow across small text, or break the continuity of a border. The flat file may not show the full visual effect of the physical fold, so I review it in relation to the assembled package.

I make sure that the most important visual elements remain on stable panels wherever possible. A primary logo, product name, barcode, QR code, ingredient list, warning statement, or fine line should not sit directly across a crease unless the assembled result has been specifically verified. A broad background, abstract pattern, or forgiving texture can cross a fold more easily than precise typography or a detailed image.

Glue flaps and seams require the same attention. A folding-carton glue tab may become hidden inside the package, while a corrugated manufacturer’s joint can create a broader seam on the assembled box. I avoid placing important content across these areas because it may become interrupted, concealed, or visually misaligned. I also review any continuous graphic, border, or wraparound image to make sure the seam falls in a less sensitive location.

I confirm that finishes and surface treatments are compatible with the approved glue areas. Heavy ink coverage, lamination, foil, varnish, or other finishes may require special consideration where adhesive must bond. I follow the relevant production requirement and do not treat a glue zone as ordinary artwork space. The package must remain visually controlled and structurally reliable at the same time.

Colors and Images

I confirm the intended color setup before final approval. I check whether the artwork uses the correct CMYK process colors, spot colors, Pantone references, white ink, metallic treatments, or other defined production colors. The file should communicate the intended color direction clearly so that the artwork, proof, and sample can be reviewed against the same expectation.

I do not approve final color based only on the appearance of a monitor. Screens display RGB light, while packaging is printed using inks on a physical material. Coated paperboard, uncoated board, kraft paper, corrugated board, textured wrapping paper, lamination, and varnish can all influence the final appearance. I use the electronic file to verify the color references, but I use a proof or printed sample to assess the physical result.

I inspect every image at its final printed size. A product photograph can look sharp on screen but become soft or pixelated when enlarged across a carton, mailer, or rigid-box wrap. I check whether the effective image quality suits the final panel size, printing method, material surface, viewing distance, and design role. I do not rely on a small on-screen preview to make that decision.

I also confirm that image assets are present and current. Linked images should be available, correctly connected, and matched to the approved product version. Embedded images should remain at the intended quality. I check that a product image, face, label, or important visual detail does not disappear into a fold, seam, window, handle position, side panel, or glue area after the package is assembled.

Fonts and Regulatory Content

I confirm that the typography is stable for the approved production workflow. Fonts should be embedded or outlined where appropriate, so the final output does not depend on a missing typeface being substituted on another system. At the same time, I keep an editable master version for future content changes, because outlined text is not convenient to revise when a product name, ingredient list, claim, or language version changes.

I inspect the physical readability of product names, ingredients, instructions, warnings, claims, legal information, contact details, recycling content, barcode numbers, and country-specific language versions. I do not approve text because it is readable at a large zoom level on a monitor. I assess it at the intended final print size, on the actual panel, with the selected background, material, printing method, and coating in mind.

Small text requires particular attention. A thin typeface, tightly spaced characters, low contrast, reverse text on a dark background, or multilingual content can become difficult to read on the finished package. I check whether the text remains clear after folding and whether it avoids cut edges, creases, seams, and glue areas. I do not describe one minimum type size as correct for every package because readability depends on several physical and design factors.

I also verify the accuracy of all regulatory and market-specific content. Ingredients, warnings, product claims, language versions, country-of-origin information, and other required text must belong to the correct product and market. I treat this content as essential production information, not as leftover copy placed into an unused back-panel area.

Barcodes and QR Codes

I confirm that every barcode and QR code belongs to the correct SKU, product variant, market, product size, or selling unit. A code can be visually correct but still be wrong if it comes from an earlier version of the packaging. I compare it with the current approved product information before I approve the final artwork.

I review placement carefully. A barcode or QR code should sit on a stable, sufficiently flat, accessible panel. I keep it away from cut lines, folds, seams, glue areas, windows, perforations, handles, deep textures, highly reflective foil, and visually busy photography. I also protect the clear space around the code so nearby text, borders, graphics, or finishes do not interfere with scanning.

I check the final printed size and contrast in relation to the code’s intended use. A code can look large in a zoomed-in digital file but become too small on the actual packaging. A code can also fail if it uses low contrast, is printed over a pattern, or crosses an unstable structural surface. I assess its function as part of the finished physical package, not as a graphic element on the artboard.

I test the code from the printed sample whenever possible. Printing, coating, material texture, folding, and finishing can affect real scanning performance. I do not consider the code approved because it looks clear on screen; I consider it approved when it performs correctly on the assembled package.

Finishing Layers

I confirm that every special finish has a separate, clearly named, and distinguishable production reference. This includes foil stamping, embossing, debossing, Spot UV, varnish, white ink, window cutting, and perforation. A metallic color in the main artwork does not automatically communicate a foil instruction, and a glossy mockup effect does not automatically define a coating area.

I check foil layers to make sure the foil applies to the intended logo, text, border, pattern, or decorative detail. I confirm that it sits on the correct panel and does not extend into a fold, seam, glue area, or wrapped edge that could affect the final appearance. I also compare the foil position with the printed artwork so the two elements align in the finished package.

Embossing and debossing should be reviewed as physical effects. I confirm the exact area to be raised or recessed and assess whether the material, panel location, fold, edge, or other finish could affect the intended result. A detail that looks attractive as a flat graphic may not perform the same way if it is too close to a crease, wrapped corner, or structural seam.

I also review Spot UV, varnish, and white ink as separate instructions. Spot UV should follow the intended visual area, not a vague approximation. Varnish should be applied according to the approved finish plan. White ink should be clearly defined where it affects opacity or the appearance of colors on dark, metallic, transparent, or non-standard materials. Windows and perforations must also remain visible as structural instructions so they do not cut through essential artwork unexpectedly.

Electronic Proof

I confirm that the electronic proof reflects the final approved digital content. I compare the proof with the approved dieline and check the structure name, dimensions, panel identification, exterior and interior printing, text, images, colors, barcode, QR code, finishing layers, and revision details. I also confirm that all corrections from earlier review rounds have been incorporated into this exact version.

The electronic proof is particularly useful for checking spelling, panel placement, SKU content, language versions, color references, and special-finishing locations. I make sure that the proof does not contain old copy, missing images, incorrect product names, outdated codes, visible technical lines, or unconfirmed structural changes. It should be a clear digital representation of what is intended for production.

However, I do not mistake an electronic proof for a complete physical approval. It cannot fully show the texture of the material, board stiffness, product fit, fold behavior, glue performance, actual printed color, foil reflection, embossing depth, or barcode performance after assembly. I use it to control the digital file and then compare it with the physical sample to validate the finished package.

Physical Sample

I confirm the physical sample against the approved dieline and electronic proof. A blank structural sample allows me to check the finished dimensions, product fit, insert fit, folding sequence, opening direction, closure, panel visibility, window position, and assembly quality. I use it to understand whether the package works correctly as a physical object before printed production is finalized.

I place the actual product or a reliable representative inside the sample and assess whether it fits securely without excessive pressure or movement. I check whether the insert holds the product in the intended position, whether the product can be removed naturally, and whether the opening sequence supports the desired experience. If the package includes a window, I confirm that it frames the intended part of the product rather than exposing an empty gap, insert edge, or off-center item.

A printed sample allows me to evaluate artwork position, panel orientation, printed color, image quality, small-text readability, barcode and QR-code performance, finishing alignment, cross-panel graphics, window and handle positions, and the overall appearance after assembly. I inspect the package from the front, sides, top, bottom, interior, and opening view. I hold and open it as a customer would, rather than judging it only while it lies flat.

If the physical sample reveals a structural, visual, or functional problem, I update the official dieline and artwork files. I do not approve a structure that works only because someone remembers an informal correction. The final production record must reflect the actual package that was sampled and approved.

Final Approval

I complete final approval only when the approved dieline, artwork file, electronic proof, and physical sample are aligned. I confirm the product or SKU name, structure name, dieline revision, artwork revision, market or language version, approval date, and responsible reviewer. This creates a traceable production reference and prevents a loosely named file from becoming the source of a repeat-order mistake.

I identify the approved production benchmark clearly. The benchmark may include the final artwork file, the confirmed dieline, the electronic proof, the accepted physical sample, material reference, color expectation, finishing instructions, and relevant assembly notes. I treat these together as the controlled reference for the production run and for future repeat orders.

I also separate the approved version from earlier drafts, proofs, samples, and archived files. Previous files may be useful for history or comparison, but they should not be confused with the current production version. Clear revision control protects the project when product information, material, finishes, packaging size, or market requirements change in the future.

I use final approval as the point where the packaging becomes a reliable production instruction. The package should not only look correct in the artwork file; it should also have the right structure, product fit, content, colors, codes, finishes, proof, sample, and approval history. When all thirteen checks are complete, I can move into printing and production with a much clearer understanding of what the finished package is expected to be.

Frequently Asked Questions

I use this FAQ section to address the questions that usually arise when a packaging design moves from a visual concept into a real production file. A dieline is often misunderstood because it sits between design and manufacturing. It must support the visual identity of the package while also defining how the material will be cut, folded, glued, wrapped, filled, finished, and assembled. The answers below explain the practical decisions I make to keep the structural file and artwork aligned before printing begins.

Who Should Create the Final Packaging Dieline?

I consider the final packaging dieline to be a structural production reference, so it should be created or validated by the person or team responsible for the confirmed packaging construction. The file needs to reflect the actual finished dimensions, material type, board thickness, box style, product fit, insert requirements, window position, handle position, closure method, folding sequence, die-cutting approach, and gluing method. These elements determine whether the package can be produced and assembled consistently.

I do not regard the dieline as a purely visual design asset. A change to one structural line can affect several connected parts of the package. Moving a crease line can change the width of a side panel. Changing a cut line can alter the finished dimensions or window opening. Adjusting a glue flap can affect assembly and usable artwork space. These are structural decisions that should be confirmed through the approved packaging specification rather than changed casually in a graphic-design file.

I see the graphic designer’s role differently. A designer can place the final artwork on the approved dieline, organize the visual hierarchy, position the logo, product name, product images, ingredients, warnings, barcode, QR code, and finishing layers, and make sure the design respects the folds, cuts, safe zones, and glue areas. However, I do not recommend that a designer independently redraw structural lines, resize flaps, move crease lines, alter glue tabs, or change the package dimensions simply to create more design space.

If the artwork reveals that the structure cannot hold the required information or no longer supports the product correctly, I treat that as a structural revision. I update or request the confirmed dieline first, then reposition the artwork on the revised version. This keeps the structure, proof, sample, and final production file aligned rather than allowing an informal design adjustment to become an unrecorded production change.

Can I Use a Free Box Dieline Template for Production?

I may use a free box dieline template during an early concept stage because it can help me understand a basic carton format, test a rough front-panel layout, or discuss an initial packaging direction. A generic template can be useful for visual exploration, internal discussion, and learning how familiar box structures may be arranged in a flat file.

However, I do not use a generic online template as the final production file unless it has been checked and confirmed for the actual packaging project. A template may describe a broadly familiar carton shape but still fail to match the final finished dimensions, board thickness, flap proportions, glue method, opening direction, product fit, insert, window, die-cutting method, or assembly requirements.

Two cartons can look similar in a mockup but use different dielines in production. One may have a different tuck closure, a wider glue tab, a deeper product cavity, a different board grade, a window cutout, an auto-bottom structure, or internal product support. These differences can change the panel sizes and affect where the logo, text, barcode, image, fold, and seam will appear in the finished package.

I use generic templates as starting points only. Before final artwork approval, I move the design onto the production-approved dieline for the exact box, bag, sleeve, insert, or rigid-box component that will be manufactured. This protects the artwork from late structural changes and ensures that the final file reflects the real physical package rather than an approximation of one.

What Is the Difference Between a Dieline and a 3D Mockup?

I use a dieline as the flat technical map of the package. It shows the panels, cut lines, crease lines, glue areas, flaps, safe zones, bleed, windows, perforations, and other structural features that control how the package will be printed and assembled. It is the working reference that connects the artwork to the final production structure.

I use a 3D mockup as a visual representation of how the package may appear once it is folded and assembled. A mockup can help me evaluate the front-panel hierarchy, logo position, product image, color direction, overall proportions, and presentation from different viewing angles. It can also help explain why a top panel or interior-lid message may appear rotated in the flat dieline but become correct in the finished package.

The two files answer different questions. The dieline helps me determine where artwork can be placed and how it relates to cuts, folds, seams, glue areas, and physical panels. The mockup helps me see the intended visual result after assembly. A dieline can confirm structural placement but cannot fully show the final material texture, color appearance, or customer experience. A mockup can show the visual concept but cannot replace the exact production details required for die-cutting, creasing, folding, and gluing.

I do not use a 3D mockup as a substitute for a production dieline. A mockup can simplify structural details, hide internal flaps, use approximate proportions, or show only selected angles of the package. I use both references together: the dieline to prepare the production file and the mockup or folded sample to review how the design will be experienced in the assembled package.

Should Dieline Lines Appear in the Printed Artwork?

I normally keep dieline lines separate from printable artwork. Cut lines, crease lines, dimensions, panel labels, glue notes, perforation references, window outlines, and structural comments are technical instructions used for file preparation and production review. They help me understand where the package will be cut, folded, glued, opened, or wrapped, but they are not normally intended to become visible design elements on the finished package.

I place the dieline on a clearly named technical layer and keep it separate from the artwork layer, background layer, text layer, image layer, and special-finishing layers. I also lock the structural layer during artwork placement so it is not moved accidentally. This allows me to align the design accurately while keeping the technical reference distinct from the visible print design.

A common problem occurs when a dieline is flattened into the artwork or copied into a printable layer. A cut line can appear as an unintended colored stroke on the carton. A fold guide can run through a product image. A panel label, dimension, or technical note can remain visible in the exported production file. These errors can make a finished package look unprofessional and may require file correction or production rework.

I therefore review the final output view before approval. I make sure that the intended artwork, colors, text, images, and finishing references are included correctly and that the technical lines are handled according to the approved production workflow. The dieline remains available as a structural guide, but it does not become part of the customer-facing design.

Can I Resize a Dieline After the Artwork Is Finished?

I do not resize, stretch, or proportionally scale a confirmed dieline after the artwork has been finished unless the structure has been formally revised and approved. A dieline is not a flexible graphic canvas. Its proportions are connected to the final box size, panel widths, flap lengths, fold positions, glue areas, window openings, product fit, insert fit, and production method.

A resized dieline can create several problems at the same time. The front panel may become wider or narrower. The side panels may lose their intended proportion. A glue tab may become unsuitable for the original structure. A window may no longer frame the product correctly. The internal fit may change because board thickness and folded elements take up space differently. The final package may still look plausible in a flat file while no longer matching the approved physical construction.

Stretching a dieline is especially risky because the horizontal and vertical dimensions may change by different amounts. A carton can become wider without the flaps, insert, closure, or glue areas being redesigned appropriately. This can affect both production performance and artwork placement. A logo may move closer to a fold, a barcode may enter an unstable area, and an ingredient panel may no longer fit inside the safe zone.

If the package size changes, I use a revised approved dieline for the new structure. I can reuse the brand system, typography, photographs, illustrations, and color direction, but I reposition the artwork according to the new panel dimensions and production areas. This gives the revised package a consistent visual identity without forcing it onto a structure that has changed.

How Much Bleed Does Packaging Artwork Need?

I use bleed to protect artwork that is meant to extend to the final edge of the package. Solid background colors, photographs, patterns, gradients, textures, and full-panel illustrations normally continue beyond the cut line into the bleed area. This gives the die-cutting process extra artwork beyond the final trim boundary and reduces the risk of a visible unprinted edge.

The purpose of bleed becomes particularly clear on dark or saturated packaging. If a navy, black, deep green, red, or full-coverage image ends exactly at the cut line, even a small amount of normal cutting movement can reveal a light edge of the paperboard. The package may still be structurally correct, but its finished appearance can look less controlled than the digital artwork suggested.

I do not state that one bleed allowance is suitable for every packaging project. The final requirement can depend on the finished size, material, board thickness, packaging structure, printing process, die-cutting method, visual design, and production specification. A folding carton, corrugated mailer, paper bag, sleeve, and rigid-box wrapping template may each require different considerations.

I also keep bleed separate from the safe zone. Bleed protects edge-to-edge visual coverage, while the safe zone protects essential content. I allow the background to extend outward, but I keep logos, product names, ingredients, warnings, legal text, barcodes, QR codes, and fine borders inside the approved safe area. This prevents critical content from being too close to a cut edge, fold, seam, glue area, or opening.

What File Format Should I Use for Packaging Artwork?

I generally use editable vector-compatible artwork for packaging production because it can preserve logos, typography, line art, spot-color references, finishing areas, and other elements that need to remain sharp and controllable at final size. AI files are commonly used as master source files because they can retain vectors, layers, linked or embedded images, text, color settings, and production references. Editable PDFs can also be useful when they preserve the required artwork information correctly.

EPS files may be appropriate for individual vector assets such as logos, icons, or illustrations. I use them carefully because complex packaging artwork may require layer control, transparency, linked images, multiple finishes, and detailed production notes that are more easily managed in a complete artwork file. The exact file requirement can vary according to the production workflow, but I always confirm whether the chosen format preserves the information needed for prepress and print preparation.

I do not rely on JPEGs, screenshots, flattened mockups, or ordinary presentation PDFs as the only final artwork source. These files can show the intended visual design, but they often merge text, images, backgrounds, logos, and colors into one non-editable image. They may not contain usable vectors, editable text, separate finishing layers, linked image assets, color references, or the approved dieline.

I also check whether fonts, images, colors, and finishing references are supplied correctly with the final file. A vector file is not automatically production-ready if it contains missing links, substituted fonts, outdated assets, unconfirmed colors, or unclear layers. I treat the final format as one part of a wider file-preparation process, not as the only requirement for print readiness.

Why Does Some Artwork Appear Upside Down on a Flat Dieline?

I expect some artwork to appear upside down, sideways, or rotated in a flat dieline because the panels change direction when the package is folded and assembled. A dieline opens every part of the package onto one flat sheet for printing and die-cutting. The top panel, bottom panel, interior panel, sleeve, flap, or mailer-box lid may need a different orientation in the flat layout so that it reads correctly in the finished package.

A top-panel logo is a common example. It can look inverted relative to the front panel in the open file, yet become upright when the carton is folded, closed, and viewed from above. An interior message inside a mailer-box lid may look rotated on the artboard but become correct when the recipient opens the box. The same principle can apply to bottom panels, paper-bag gussets, sleeve panels, insert flaps, and rigid-box wrapping templates.

I do not approve orientation based only on the flat artwork view. I check how the package will be displayed, held, opened, stacked, photographed, and used. I confirm that the logo, product name, opening message, instructions, barcode, QR code, and other directional elements read correctly from the customer’s viewpoint in the assembled structure.

A 3D structural view can help identify basic orientation issues, but I use a folded mockup or blank sample for more complex packaging. This is especially useful when artwork crosses panels, when the package includes interior print, when the opening direction is important, or when the structure has several connected components. The final package, not the flat file, determines whether the orientation is correct.

Does a Rigid Box Use the Same Dieline as a Folding Carton?

I do not treat a rigid-box dieline as the same type of production file as a folding-carton dieline. A folding carton is commonly produced from one sheet of paperboard that is printed, die-cut, creased, folded, and glued into its final shape. Its dieline usually contains connected front, back, side, top, and bottom panels, along with tuck flaps, dust flaps, crease lines, and a glue tab.

A rigid box is commonly built from separate greyboard components. These components may form a lid, base, side walls, tray, shoulder, neck, drawer, book-style cover, or another premium structural arrangement. The visible exterior is often created by wrapping printed, coated, textured, or specialty paper around the greyboard parts. This means that the rigid-box artwork may use separate wrapping-paper templates rather than one connected folding-carton layout.

A rigid-box wrapping template can include exterior panels, turn-in areas, wrapped corners, interior returns, lid sections, base sections, edge allowances, and separate components for the box and insert. I do not place critical artwork too close to wrapped edges or corner turns without considering how the paper will fold around the board. A border, fine line, logo, foil element, or detailed image can behave differently on a wrapped rigid-box edge than on a flat folding-carton panel.

I review rigid-box artwork according to the final board construction, wrapping process, opening method, insert, material, and finishing plan. The lid, base, interior lid, tray, and sleeve may each need separate artwork logic. Treating a rigid box like a one-piece folding carton can lead to incorrect panel placement, hidden graphics, poor edge alignment, or finishing details that do not sit correctly after the box is wrapped and assembled.

I see a packaging dieline as the point where design decisions become production decisions. It connects the final box structure with the artwork, colors, product information, barcode, finishes, folding sequence, glue areas, and customer-facing experience. A file is not truly ready because the flat design looks polished; it is ready when the approved dieline, artwork, electronic proof, and physical sample all describe the same finished package.

Before production, I always return to the practical details that can create the greatest risk: the correct structural revision, panel identification, artwork orientation, bleed, safe zones, folds, seams, glue areas, image quality, text readability, barcode performance, special-finishing layers, and SKU control. These checks help prevent a logo from crossing a crease, a background from showing a white edge, a barcode from becoming difficult to scan, or an outdated file from being used for a repeat order. The more accurately the structure and artwork are reviewed together, the more controlled the final packaging result becomes.

If you are preparing custom paper boxes and need a packaging supplier that can support the journey from approved dieline and artwork review to sampling and stable bulk production, BorhenPack can be a practical partner. We help turn confirmed packaging specifications into paper box production with clearer structural communication, artwork coordination, material options, and repeat-order control.
